MEMO
MODEL TCM-3700
9912-001
6- 2
PART No. PART NAME Q'ty REMARKS
64 411 141 2905 WASHER SPR 4 2 SW4
65 630 000 7633 BOLT,HEX-SCT 2 M4X12
66 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
91 411 141 4107 WASHER V 5X10X1 16 FW5
92 411 141 6705 WASHER SPR 5 16 SW5
93 630 000 7770 BOLT,HEX-SCT 16 M5X20
94 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
95 411 141 3001 WASHER SPR 6 4 SW6
96 630 000 7909 BOLT,HEX-SCT 4 M6X25
117 630 076 5359 ASSY,CORD (C35-Y-SVM) 1
123 630 076 9081 CORD(C30-Y-PG) 1 739FB-01D-807
Key No.
NOTE
MEMO
MODEL TCM-3700
9912-001

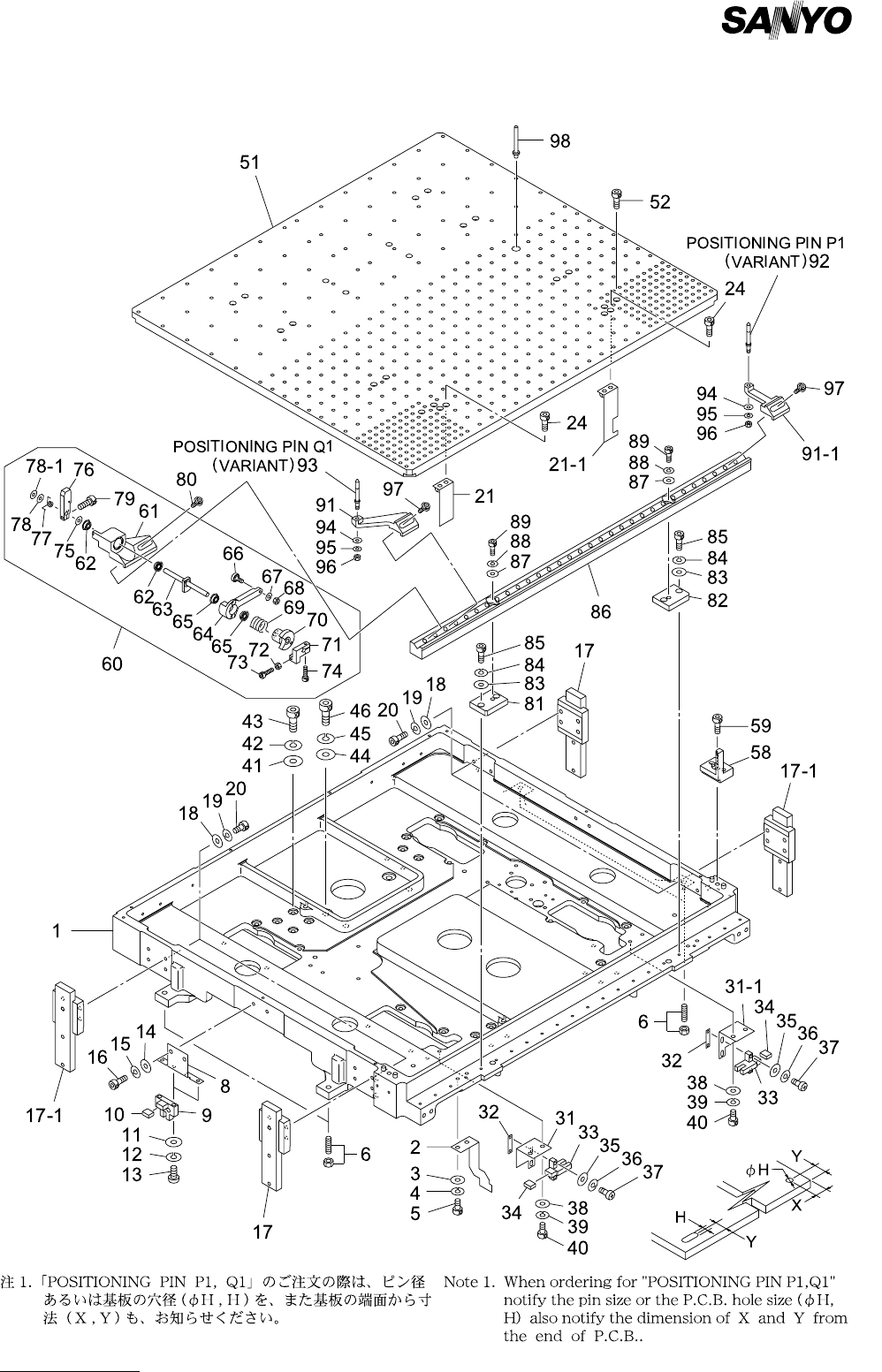

ＸＹテーブル部 XY TABLE SECTION
Fig. 6-3 バックアップテーブル Back-up Table
