MODEL TCM-3700
9912-001

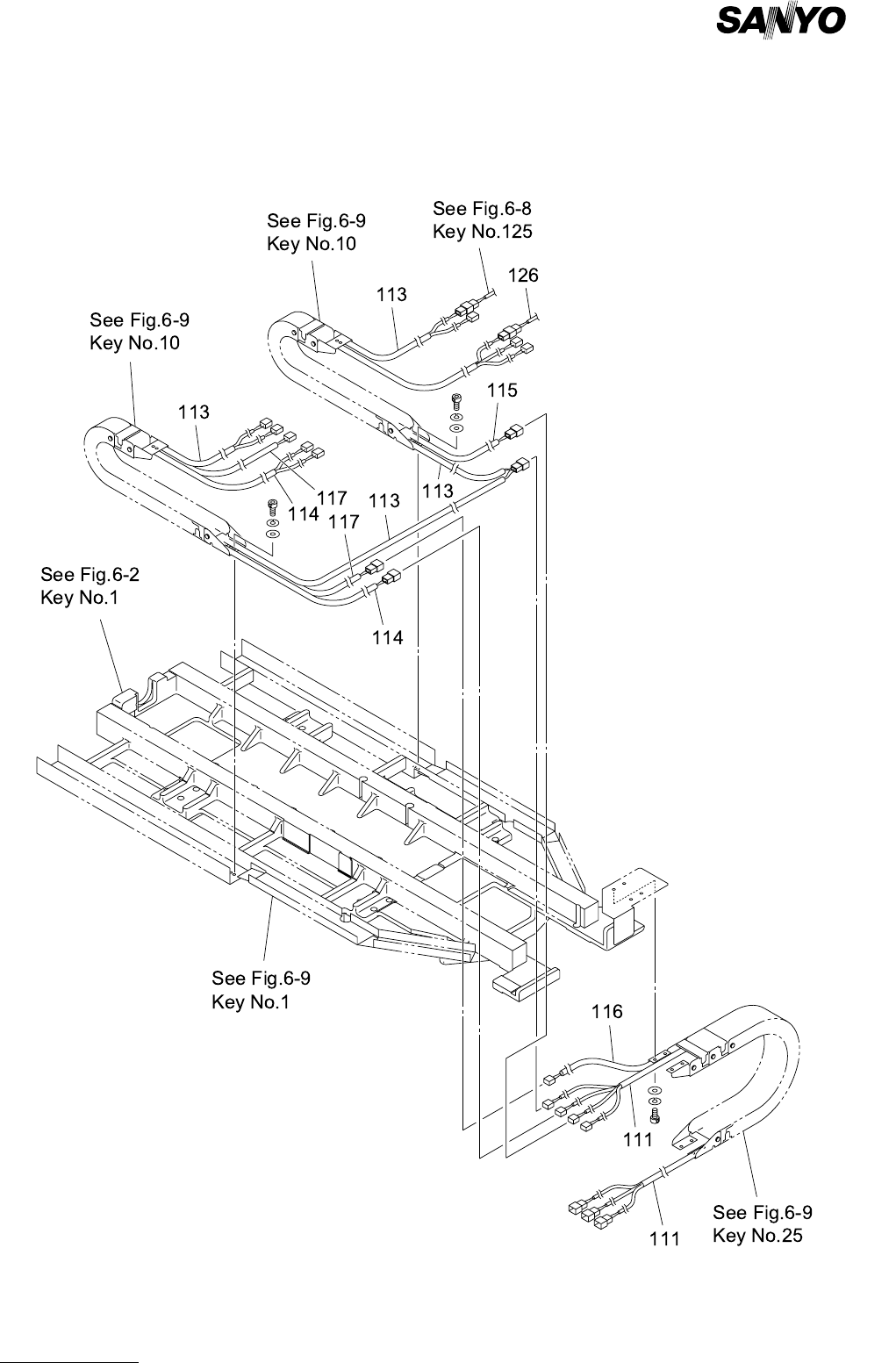

ＸＹテーブル部 XY TABLE SECTION
Fig. 6-10 ケーブル Cable
MODEL TCM-3700
9912-001
6-10
PART No. PART NAME Q'ty REMARKS
111 630 089 9610 ASSY,CORD 1
113 630 076 1924 ASSY,CORD (C35-XL-1) 1
114 630 076 1931 ASSY,CORD (C35-XL-2) 1
115 630 076 1955 ASSY,CORD (C35-XR-1) 1
116 630 076 1894 ASSY,CORD (C35-ABLA-1) 1
117 630 076 1900 ASSY,CORD (C35-ABLA-2) 1
126 630 089 9603 ASSY,CORD 1
Key No.
NOTE
MODEL TCM-3700
9912-001
Ｌコンベア部 L CONVEYOR SECTION
Fig. 7-1 コンベア Conveyor
