MODEL TCM-3700 9912-001 R コンベア部 R CONVEYOR SECTION Fig. 8-1 コンベア Conveyor
MODEL TCM-3700
9912-001
7- 4
PART No. PART NAME Q'ty REMARKS
1 630 064 2131 PLATE 4 739G--01B-033
1 -1 630 059 2412 BRACKET(PHOTO R) 2 739G--01B-016
1 -2 630 059 2405 BRACKET(PHOTO L) 1 739G--01B-039
1 -3 630 058 8705 BRACKET(PHOTO R) 1 739G--01B-040
2 630 060 6973 SENSOR,PHOTO 4 739G--01H-026
3 -1 411 119 1909 WASHER V 3X7X0.5 16 FW3 F
3 -2 411 086 4408 WASHER SPR 3 16 SW3 F
3 -3 411 162 1604 SCR PAN 3X20 8 M3X20 PAN
3 -4 411 054 6809 NUT HEX 3 8 M3 F
6 411 141 4008 WASHER V 4X9X0.8 8 FW4
7 411 141 2905 WASHER SPR 4 8 SW4
8 630 000 7619 BOLT,HEX-SCT 8 M4X8
9 -1 411 141 4008 WASHER V 4X9X0.8 8 FW4
9 -2 411 141 2905 WASHER SPR 4 8 SW4
9 -3 630 000 7657 BOLT,HEX-SCT 8 M4X16
10 630 069 2938 NUT 1 739G--01B-063
11 630 075 6234 LEVER 1 739G--01B-015
12 630 001 0220 WASHER 1 739G--01H-027
13 630 000 7763 BOLT,HEX-SCT 1 M5X16
14 630 069 2938 NUT 1 739G--01B-063
15 411 054 6809 NUT HEX 3 1 M3 F
16 411 040 6202 SCR PAN 3X10 1 M3X10 PAN
17 411 054 8506 NUT HEX 4 1 M4 F
18 411 162 1505 SCR PAN 4X20 1 M4X20 PAN
19 630 001 8103 SPRING,TENSION 1 739G--01H-028
21 630 067 2589 BRACKET(CYL) 1 739G--01B-026
22 630 060 6980 ROTARY ACTUATOR 1 739G--01H-034
23 630 058 8712 LEVER 1 739G--01B-027
24 630 057 7372 LEVER 1 739G--01B-028
25 411 141 4008 WASHER V 4X9X0.8 2 FW4
26 411 141 2905 WASHER SPR 4 2 SW4
27 630 000 7626 BOLT,HEX-SCT 2 M4X10
28 411 141 4008 WASHER V 4X9X0.8 1 FW4
29 411 141 2905 WASHER SPR 4 1 SW4
30 630 000 7664 BOLT,HEX-SCT 1 M4X20
31 411 141 4008 WASHER V 4X9X0.8 2 FW4
32 411 141 2905 WASHER SPR 4 2 SW4
33 630 000 7626 BOLT,HEX-SCT 2 M4X10
34 411 141 4107 WASHER V 5X10X1 2 FW5
35 411 141 6705 WASHER SPR 5 2 SW5
36 630 000 7749 BOLT,HEX-SCT 2 M5X10
Key No.
NOTE
MODEL TCM-3700
9912-001

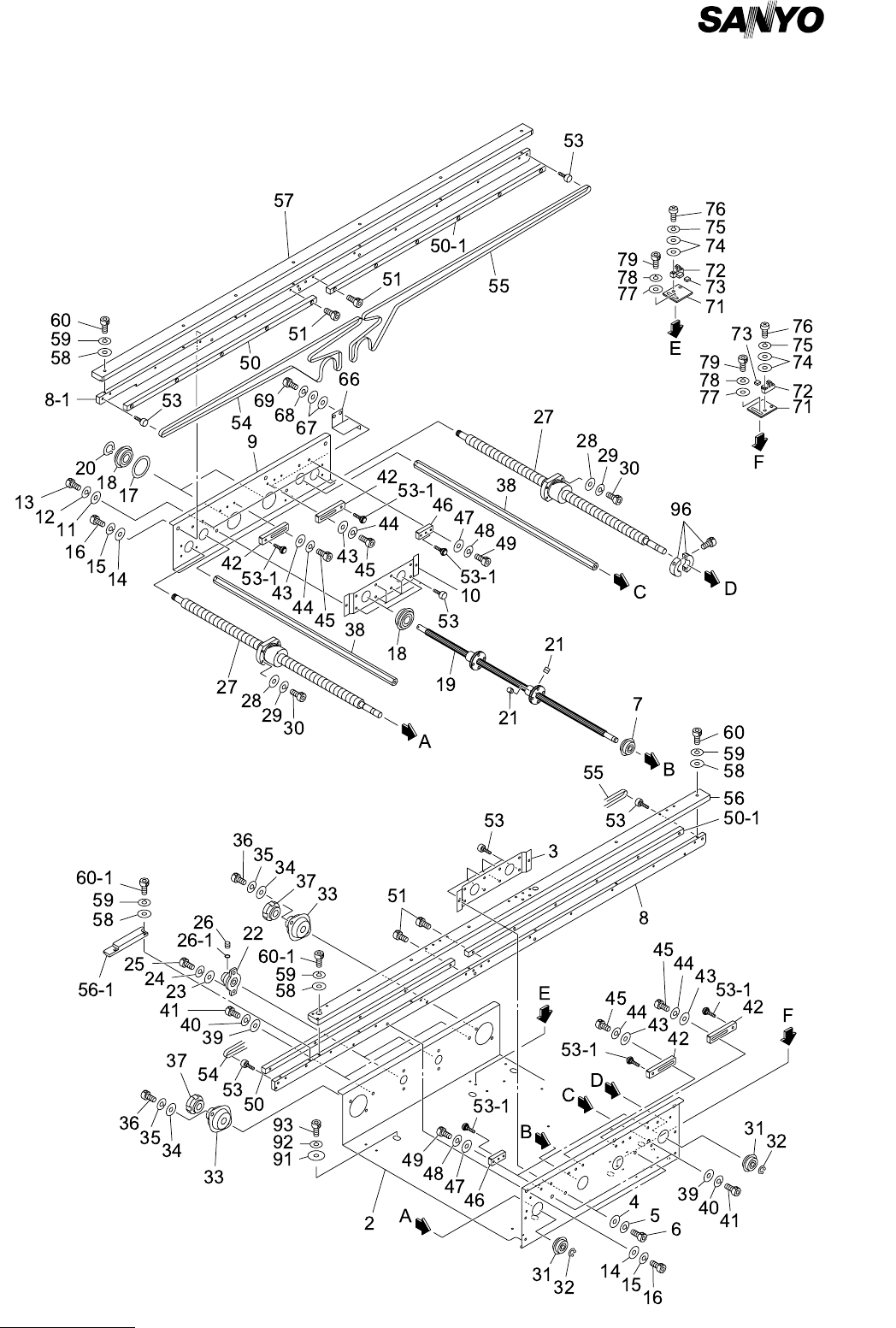

R コンベア部 R CONVEYOR SECTION
Fig. 8-1 コンベア Conveyor
MODEL TCM-3700
9912-001
8- 1
PART No. PART NAME Q'ty REMARKS
2 630 084 4481 BASE(CONVEYOR R) 1 739H--01B-001
3 630 075 6395 PLATE,LOCATE 1 739H--01B-004
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7749 BOLT,HEX-SCT 2 M5X10
7 630 001 1548 BEARING,RADIAL 2 739H--01H-022
8 630 084 4504 PLATE(MAE) 1 739H--01B-012
8 -1 630 084 4498 PLATE(OKU) 1 739H--01B-011
9 630 077 4764 PLATE,LOCATE(R) 1 739H--01B-003
10 630 075 6166 PLATE,LOCATE 1 739H--01B-006
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
15 411 141 3001 WASHER SPR 6 6 SW6
16 630 000 7886 BOLT,HEX-SCT 6 M6X16
17 630 030 5913 COLLAR 2 739H--01B-007
18 630 001 1531 BEARING,RADIAL 4 739H--01H-021
19 630 084 1909 GUIDE,LINEAR 2 739H--01H-024
20 411 000 7805 RING C 20 2 739H--01H-023
21 630 000 8883 SET SCREW 2 M3X4 SET
22 630 008 5303 BEARING,UNIT 2 739H--01H-020
23 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
24 411 141 3001 WASHER SPR 6 4 SW6
25 630 000 7879 BOLT,HEX-SCT 4 M6X12
26 630 000 8920 SET SCREW 2 M4X6 SET
26 -1 630 053 5419 COLLAR 2 739H--01B-025
27 630 084 1916 BALL SCREW 2 739H--01H-010
28 411 141 4008 WASHER V 4X9X0.8 8 FW4
29 411 141 2905 WASHER SPR 4 8 SW4
30 630 000 7657 BOLT,HEX-SCT 8 M4X16
31 630 001 1432 BEARING,RADIAL 2 739H--01H-009
32 411 000 7300 RING C 12 2 739H--01H-004
33 630 031 0566 BEARING,UNIT 2 739H--01H-012
34 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
35 411 141 3001 WASHER SPR 6 4 SW6
36 630 000 7879 BOLT,HEX-SCT 4 M6X12
37 630 031 0573 NUT 2 739H--01H-013
38 630 084 4399 STAY 2 739H--01B-008
39 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
40 411 141 3001 WASHER SPR 6 4 SW6
41 630 000 7886 BOLT,HEX-SCT 4 M6X16
42 630 075 6159 PLATE 4 739H--01B-005
43 411 141 4107 WASHER V 5X10X1 8 FW5
44 411 141 6705 WASHER SPR 5 8 SW5
45 630 000 7763 BOLT,HEX-SCT 8 M5X16
46 630 075 6302 SPACER 4 739H--01B-056
47 411 141 4008 WASHER V 4X9X0.8 8 FW4
48 411 141 2905 WASHER SPR 4 8 SW4
49 630 000 7633 BOLT,HEX-SCT 8 M4X12
Key No.
NOTE
