MODEL TCM-3700 9912-001 10- 2 PART No. PART NAME Q'ty REMARK S 1 630 085 4442 COV ER(RBR) 1 739R--01B-121 2 411 113 9109 SCR T RS 5X10 5 M5X 10 TRS 8 630 003 8033 PIPE FIT TINGS 1 9 630 008 0285 PIPE FIT TINGS 1 10 …
MODEL TCM-3700
9912-001
空圧制御部 PNEUMATIC SECTION
Fig.10-2 エアポート配管 Air Port Piping
MODEL TCM-3700
9912-001
10- 2
PART No. PART NAME Q'ty REMARKS
1 630 085 4442 COVER(RBR) 1 739R--01B-121
2 411 113 9109 SCR TRS 5X10 5 M5X10 TRS
8 630 003 8033 PIPE FITTINGS 1
9 630 008 0285 PIPE FITTINGS 1
10 630 003 7388 PIPE FITTINGS 1
11 630 003 8231 PIPE FITTINGS 2 739L--01H-010
12 630 003 8224 PIPE FITTINGS 7 739L--01H-009
13 630 003 8248 PIPE FITTINGS 2 739L--01H-011
14 630 003 7814 PIPE FITTINGS 3
15 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
16 411 141 3001 WASHER SPR 6 4 SW6
17 630 000 7893 BOLT,HEX-SCT 4 M6X20
18 630 053 4917 MECH PARTS 1 739L--01H-092
50 630 055 2515 AIR LINE EQPT 1 739L--01H-008
51 630 046 7963 PIPE FITTINGS 1
52 630 077 7918 AIR LINE EQPT 1
52 -1 630 062 4526 AIR LINE EQPT 1
53 630 043 8031 AIR LINE EQPT 5
54 630 046 8014 SWITCH,PRESSURE 1
55 630 054 9546 PIPE FITTINGS 1
56 630 046 8007 AIR LINE EQPT 2
57 630 046 7970 PIPE FITTINGS 1
58 630 043 8017 AIR CLEAN EQPT 1
58 -1 630 062 4533 AIR LINE EQPT 1
59 630 043 8024 AIR CLEAN EQPT 1
59 -1 630 062 4540 AIR LINE EQPT 1
60 630 003 8187 PIPE FITTINGS 1
61 630 061 4893 VALVE 1
62 630 003 8125 PIPE FITTINGS 1
Key No.
NOTE
MODEL TCM-3700
9912-001
空圧制御部 PNEUMATIC SECTION

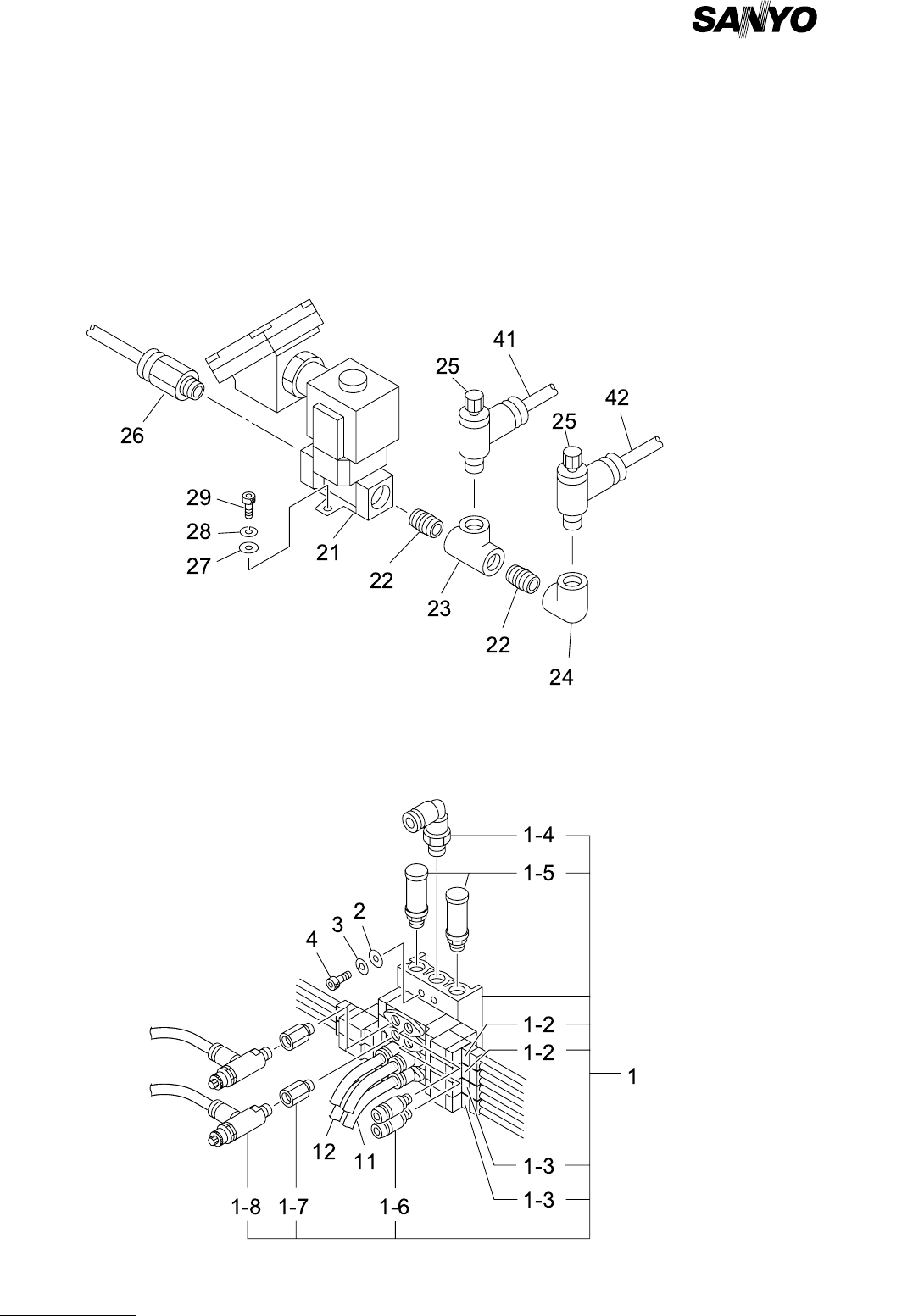

Fig.10-3 エア配管 Air Piping
