MODEL TCM-3700 9912-001 電気制御部 ELECTRICAL SECTION Fig.1 1-1 一次電源 Power Supply-Primary
MODEL TCM-3700
9912-001
10- 3
PART No. PART NAME Q'ty REMARKS
1 630 064 2087 SOLENOID VALVE 1 739F--01H-030
1 -2 630 081 3609 SOLENOID VALVE 2
1 -3 630 081 3593 SOLENOID VALVE 2
1 -4 630 052 1993 PIPE FITTINGS 1
1 -5 630 003 6541 AIR LINE EQPT 2
1 -6 630 040 4067 PIPE FITTINGS 2
1 -7 630 003 8293 PIPE FITTINGS 2
1 -8 630 065 7296 AIR LINE EQPT 2
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 739L--01H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 739L--01H-015
26 630 031 8579 PIPE FITTINGS 1 739L--01H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
Key No.
NOTE
MODEL TCM-3700
9912-001

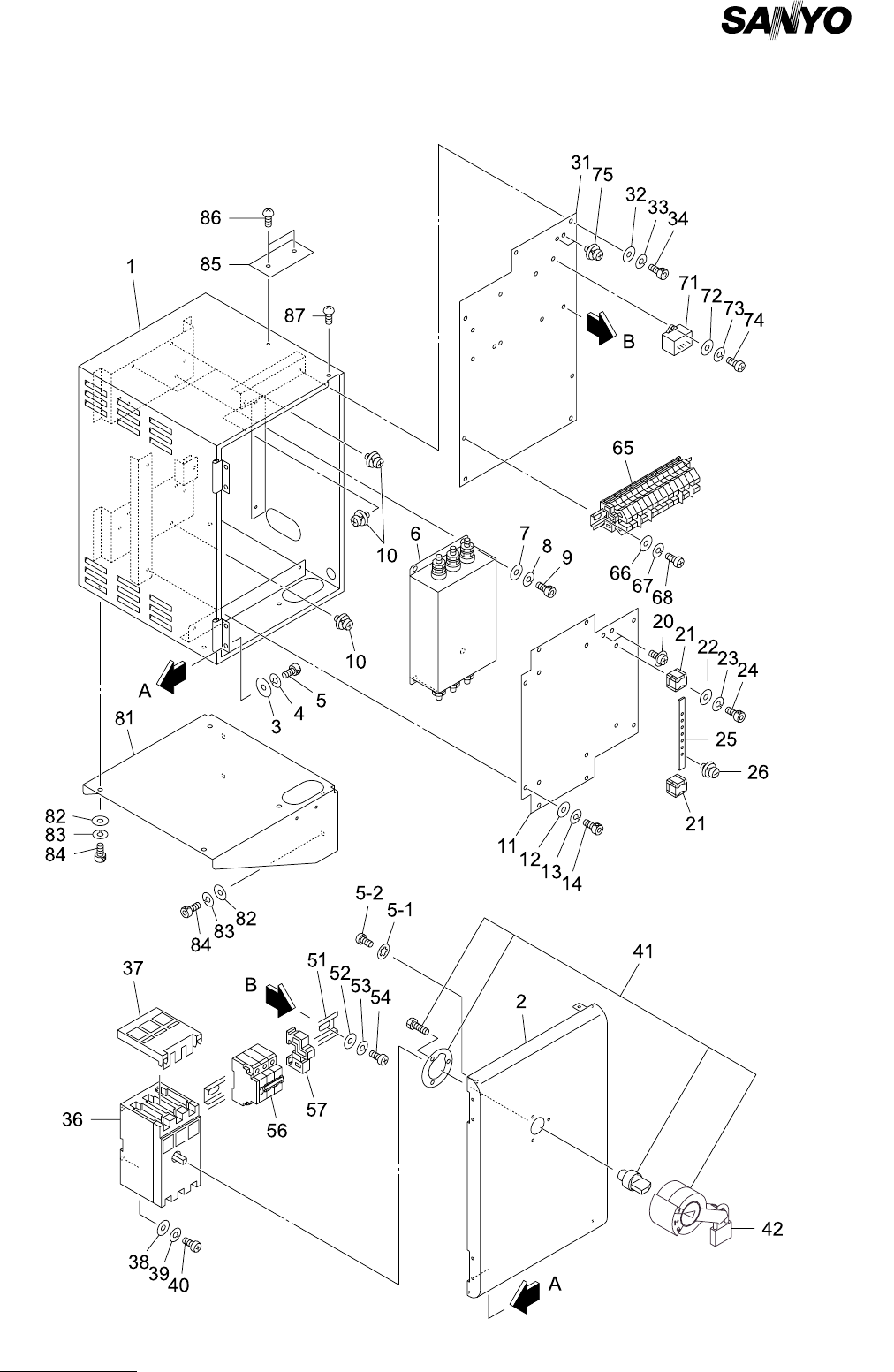

電気制御部 ELECTRICAL SECTION
Fig.11-1 一次電源 Power Supply-Primary
MODEL TCM-3700
9912-001
11- 1
PART No. PART NAME Q'ty REMARKS
1 630 085 6996 BOX 1 739BB-01V-001
2 630 085 6989 COVER 1 739BB-01V-002
3 630 001 0220 WASHER 3 BW5
4 411 141 6705 WASHER SPR 5 3 SW5
5 630 000 7756 BOLT,HEX-SCT 3 M5X12
5 -1 411 168 4104 WASHER IN TW 6 1
5 -2 411 113 2803 SCR PAN 5X8 1 M5X8 PAN
6 630 053 0506 FILTER,NOISE 1 739BB-01D-014
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7756 BOLT,HEX-SCT 4 M5X12
10 411 036 8609 SCR PAN+SW+W 5X12 4
11 630 057 7952 PANEL 1 739BB-01V-003
12 411 141 4107 WASHER V 5X10X1 4 FW5
13 411 141 6705 WASHER SPR 5 4 SW5
14 630 000 7756 BOLT,HEX-SCT 4 M5X12
20 411 036 8609 SCR PAN+SW+W 5X12 2
21 630 051 5763 WIRE PARTS 2
22 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
23 411 008 1706 WASHER SPR 4 2 SW4 F
24 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
26 411 036 8609 SCR PAN+SW+W 5X12 10
31 630 059 8049 PANEL 1 739BB-01V-004
32 411 141 4107 WASHER V 5X10X1 5 FW5
33 411 141 6705 WASHER SPR 5 5 SW5
34 630 000 7756 BOLT,HEX-SCT 5 M5X12
36 630 057 3725 BREAKER 1 739BB-01D-002
37 630 049 1241 COVER 1 739BB-01D-003
38 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
39 411 008 1706 WASHER SPR 4 3 SW4 F
40 630 000 9286 MACHINE SCREW 3 M4X50 PAN
41 630 049 1234 HANDLE 1 739BB-01D-004
42 630 054 9676 MECH PARTS 1 739S--01D-009
52 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
53 411 008 1706 WASHER SPR 4 2 SW4 F
54 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
56 630 088 9543 CIRCUIT PROTECTOR 1 739BB-01D-010
57 630 049 3672 BRACKET,WIRING 1
65 630 057 8508 TERMINAL 1 739BB-01D-001
66 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
67 411 008 1706 WASHER SPR 4 2 SW4 F
68 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
71 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 739BB-01D-011
72 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
73 411 008 1706 WASHER SPR 4 1 SW4 F
74 411 043 5004 SCR PAN 4X8 1 M4X8 PAN
75 411 036 8609 SCR PAN+SW+W 5X12 2
81 630 057 7976 BRACKET 1 739BB-01V-005
82 411 141 4107 WASHER V 5X10X1 8 FW5
83 411 141 6705 WASHER SPR 5 8 SW5
Key No.
NOTE
