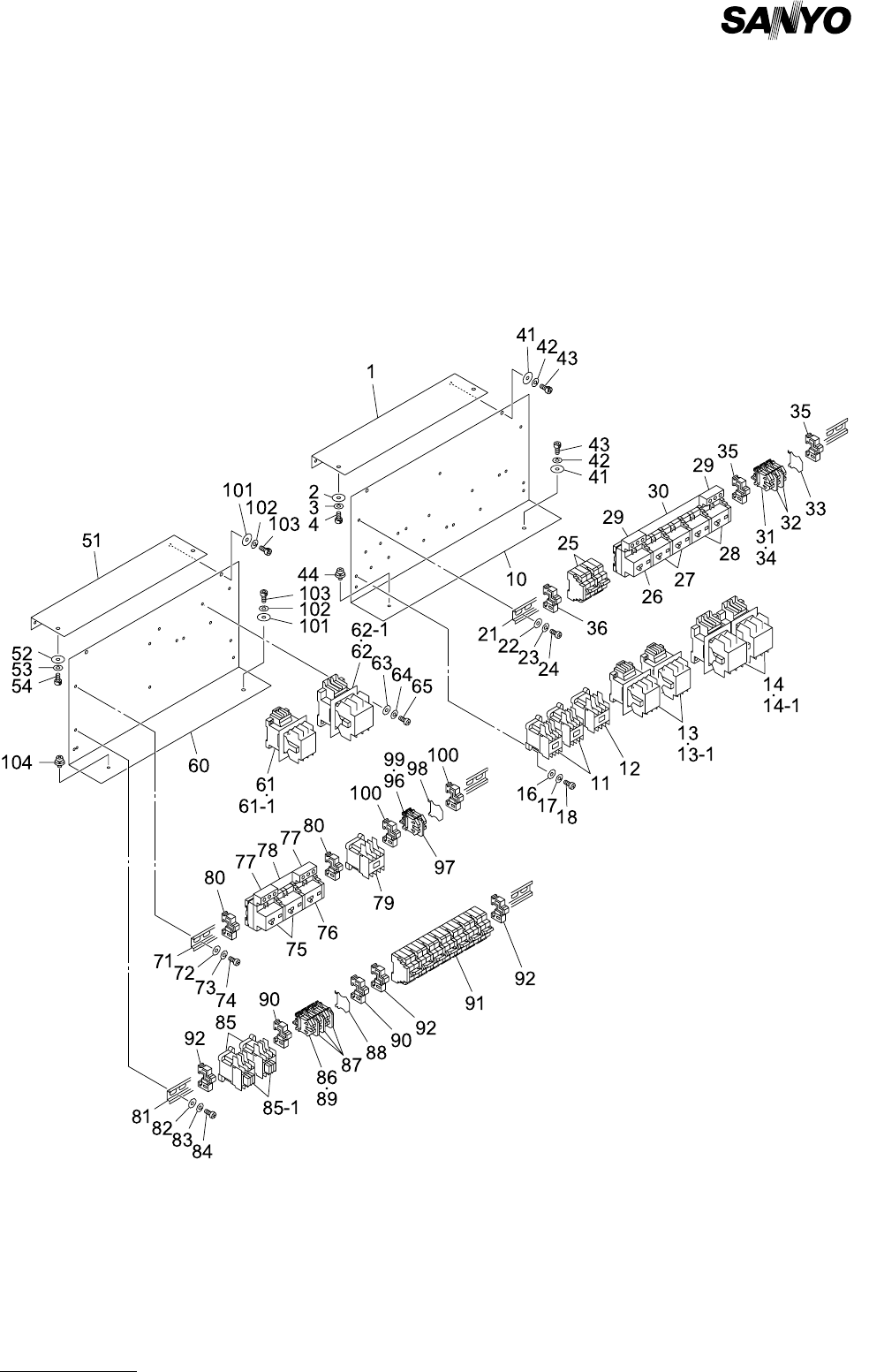

MODEL TCM-3700 9912-001 電気制御部 ELECTRICAL SECTION Fig.1 1-2 200V 電源 Power Supply-200V
MEMO
MODEL TCM-3700
9912-001
電気制御部 ELECTRICAL SECTION
Fig.11-2 200V 電源 Power Supply-200V
MODEL TCM-3700
9912-001
11- 2
PART No. PART NAME Q'ty REMARKS
1 630 056 1210 SUPPORT 1 739BC-01V-002
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7756 BOLT,HEX-SCT 2 M5X12
10 630 087 6116 PANEL 1 739BC-01V-001
11 630 053 8618 EM-CONTACTOR 2 739BC-01D-004
12 630 053 8601 EM-CONTACTOR 1 739BC-01D-062
13 630 049 0749 EM-CONTACTOR 2 739BC-01D-005
13 -1 630 049 2132 COVER 2 739BC-01D-051
14 630 049 0763 EM-CONTACTOR 2 739BC-01D-012
14 -1 630 049 2149 COVER 2 739BC-01D-050
16 411 119 2104 WASHER V 4X9X0.8 14 FW4 F
17 411 008 1706 WASHER SPR 4 14 SW4 F
18 411 042 3001 SCR PAN 4X10 14 M4X10 PAN
22 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
23 411 008 1706 WASHER SPR 4 3 SW4 F
24 411 043 5004 SCR PAN 4X8 3 M4X8 PAN
25 630 088 9499 CIRCUIT PROTECTOR 2 739BC-01D-044
26 630 067 0615 CIRCUIT PROTECTOR 1 739BC-01D-045
27 630 067 3227 CIRCUIT PROTECTOR 2 739BC-01D-042
28 630 074 0196 CIRCUIT PROTECTOR 2 739BC-01D-043
29 630 068 8894 TERMINAL 2 739BC-01D-055
30 630 074 8369 WIRE PARTS 1 739BC-01D-054
31 630 049 3696 TERMINAL 6 739BC-01D-021
32 630 049 3757 ACCESSORY,WIRING 2 739BC-01D-025
33 630 049 3733 ACCESSORY,WIRING 1 739BC-01D-023
35 630 049 3672 BRACKET,WIRING 2 739BC-01D-026
36 630 049 3672 BRACKET,WIRING 1 739BC-01D-026
41 630 001 0220 WASHER 3 BW5
42 411 141 6705 WASHER SPR 5 3 SW5
43 630 000 7756 BOLT,HEX-SCT 3 M5X12
44 411 036 8609 SCR PAN+SW+W 5X12 1
51 630 056 1210 SUPPORT 1 739BC-01V-002
52 630 001 0220 WASHER 2 BW5
53 411 141 6705 WASHER SPR 5 2 SW5
54 630 000 7756 BOLT,HEX-SCT 2 M5X12
60 630 086 8326 PANEL 1 739BC-01V-003
61 630 049 0749 EM-CONTACTOR 1 739BC-01D-005
61 -1 630 049 2132 COVER 1 739BC-01D-051
62 630 000 3581 EM-CONTACTOR 1 739BC-01D-052
62 -1 630 049 2149 COVER 1 739BC-01D-050
63 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
64 411 008 1706 WASHER SPR 4 4 SW4 F
65 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
72 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
73 411 008 1706 WASHER SPR 4 2 SW4 F
74 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
75 630 069 5915 CIRCUIT PROTECTOR 2 739BC-01D-041
76 630 067 3227 CIRCUIT PROTECTOR 1 739BC-01D-042
77 630 068 8894 TERMINAL 2 739BC-01D-055
