MODEL TCM-3700
9912-001
電気制御部 ELECTRICAL SECTION

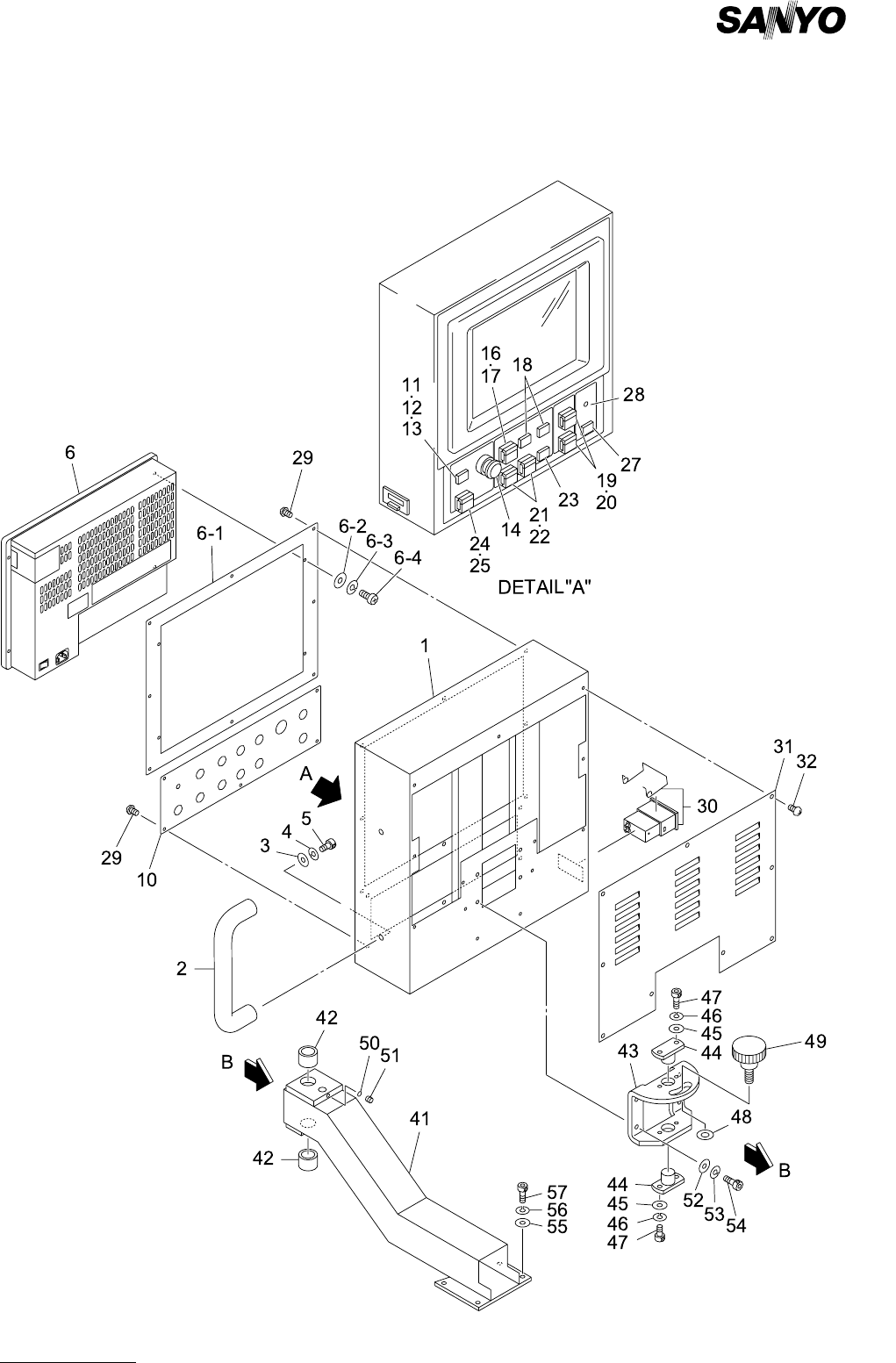

Fig.11-11 後面操作パネル Rear Operation Panel
MODEL TCM-3700
9912-001
11-11
PART No. PART NAME Q'ty REMARKS
1 630 085 7535 BOX 1 739DD-01V-001
2 630 051 6173 HANDLE 1 739DD-01D-018
3 411 141 4503 WASHER V 8X17X1.6 2 FW8
4 411 141 3100 WASHER SPR 8 2 SW8
5 630 000 8005 BOLT,HEX-SCT 2 M8X16
6 630 086 8395 UNIT,DISPLAY 1 739DD-01D-014
6 -1 630 085 7580 PANEL 1 739DD-01V-008
6 -2 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
6 -3 411 086 4408 WASHER SPR 3 4 SW3 F
6 -4 411 040 6202 SCR PAN 3X10 4 M3X10 PAN
7 411 140 8304 SCR BIN 4X10 8 M4X10 BIN
10 630 058 5728 PANEL 1 739DD-01V-002
11 630 033 4609 SWITCH,BUTTON 1 739DD-01D-001
12 630 033 4586 DISPLAY ELEMENT 1 739DD-01D-002
13 630 033 4593 ACCESSORY,SW 1 739DD-01D-003
14 630 066 7042 SWITCH,BUTTON 1 739DD-01D-004
16 630 000 2713 SWITCH,BUTTON 1 739DD-01D-006
17 630 000 0382 ACCESSORY,SW 1 739DD-01D-009
18 630 000 2515 SWITCH,BUTTON 2 739DD-01D-005
19 630 000 2713 SWITCH,BUTTON 2 739DD-01D-006
20 630 000 0382 ACCESSORY,SW 2 739DD-01D-009
21 630 000 2508 SWITCH,BUTTON 2 739DD-01D-012
22 630 000 0382 ACCESSORY,SW 2 739DD-01D-009
23 630 007 6066 SWITCH,BUTTON 1 739DD-01D-007
24 630 007 6066 SWITCH,BUTTON 1 739DD-01D-007
25 630 000 0382 ACCESSORY,SW 1 739DD-01D-009
27 630 000 2744 SWITCH,BUTTON 1 739DD-01D-008
28 407 035 4704 LED SLP-721F 1 739DD-01D-011
29 411 140 8304 SCR BIN 4X10 5 M4X10 BIN
30 630 000 5059 COUNTER 1 739DD-01D-013
31 630 085 7566 COVER 1 739DD-01V-006
32 411 113 9109 SCR TRS 5X10 9 M5X10 TRS
41 630 057 8010 SUPPORT 1 739DD-01V-004
42 630 051 6180 BUSH,BEARING 2 739DD-01D-015
43 630 052 3041 BRACKET 1 739DD-01V-003
44 630 051 5923 PIN,LOCATE 2 739DD-01V-005
45 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
46 411 141 3001 WASHER SPR 6 4 SW6
47 630 000 7886 BOLT,HEX-SCT 4 M6X16
48 630 051 6166 MECH PARTS(DRYMET WASHER) 1 739DD-01D-016
49 630 051 6159 MECH PARTS(7LOBE KNOB) 1 739DD-01D-017
50 630 041 6770 COLLAR 1 739DD-01V-007
51 630 000 8944 SET SCREW 1 M5X6 SET
52 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
53 411 141 3001 WASHER SPR 6 4 SW6
54 630 000 7886 BOLT,HEX-SCT 4 M6X16
55 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
56 411 141 3001 WASHER SPR 6 4 SW6
57 630 000 7893 BOLT,HEX-SCT 4 M6X20
Key No.
NOTE
MODEL TCM-3700
9912-001
電気制御部 ELECTRICAL SECTION

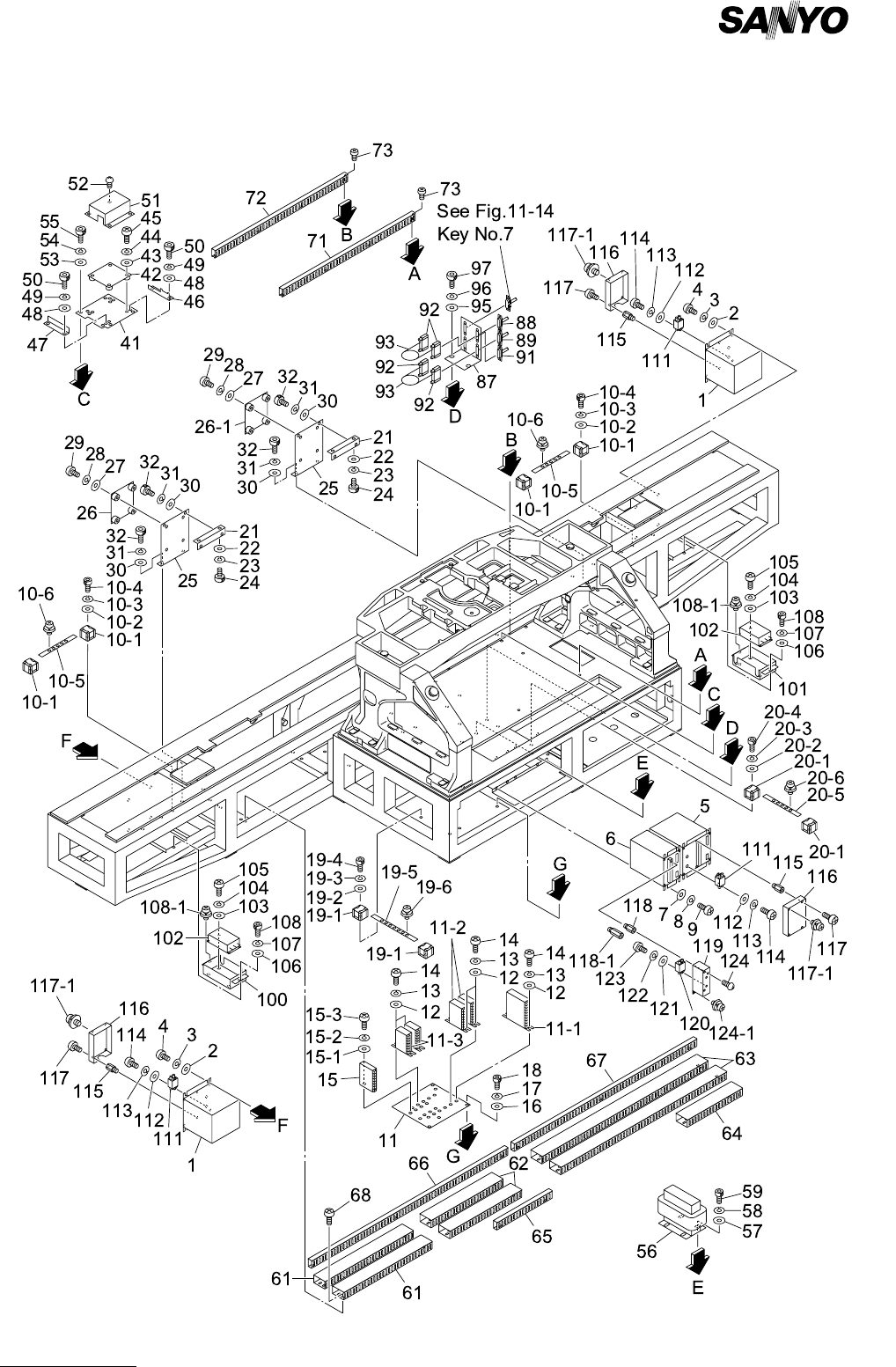

Fig.11-12 機械廻り 1 Miscellaneous Parts-1
