MODEL TCM-3700 9912-001 カバー部 COVER SECTION Fig.12-4 上部カバー Upper Cover
MEMO
MODEL TCM-3700
9912-001
カバー部 COVER SECTION

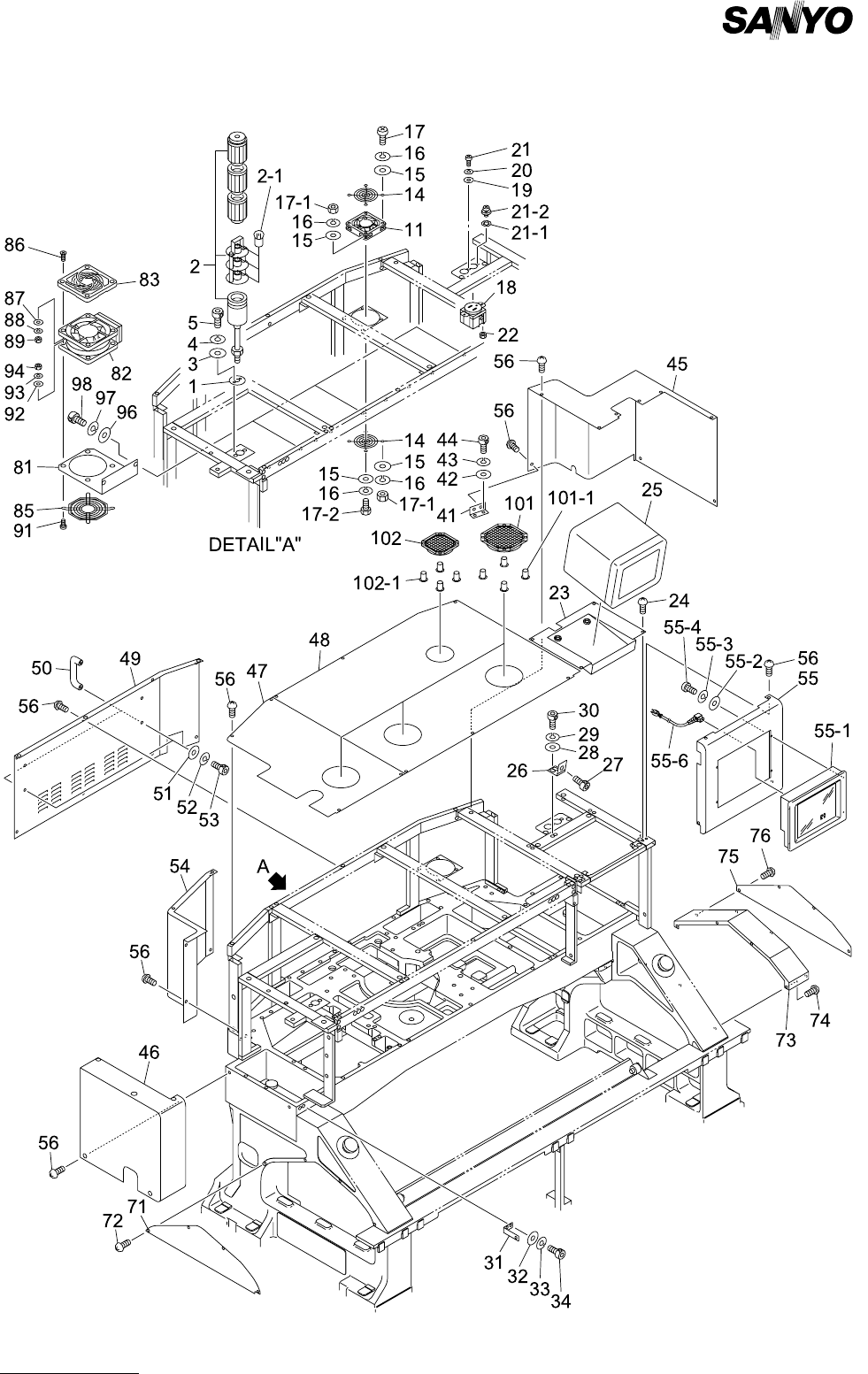

Fig.12-4 上部カバー Upper Cover
MODEL TCM-3700
9912-001
12- 4
PART No. PART NAME Q'ty REMARKS
1 630 035 2658 BRACKET 1 739FB-01D-077
2 630 056 2125 PILOT LAMP 1 739FB-01D-040
2 -1 630 000 1983 LAMP 3
3 411 141 4107 WASHER V 5X10X1 2 FW5
4 411 141 6705 WASHER SPR 5 2 SW5
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
11 630 062 8258 MOTOR,DC 1 739FB-01D-069
14 630 049 1074 ACCESSORY,MOT-M 2 739FB-01D-300
15 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
16 411 008 1706 WASHER SPR 4 8 SW4 F
17 411 161 9007 SCR PAN 4X35 2 M4X35 PAN
17 -1 411 054 8506 NUT HEX 4 4 M4 F
17 -2 411 140 4702 BOLT HEX 4X10 2 M4X10 HEX
18 630 000 4243 SOCKET 1 739DB-01D-006
19 411 119 1909 WASHER V 3X7X0.5 1 FW3 F
20 411 086 4408 WASHER SPR 3 1 SW3 F
21 411 040 7803 SCR PAN 3X12 1 M3X12 PAN
21 -1 411 086 9809 WASHER IN TW 3 1
21 -2 411 114 7005 SCR PAN+SW+W 3X8 1
22 411 054 6809 NUT HEX 3 2 M3 F
23 630 052 6165 COVER 1 739R--01B-025
24 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
25 630 045 8060 UNIT,DISPLAY 1 739DB-01D-001
26 630 052 7629 BRACKET 1 739R--01B-024
27 630 000 7497 BOLT,HEX-SCT 1 M3X4
28 411 141 4107 WASHER V 5X10X1 2 FW5
29 411 141 6705 WASHER SPR 5 2 SW5
30 630 000 7749 BOLT,HEX-SCT 2 M5X10
31 630 064 9635 BRACKET 1 739R--01B-071
32 411 141 4107 WASHER V 5X10X1 2 FW5
33 411 141 6705 WASHER SPR 5 2 SW5
34 630 000 7756 BOLT,HEX-SCT 2 M5X12
41 630 051 2557 BRACKET 1 739R--01B-030
42 411 141 4107 WASHER V 5X10X1 2 FW5
43 411 141 6705 WASHER SPR 5 2 SW5
44 630 000 7749 BOLT,HEX-SCT 2 M5X10
45 630 075 8665 COVER 1 739R--01B-035
46 630 064 8645 COVER 1 739R--01B-031
47 630 075 8092 COVER 1 739R--01B-032
48 630 075 8108 COVER 1 739R--01B-033
49 630 058 0488 COVER 1 739R--01B-037
50 630 003 5087 HANDLE 2 739R--01H-008
51 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
52 411 141 3001 WASHER SPR 6 4 SW6
53 630 000 7862 BOLT,HEX-SCT 4 M6X10
54 630 075 8689 COVER 1 739R--01B-038
55 630 085 4404 COVER 1 739R--01B-036
55 -1 630 086 8395 UNIT,DISPLAY 1 740DB-01D-002
55 -2 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
55 -3 411 008 1706 WASHER SPR 4 4 SW4 F
Key No.
NOTE
