後面カバー部 REAR COVER SECTION

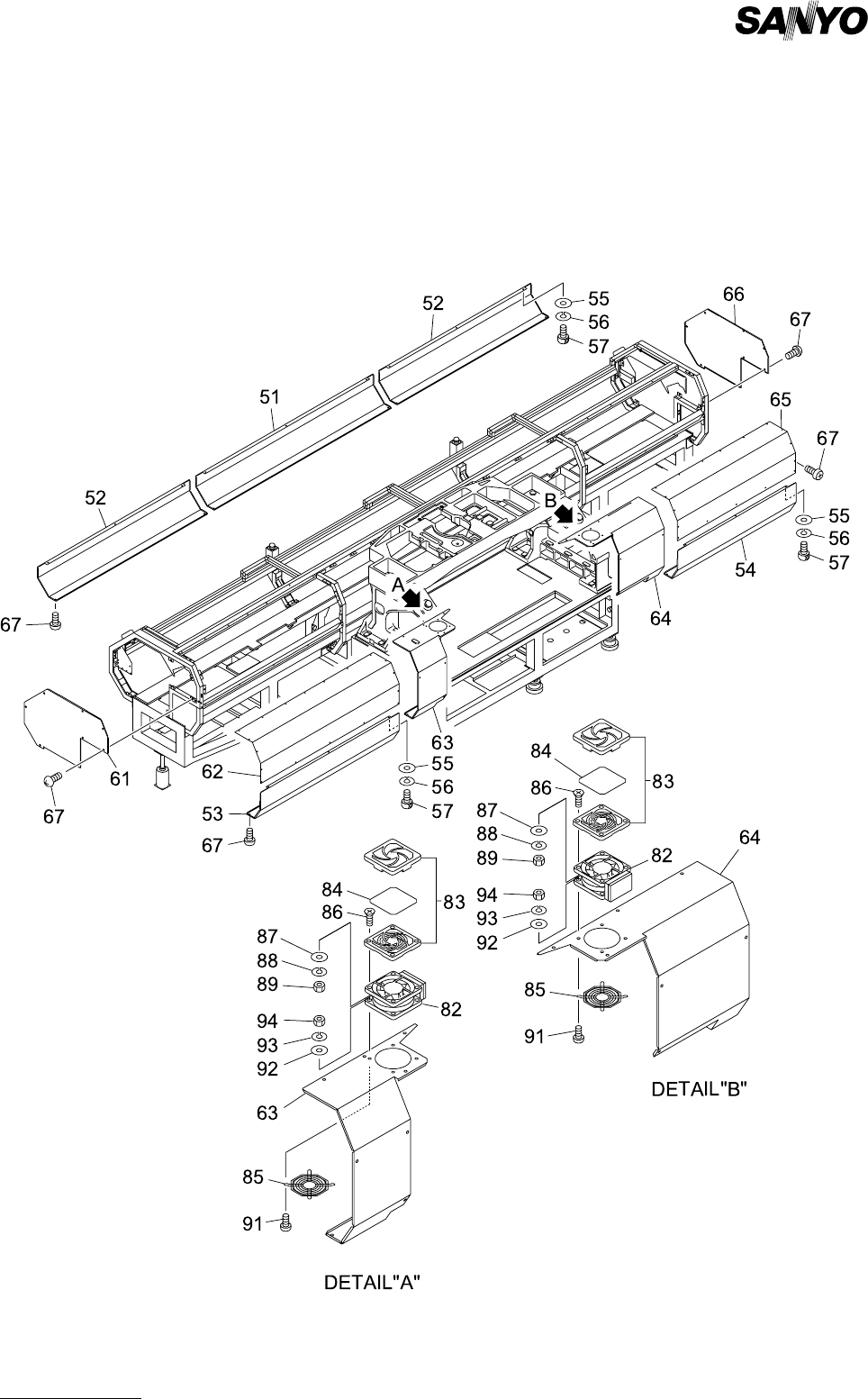

Fig.13-2 後面カバー Rear Cover
MODEL TCM-3700
9912-001
13- 2
PART No. PART NAME Q'ty REMARKS
51 630 085 4756 COVER 1 739RB-01B-028
52 630 085 4763 COVER 2 739RB-01B-029
53 630 085 4787 COVER 1 739RB-01B-031
54 630 085 4770 COVER 1 739RB-01B-030
55 630 001 0220 WASHER 15 BW5
56 411 141 6705 WASHER SPR 5 15 SW5
57 630 000 7756 BOLT,HEX-SCT 15 M5X12
61 630 085 4824 COVER 1 739RB-01B-041
62 630 060 0490 COVER 1 739RB-01B-035
63 630 085 4800 COVER 1 739RB-01B-037
64 630 085 4794 COVER 1 739RB-01B-036
65 630 060 0483 COVER 1 739RB-01B-034
66 630 085 4817 COVER 1 739RB-01B-040
67 411 113 9109 SCR TRS 5X10 16 M5X10 TRS
82 630 070 3061 MOTOR,AC 2 739FB-01D-800
83 630 074 6853 ACCESSORY,MOT-M (FILTER) 2 739FB-01D-802
84 630 076 4932 ACCESSORY,MOT-M 2 739FB-01D-803
85 630 068 4292 ACCESSORY,MOT-M 2 739FB-01D-801
86 411 140 7406 SCR FLT 5X20 8 M5X20 FLT
87 411 088 1702 WASHER V 5X10X1 8 FW5 F
88 411 008 2109 WASHER SPR 5 8 SW5 F
89 411 118 8503 NUT HEX 5 8 M5 F
91 411 140 6508 SCR PAN 5X20 8 M5X20 PAN
92 411 088 1702 WASHER V 5X10X1 8 FW5 F
93 411 008 2109 WASHER SPR 5 8 SW5 F
94 411 118 8503 NUT HEX 5 8 M5 F
Key No.
NOTE
MODEL TCM-3700
9912-001
後面カバー部 REAR COVER SECTION
Fig.13-3 安全カバー Guard Cover
