MODEL TCM-3700
9912-001
ヘッド駆動部 HEAD DRIVING SECTION
Fig. 3-12 カム軸－ 3 Cam Shaft-3
MODEL TCM-3700
9912-001
3-12
PART No. PART NAME Q'ty REMARKS
1 630 060 4924 ASSY,CAM(CUTTER) 1
1 -1 630 052 6011 SHAFT 1 739K--01B-039
1 -2 630 049 0992 KEY 1 739K--01B-081
1 -3 630 058 3519 CAM (06) 1 739K--01B-076
1 -4 630 000 8982 SET SCREW 2 M6X8 SET
5 630 049 0244 KEY 4 739K--01H-045
6 630 058 3533 CAM (08) 1 739K--01B-078
7 630 058 3540 CAM (09) 1 739K--01B-079
8 630 061 3506 CAM (02) 1 739K--01B-072
9 630 048 9149 DISK 3 739K--01B-041
10 630 029 1391 WASHER 9 739K--01H-048
11 411 008 2109 WASHER SPR 5 9 SW5 F
12 630 000 8647 BOLT,HEX 9 M5X25 HEX
13 630 000 8982 SET SCREW 6 M6X8 SET
14 630 048 9132 DISK 1 739K--01B-040
15 630 058 6251 CAM (10) 1 739K--01B-080
16 630 029 1391 WASHER 3 739K--01H-048
17 411 008 2109 WASHER SPR 5 3 SW5 F
18 630 000 8630 BOLT,HEX 3 M5X20 HEX
19 630 000 8982 SET SCREW 2 M6X8 SET
20 630 056 1814 BASE 1 739K--01B-035
21 630 055 1976 HOLDER 1 739K--01B-036
22 630 049 0121 BEARING,RADIAL 1 739K--01H-008
23 630 049 0213 MECH PARTS(BEARING COVERS 1 739K--01H-044
24 630 000 7879 BOLT,HEX-SCT 4 M6X12
25 630 049 0077 BEARING,RADIAL 1 739K--01H-009
26 630 055 1983 HOLDER 1 739K--01B-037
27 411 141 4701 WASHER V 10X21X2 4 FW10
28 411 141 3209 WASHER SPR 10 4 SW10
29 630 000 8159 BOLT,HEX-SCT 4 M10X40
30 630 001 0251 WASHER 4 739K--01H-049
31 411 141 3209 WASHER SPR 10 4 SW10
32 630 000 8159 BOLT,HEX-SCT 4 M10X40
33 630 048 7312 PULLEY,TIMING 1 739K--01H-004
34 630 049 0060 MECH PARTS(MECHA LOCK) 1 739K--01H-007
35 630 048 7213 RING 1 739K--01B-029
36 630 000 8944 SET SCREW 2 M5X6 SET
37 630 048 7206 DISK 1 739K--01B-028
38 411 141 4008 WASHER V 4X9X0.8 1 FW4
39 411 141 2905 WASHER SPR 4 1 SW4
40 630 000 7626 BOLT,HEX-SCT 1 M4X10
41 630 052 1542 BRACKET 1 739K--01B-060
42 630 000 0245 SENSOR,PHOTO 1 739K--01H-040
43 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 739K--01H-043
44 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
45 411 086 4408 WASHER SPR 3 2 SW3 F
46 411 040 7803 SCR PAN 3X12 2 M3X12 PAN
47 411 141 4107 WASHER V 5X10X1 2 FW5
48 411 141 6705 WASHER SPR 5 2 SW5
49 630 000 7763 BOLT,HEX-SCT 2 M5X16
Key No.
NOTE
MODEL TCM-3700
9912-001
ヘッド駆動部 HEAD DRIVING SECTION

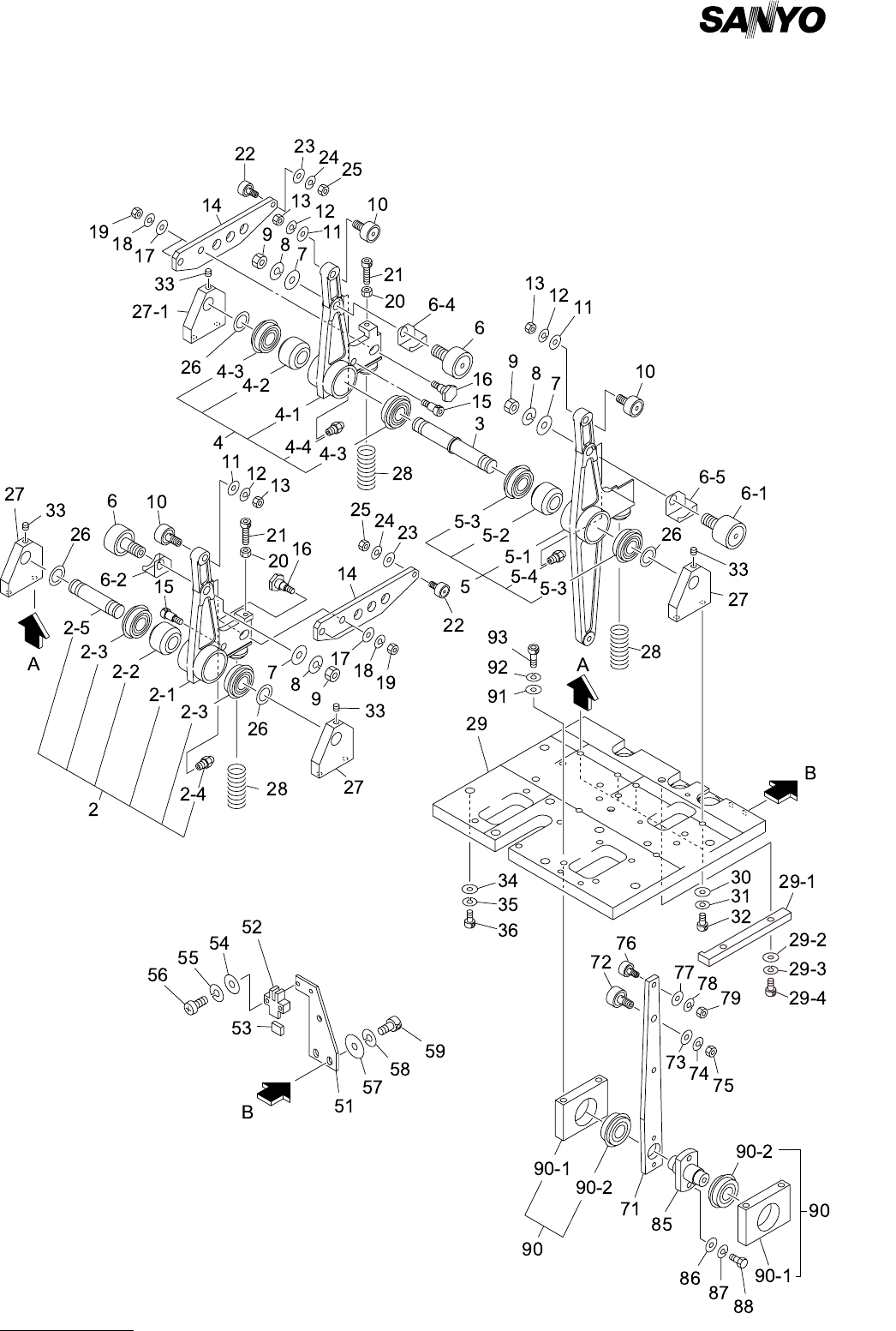

Fig. 3-13 カム軸－ 3 レバー Cam Shaft-3 Lever
