P-138-001e - 第95页
MODEL TCM-3700 9912-001 4- 7 PART No. PART NAME Q'ty REMARK S 1 630 048 7657 SUPPO RT 1 739E--01B-017 2 630 001 0220 W ASHER 2 739E--01H-008 3 411 141 6705 W ASHER SPR 5 2 SW 5 4 630 000 7770 BOLT ,HEX-SCT 2 M5X 20 …
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

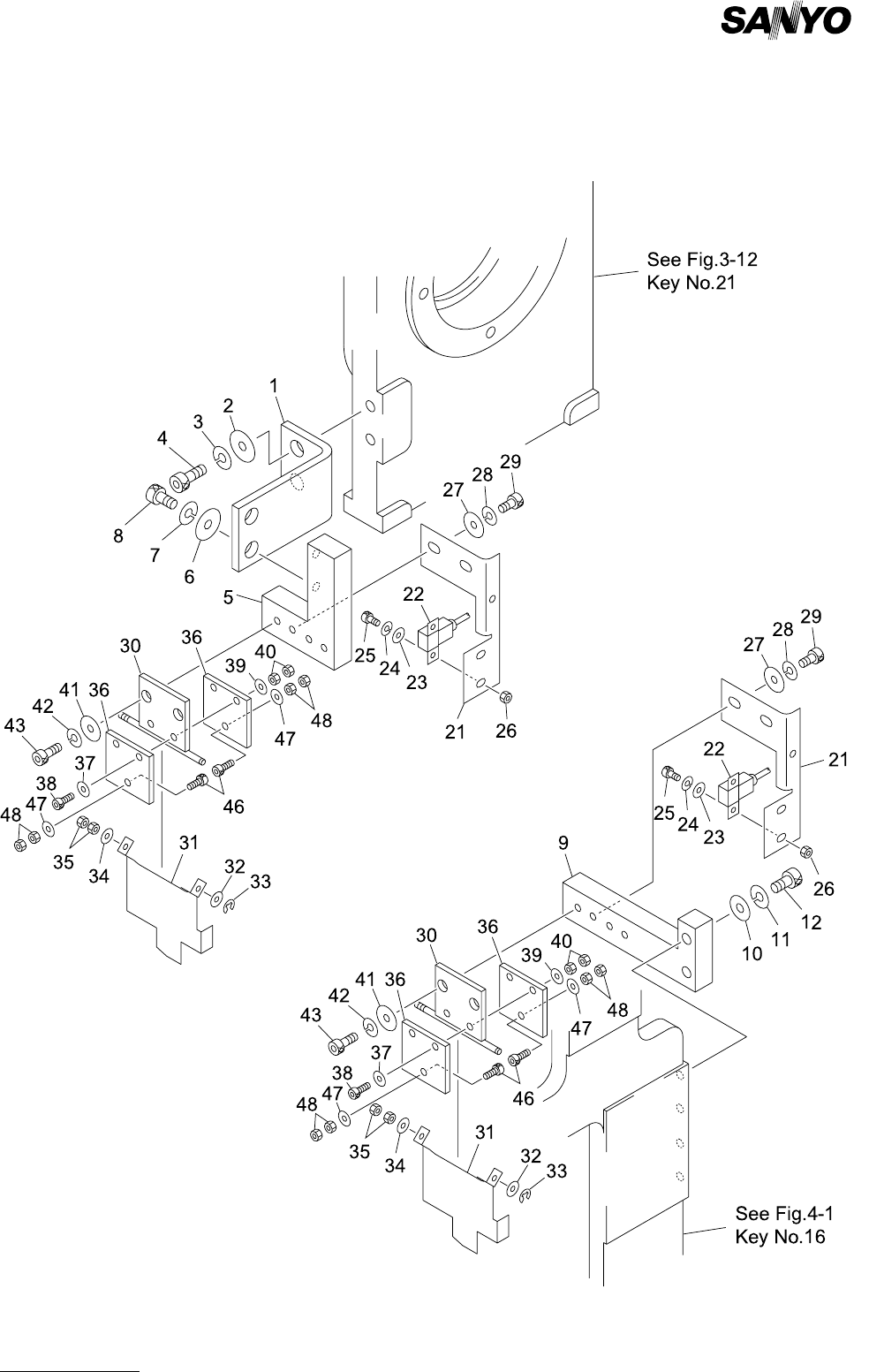

Fig. 4-7 シルエットテンプレート Silhouette Template
MODEL TCM-3700
9912-001
4- 7
PART No. PART NAME Q'ty REMARKS
1 630 048 7657 SUPPORT 1 739E--01B-017
2 630 001 0220 WASHER 2 739E--01H-008
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7770 BOLT,HEX-SCT 2 M5X20
5 630 048 7664 SUPPORT 1 739E--01B-018
6 630 001 0220 WASHER 2 739E--01H-008
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7770 BOLT,HEX-SCT 2 M5X20
9 630 048 7640 SUPPORT 1 739E--01B-016
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7770 BOLT,HEX-SCT 2 M5X20
21 630 038 6992 BRACKET 2 739E--01B-030
22 630 000 0290 SENSOR,PROXIMITY 2 739E--01H-002
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 141 2806 WASHER SPR 3 4 SW3
25 630 000 7527 BOLT,HEX-SCT 4 M3X10
26 411 140 9905 NUT HEX 3 4 M3
27 630 001 0213 WASHER 4 739E--01H-007
28 411 141 2905 WASHER SPR 4 4 SW4
29 630 000 7640 BOLT,HEX-SCT 4 M4X14
30 630 040 4609 PLATE 2 739E--01B-031
31 630 040 4593 PLATE 2 739E--01B-032
32 411 141 3902 WASHER V 3X7X0.5 2 FW3
33 411 000 9304 RING E 2 2 739E--01H-006
34 411 141 3902 WASHER V 3X7X0.5 2 FW3
35 411 141 0109 NUT HEX 3 4 M3-3
36 630 062 8647 SHEET 4 739E--01B-033
37 411 141 3902 WASHER V 3X7X0.5 4 FW3
38 630 000 7558 BOLT,HEX-SCT 4 M3X16
39 411 141 3902 WASHER V 3X7X0.5 4 FW3
40 411 140 9905 NUT HEX 3 8 M3
41 630 001 0213 WASHER 4 739E--01H-007
42 411 141 2905 WASHER SPR 4 4 SW4
43 630 000 7640 BOLT,HEX-SCT 4 M4X14
46 630 000 7510 BOLT,HEX-SCT 4 M3X8
47 411 141 3902 WASHER V 3X7X0.5 4 FW3
48 411 141 0109 NUT HEX 3 8 M3-3
Key No.
NOTE
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

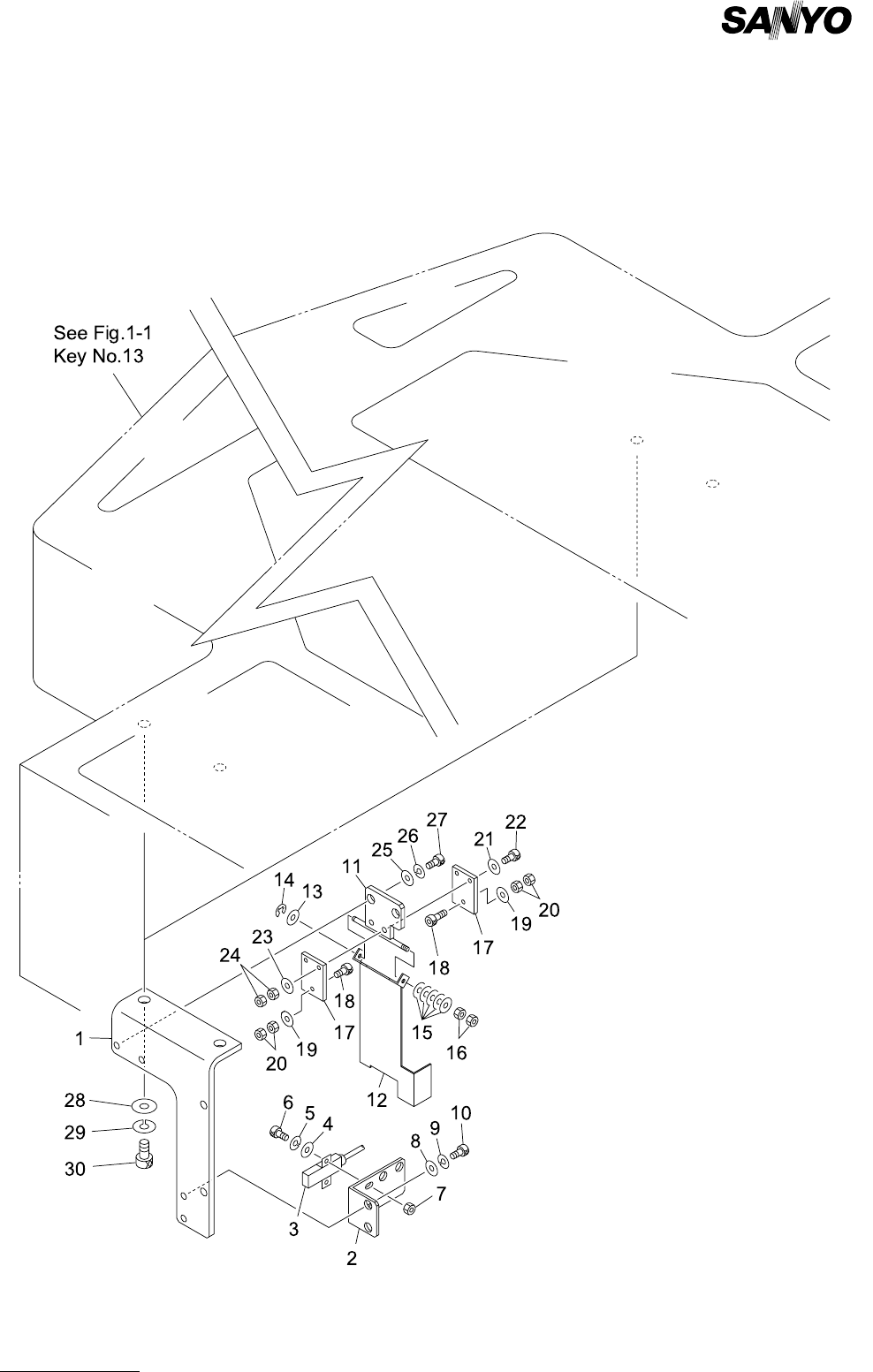

Fig. 4-8 カセット装着ミス検出部 Feeder Miss-setting Detector
