Operational Safety 2.1.2 Important Notes on Operational Safety Safety Instructions Operating Manual SIPLACE WPC5/WPC 6 15 ► Instruct personnel about the si g nificance an d effects if warnin gs are not obs erved. 2.1.2.3…
Operational Safety
Safety Instructions 2.1.2 Important Notes on Operational Safety
14 Operating Manual SIPLACE WPC5/WPC6
2.1.2.1
2.1.2.1 General
General
► The operational safety of the module can only be guaranteed by correct usage with the SIPLACE
station and if the respective operating, service, maintenance and settings guides are observed and
adhered to.
► Observe the safety regulations specified in the manuals.
► Furthermore, always follow any safety regulations specific to your country.
► Replace incorrectly attached, missing or illegible warning, prohibition or information signs immedi-
ately. Clean the labels and signs as described in section "2.2.3 Warning, Prohibition and Cautionary
Labels" [ ➙ 17].
► Module covers which require tools to remove them may only be removed by specifically authorized
personnel.
► If it is necessary to work on the machine and you do not have adequately trained personnel within
your operation, always call in a SIPLACE service engineer.
SIPLACE will not accept liability for any damage or consequential damage that is the result of incor-
rect work!
► If significant hazardous situations are identified during operation of the module, including its interre-
lationship with the SIPLACE station, the company operating the machine must immediately notify
the manufacturer in writing so that appropriate action can be taken to reduce the potential danger.
2.1.2.2
2.1.2.2 Safety of Operators and Other Persons
Safety of Operators and Other Persons
► The operational safety can only be guaranteed by prescribed usage of the module and observance
of the operating, service and maintenance manuals.
► Do not make modifications to the . Never bridge protective switches or remove protective devices.
► Machine operators may only carry out work for which they have been adequately trained and with
which they are totally familiar!
► Do not open the protective door on the module or any protective covers on the SIPLACE station if
you are not totally familiar with the use and functioning of these machines! The protective doors on
the module and the protective covers on the SIPLACE station may only be opened if you are request-
ed to do so in the operating manual, in another module guide or on the screen of the station computer
- for the job at hand - or if the machine has been switched off.
► NEVER place your head or arms in the axis traveling range while the module/SIPLACE station is
switched on!
► Never make changes, however minor, unless you are totally aware of the effect they will have on the
overall functioning of the system.
► The stations and station extensions must always be set up, retooled and maintained by appropriately
trained personnel!
► Only use original spare parts and authorized accessories of SIPLACE. The use of other parts will
affect safety and can invalidate the liability for any consequential damage.
► For your own safety, wear work clothes that conform to the guidelines of the professional associa-
tion, i.e. no wide sleeves etc.
► Reduce the risks by not wearing scarves, chains or ties at your work post.
► People with long hair must wear a protective head covering.
Operational Safety
2.1.2 Important Notes on Operational Safety Safety Instructions
Operating Manual SIPLACE WPC5/WPC6 15
► Instruct personnel about the significance and effects if warnings are not observed.
2.1.2.3
2.1.2.3 Safety of Plant and Equipment
Safety of Plant and Equipment
► Never make changes, however minor, unless you are totally aware of the effect they will have on the
overall functioning of the system.
► The stations must always be set up, retooled and maintained by appropriately trained personnel.
► Only use original spare parts and authorized accessories of SIPLACE. The use of other parts will
affect safety and will invalidate the liability for any consequential damage.
► Do not make modifications to the safety equipment. Never bridge protective switches or remove pro-
tective devices.
DANGER
The module is electrically driven. When electrical devices are in use, certain parts carry dan-
gerous voltage levels!
► Some assemblies inside the module are still live when the main switch is turned off and will
remain so until the module is disconnected from the power supply. Other electrical compo-
nents may have residual voltages. Wait for this to be discharged after the main switch has
been set to OFF. These components are all labeled appropriately.
► Before performing service work or certain maintenance tasks, switch the module off at the
main switch and disconnect the power cable form the power supply.
DANGER
In spite of all the safety precautions taken by the manufacturer, failure to use the module as
prescribed or incorrect maintenance, setting or service procedures can result in severe physical
injury (e.g. from lifting axis) and/or considerable damage to property. Safe operation of the mod-
ule and the safe performance of all work to the module requires that the operation/the work is
performed by appropriately qualified personnel in observance of all warnings.
Certain tasks performed on the machine (e.g. maintenance, setting up and service work) re-
quires training that goes beyond the scope of this manual.
Operational Safety
Warning Labels 2.2.1 Warning Labels on the WPC5 and WPC6
16 Operating Manual SIPLACE WPC5/WPC6
2.2
2.2 Warning Labels
Warning Labels
2.2.1

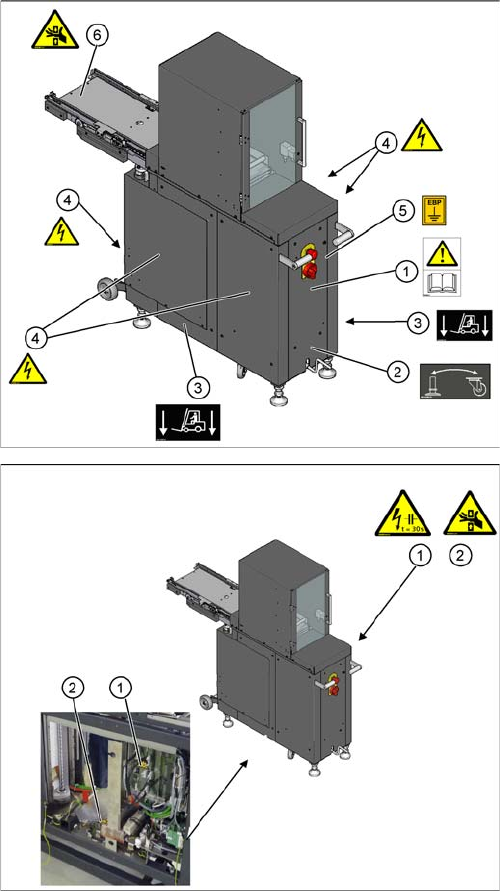

2.2.1 Warning Labels on the WPC5 and WPC6
Warning Labels on the WPC5 and WPC6
Overview
1. 1x warning W201 – safe operation of the machine
2. 1x label: crank handle attachment point
3. 2x label: fork-lift attachment points
4. 5x warning W206 - dangerous voltages
5. 1x label: ESD connection point
6. 1x warning 203 - danger of crushing
Overview
1. 2x warning label 207 - mains voltage
2. 2x warning 203 - danger of crushing
