Module Technical Data
Connection Values 3.3.4 Dimensions and Weight
28 Operating Manual SIPLACE WPC5/WPC6
3.3.4.1

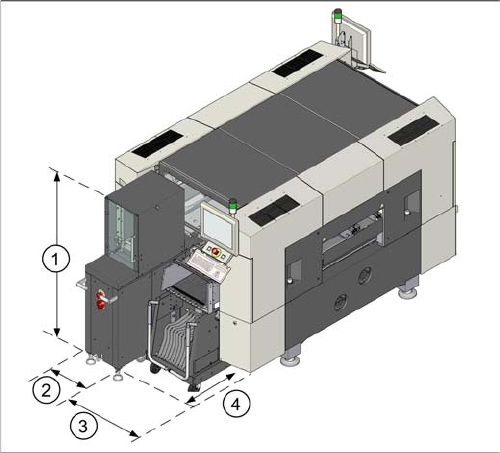

3.3.4.1 Dimensions
Dimensions
WPC5/WPC6 on the SIPLACE SX
1. Length 1520 mm
2. Width 360 mm
3. Height 1460 mm for 930 mm PCB transport height
4. Height 1430 mm for 900 mm PCB transport height
5. Height 1480 mm for 950 mm PCB transport height
Setting up and Commissioning
4.1.1 Transport Packaging Delivery Configuration and Transportation
Operating Manual SIPLACE WPC5/WPC6 29
4
4 Setting up and Commissioning
Setting up and Commissioning
4.1
4.1 Delivery Configuration and Transportation
Delivery Configuration and Transportation
4.1.1
4.1.1 Transport Packaging
Transport Packaging
Within Europe the module is transported on a wooden pallet and is wrapped in plastic foil. Outside Eu-
rope, the module is supplied in a wooden crate mounted on a stable wooden pallet.
4.1.1.1

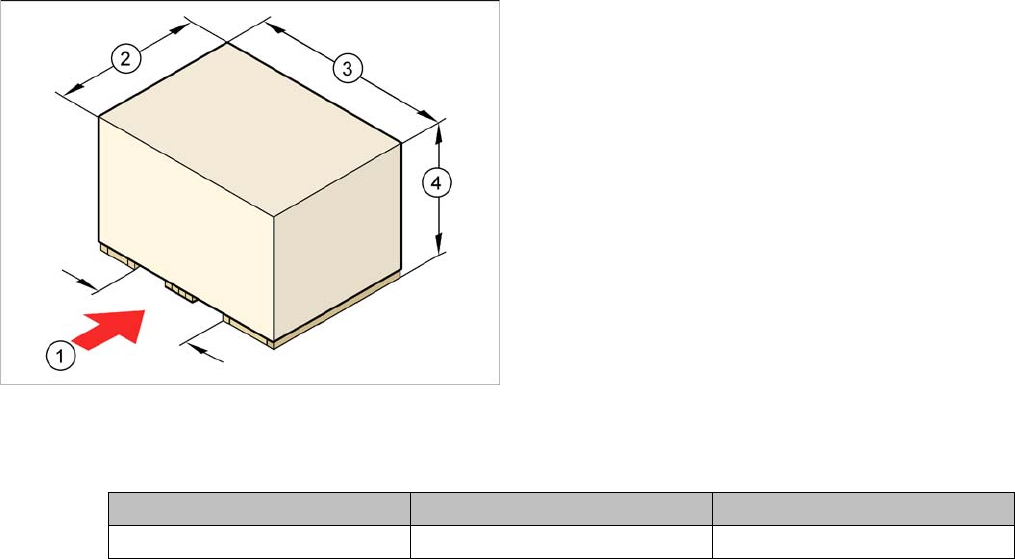

4.1.1.1 Dimensions of the Transport Packaging
Dimensions of the Transport Packaging
4.1.1.2
4.1.1.2 Weight of Module When Ready for Delivery
Weight of Module When Ready for Delivery
The following table contains the weight of the module when ready for delivery.
4.1.2
4.1.2 Delivery Configuration
Delivery Configuration
The WPC5/WPC6 is delivery fully assembled. The upgrade kit is packaged separately.
Legende
1. Fork-lift attachment point
2. Width: 1250 mm
3. Length: 1600 mm
4. Height: 1600 mm
Module Dispatch within Europe Dispatch overseas
WPC5/WPC6 400 kg 450 kg
Setting up and Commissioning
Setting Up the Module 4.2.1 Fitting the Downholder
30 Operating Manual SIPLACE WPC5/WPC6
4.2
4.2 Setting Up the Module
Setting Up the Module
4.2.1
4.2.1 Fitting the Downholder
Fitting the Downholder
Fitting the right downholder
NOTICE
Requirements
The changeover table insert 30 has to be installed on the respective location.
The WPC5/WPC6 can be used in the SIPLACE SX1/SX2 (depends on head configuration):
► WPC5/WPC6 in SIPLACE SX2 on location 1 und 2.
► WPC5/WPC6 in SIPLACE SX1 only on location 1.
NOTICE
COT-I30 insert for the WPC
When using a COT-I30 insert for the WPC, you only need to fit the downholder on the right.
1 Pin DIN6325-10-M6x30-St [00358814-xx]
at position inside
2 Pin DIN6325-10-M6x30-St [00358814-xx]
at position outside
3 Docking aid 4 Screw ISO4762-M8x40-A2-70 [03042589-
xx]
5 Screw ISO4762-M8x40-A2-70 [03042589-
xx]
