Operator Tasks
Functions at the Station Computer (SR704.xx) 5.6.2 WPC5/WPC6 Functions
50 Operating Manual SIPLACE WPC5/WPC6
5.6.2
5.6.2 WPC5/WPC6 Functions
WPC5/WPC6 Functions

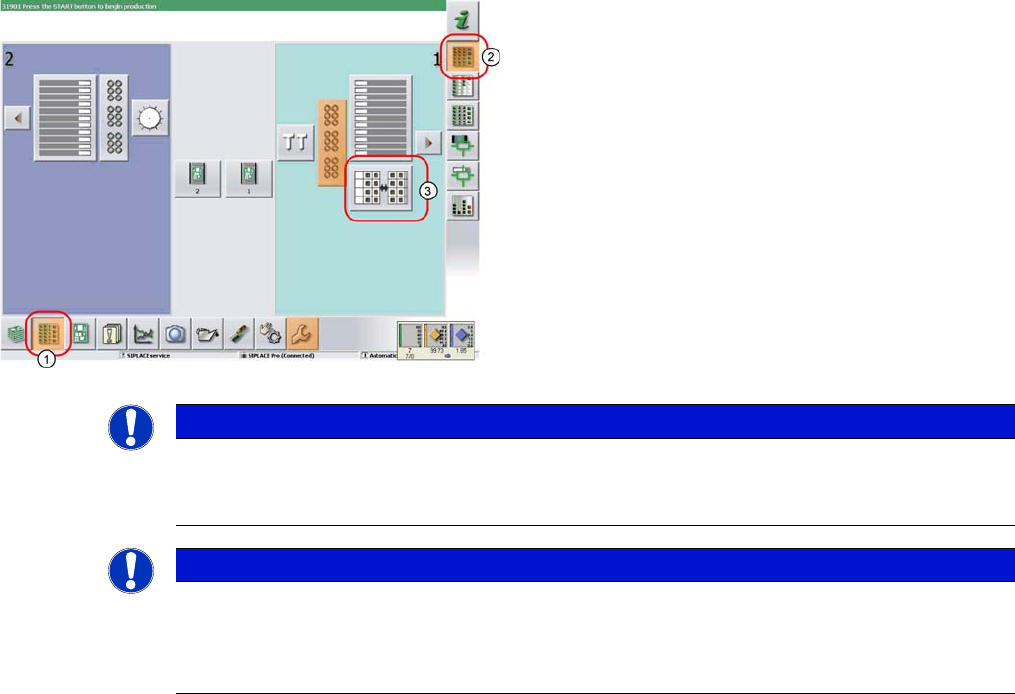

► In the tool bar of the main view click on the icon (1) for
the functions Feeder, Locations….
► Click on the icon (2). The user interface will switch to
the view Functions > Locations > WPC.
► Click on the icon (3) for the WPC5/WPC6 at the rele-
vant location (location 1 here).
The Setup > Locations > WPC view will be shown for
the selected Location.
NOTICE
WPC icon
The icon for the WPC5/WPC6 will only be shown for the location if a WPC5/WPC6 is really pre-
sent there.
NOTICE
Main view
If there is a setup available for the WPC5/WPC6, this will be shown as an icon in the diagram
of the relevant WPC in the main view.
If you click on this the WPC view will be opened for the WPC5/WPC6 at the selected location.
Operator Tasks
5.6.3 "WPC" View Functions at the Station Computer (SR704.xx)
Operating Manual SIPLACE WPC5/WPC6 51
5.6.3

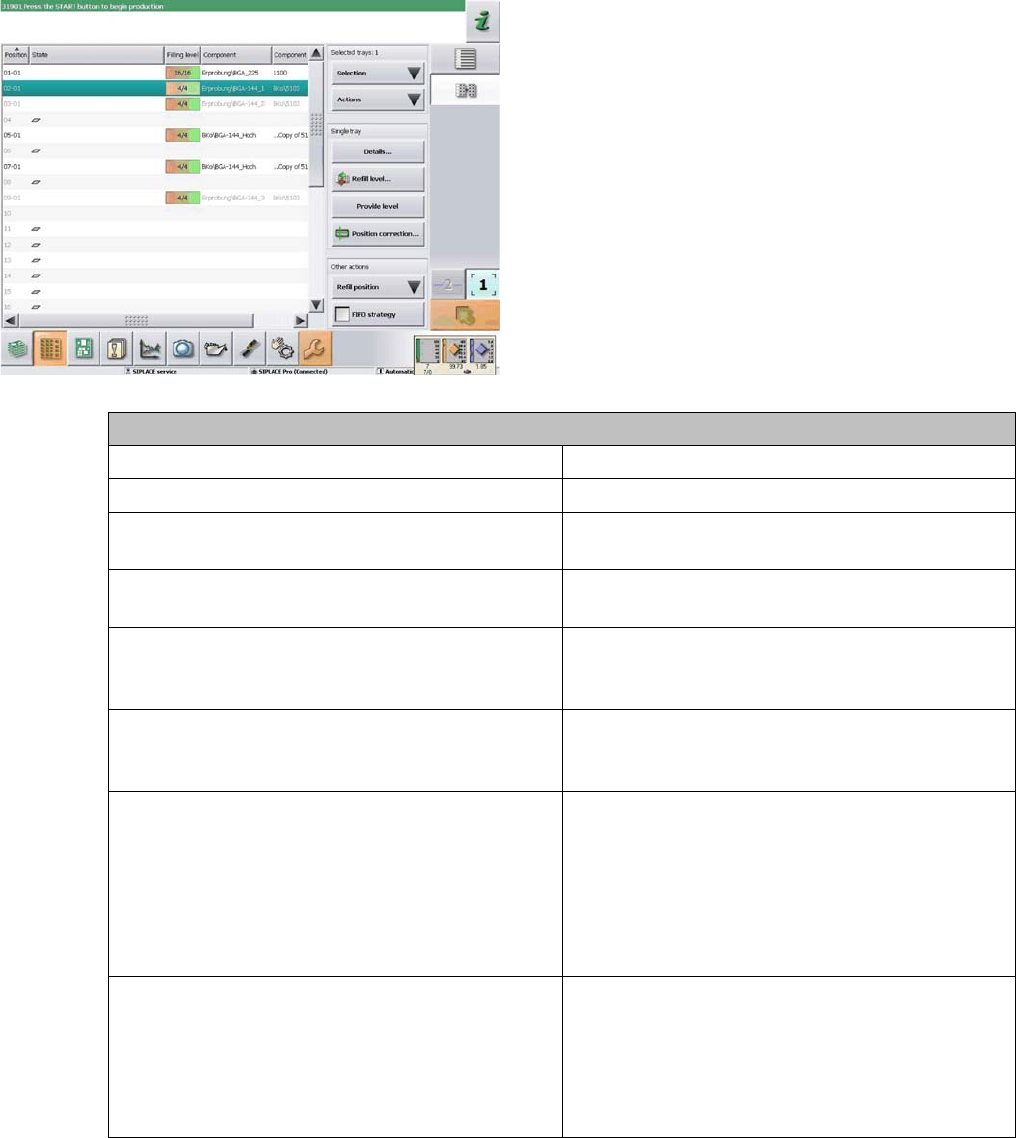

5.6.3 "WPC" View
"WPC" View
Functions
Selection Allows the selection of waffle pack trays.
Actions Selection of different actions
Details… Opens a dialog box in which you can adjust the
data for the selected waffle pack tray.
Refill level Opens a dialog field in which actions with the Non-
Stop Module can be carried out.
Prepare level The lifting axis moves the selected level to the feed
axis position and the waffle pack tray carrier will be
moved to the staging position.
Position correction... (can only be enabled from operator level "Ser-
vice"). Starts a dialog box for manual correction of
the component pickup position.
Refill position In Move to refill position: Moves to the position in
which the waffle pack tray carriers for all levels can
be replaced. Components can no longer be picked
up from the WPC.
Exit refill position: Moves the complete WPC back
to working position. Components can be picked up
again.
FIFO strategy Enabled: As soon as pickup has been performed
once from a waffle pack tray on a replacement
track, this will be emptied completely before the
actual track is used again.
Disabled: The components are picked up on a
travel path optimized basis.
Operator Tasks
Functions at the Station Computer (SR704.xx) 5.6.4 "Non-Stop" function view
52 Operating Manual SIPLACE WPC5/WPC6
5.6.4

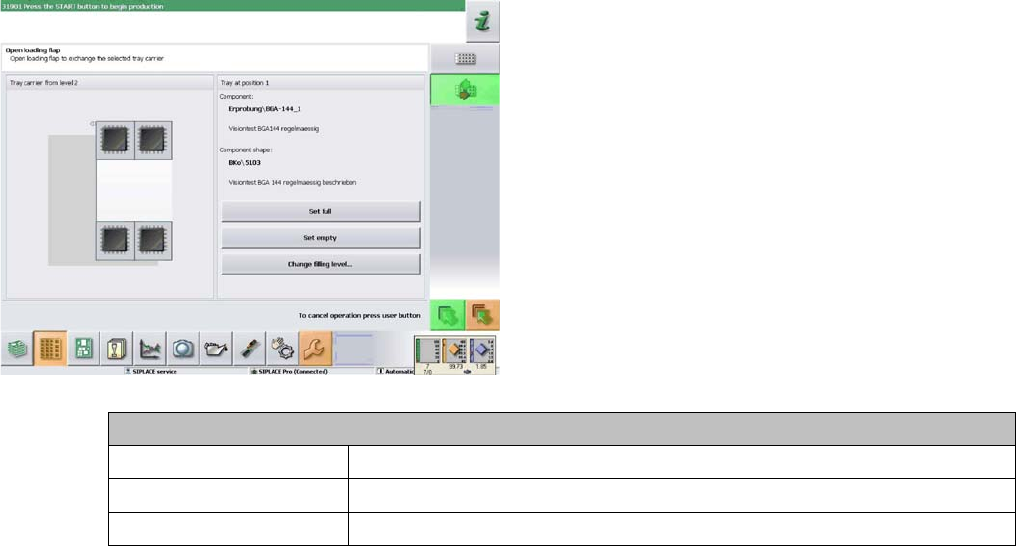

5.6.4 "Non-Stop" function view
"Non-Stop" function view
Waffle pack tray details
Set full Confirms that the waffle pack tray has been filled with components.
Set empty Confirms that the waffle pack tray has been emptied.
Change filling level... Sets the number of components in the waffle pack tray
