20.04.2017 Page 10

Configuration SPS for SX2/SX1

To reduce the diversity of configurations of the SPS magazines, the following variants

have been be defined:

1. For the SX1 it is not possible to configure an SPS magazine on location 2, whether if

there a single- or dual conveyor.

2. For the SX2, only the SPS magazine Q10 on location 2 will be supported if a WPC

with two stationary cameras or 3D-coplan is mounted on location 1. The support

plate for location 2 is necessary.

3. The IC - Camera is not a precondition to use the Q10 magazine, but if no

IC camera installed, the Support plate 1 for location 1 is necessary.

20.04.2017 Page 11

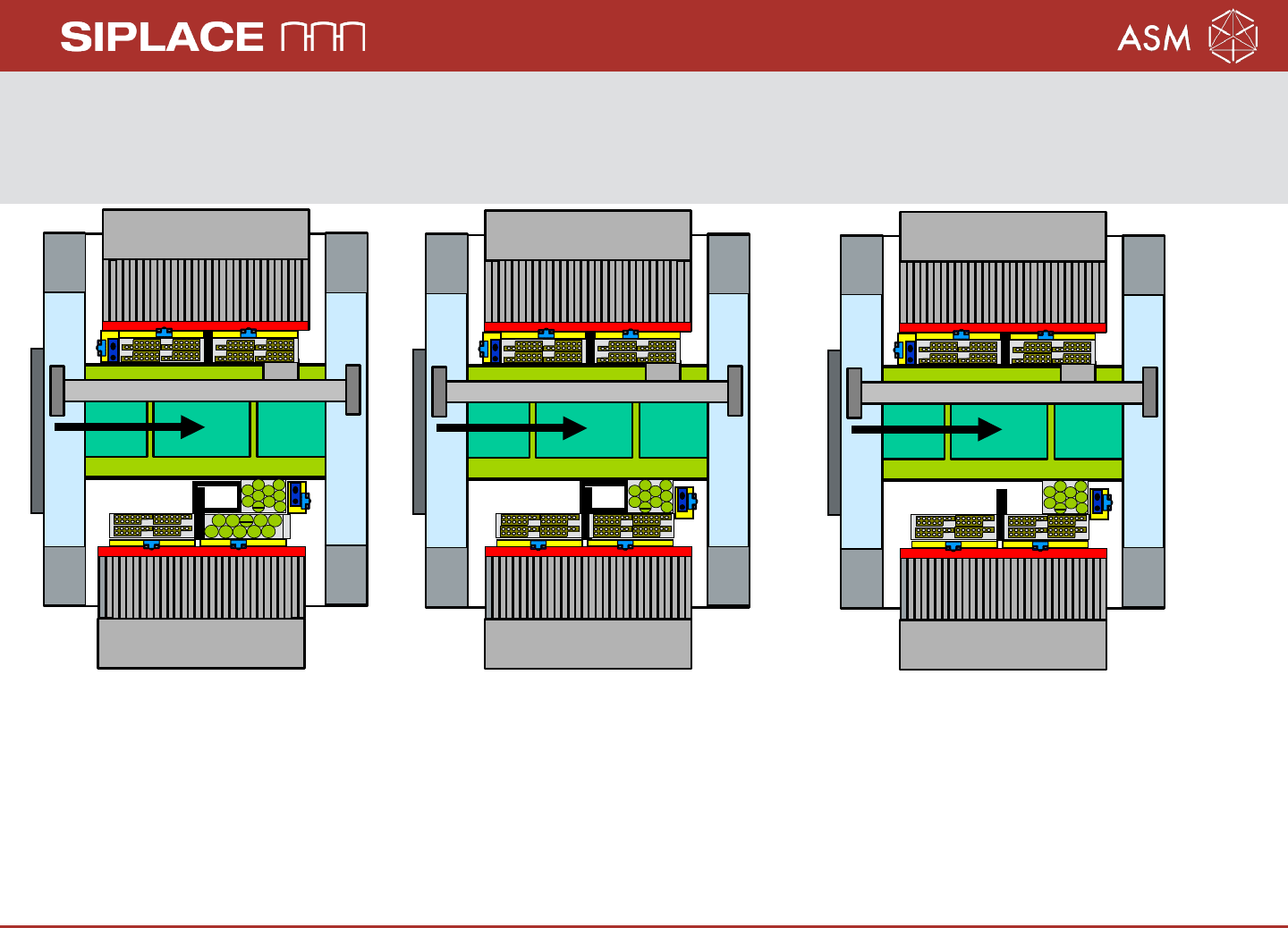

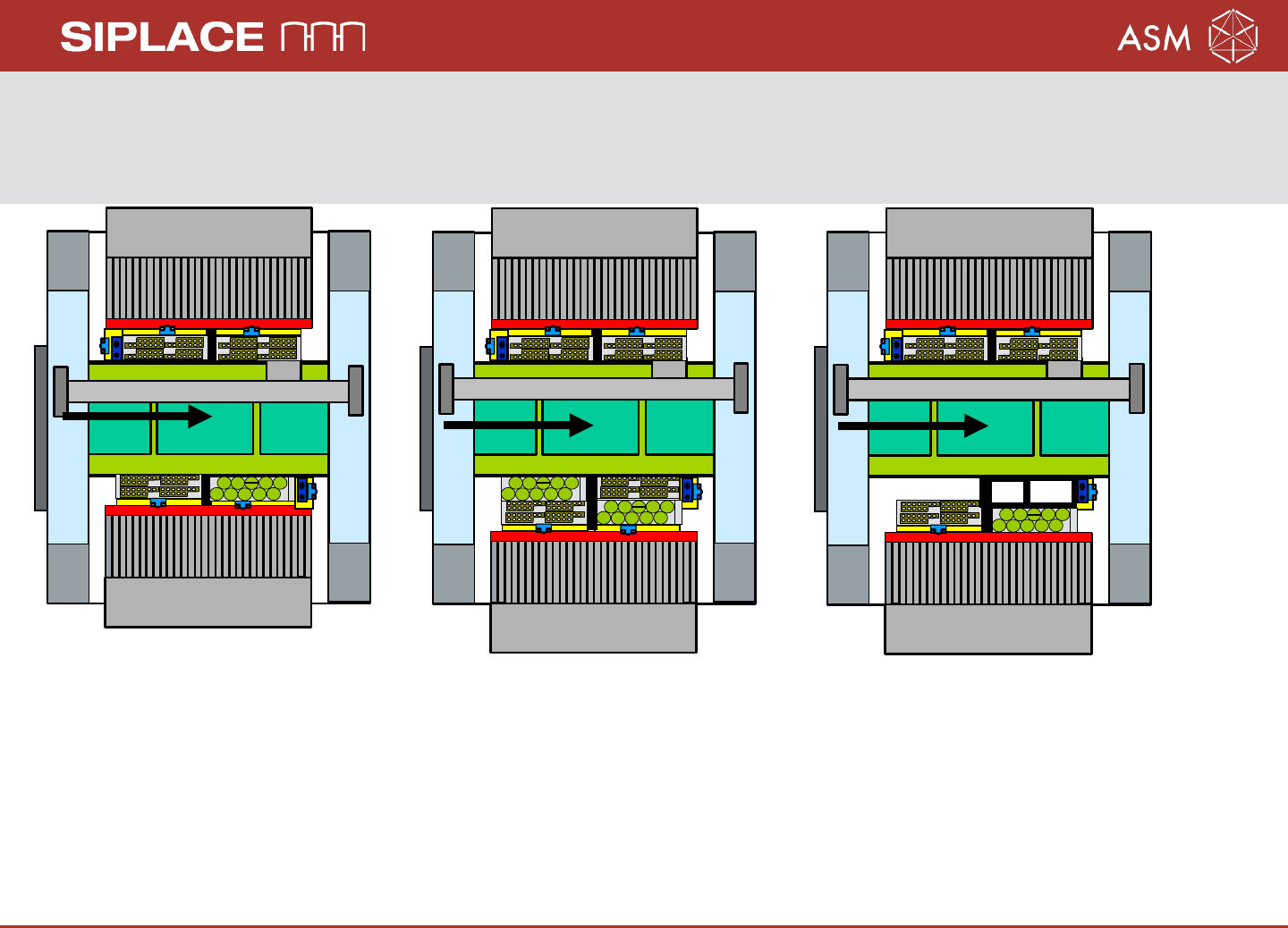

Configuration SPS for SX1

Gantry 1

Sensor

FCU

Sensor

Sensor Sensor

Sensor

Gantry 1

Sensor

FCU

Sensor

Gantry 1

FCU

Sensor

FC/3D

SST33

Location 1/2

Table position inner

SPS magazine L10 on

NC position 2

Location 1

Table position outer

SPS magazine L10 on

NC position 2 and/or L10

on NC position 3

Location 1

Table position outer

SPS magazine L10 on

NC position 2

20.04.2017 Page 12

Configuration SPS for SX1

Gantry 1

FCU

Sensor

Gantry 1

FCU

Sensor

SST33

FCU

Sensor

SST33

FCU

Sensor

Location 1

Table position outer

SPS magazine L10 on

NC position 2 and Q10

on NC position 4

Location 1

Table position outer

SPS magazine Q10 on

NC position 4

Gantry 1

FCU

Sensor

FCU

Sensor

Location 1

Table position outer

SPS magazine Q10 on

NC position 4

No stat. Camera – Support

plate for location 1 necessary!
