SIPLACE Placement Head

Nozzle Changers

Description

Nozzle changers increase

the flexibility of the placement

heads when it comes to pro-

cessing different compo-

nents. The nozzle

configuration can be rapidly

adjusted to changing place-

ment jobs. Precisely defined

positions and perfect nozzle

seat in the garage ensure

minimum radial eccentricity

on the placement head.

The nozzle changers for the

SpeedStar are fitted with a

monitoring device which

checks whether the nozzle

magazine is seated correctly

on the mount.

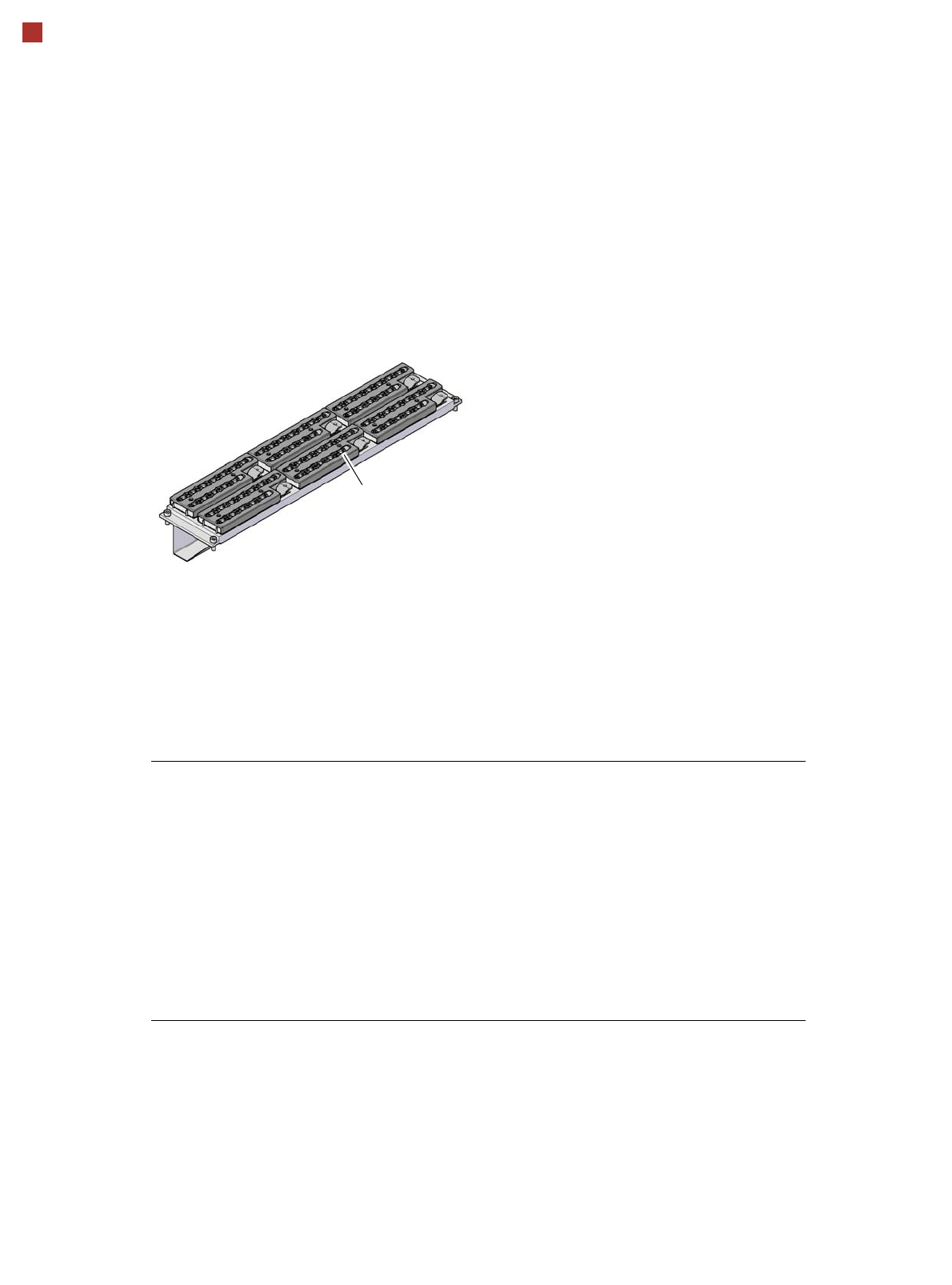

Nozzle changer for the SpeedStar

Technical Data

Dimensions (length x width x height) 449 mm x 94.5 mm x 79 mm

Number of magazines

Location 1 and 3:

Location 2 and 4:

a) All magazines in the nozzle changer must be configured.

Number of nozzle garages

Location 1 and 3:

Location 2 and 4:

Standard configuration 6 magazines with 72 nozzle garages

Nozzle types 10xx, 11xx and 12xx

Compressed air connection 0.45 MPa (4.5 bar)

Magazine for 12

type 10xx, 11xx and 12xx nozzles

PCB Conveyor

Single Conveyor

On the single conveyor,

PCBs are moved one after

the other into the placement

machine and placed on a

conveyor lane.

Conveyor principle

Once the board has reached

the placement area, it is gen-

tly braked. As soon as the

board has reached its target

position, the conveyor belt is

stopped and the board is

clamped from below. The

placement process then

starts immediately. Move-

ment and clamping of the

PCBs is monitored.

Position of conveyor

edges

The conveyor can be easily

matched to many different

PCB widths by the automatic

electrical width adjustment.

The fixed conveyor side can

be either right or left in single

conveyors.

Single conveyor

PCB Conveyor

Flexible Dual Conveyor

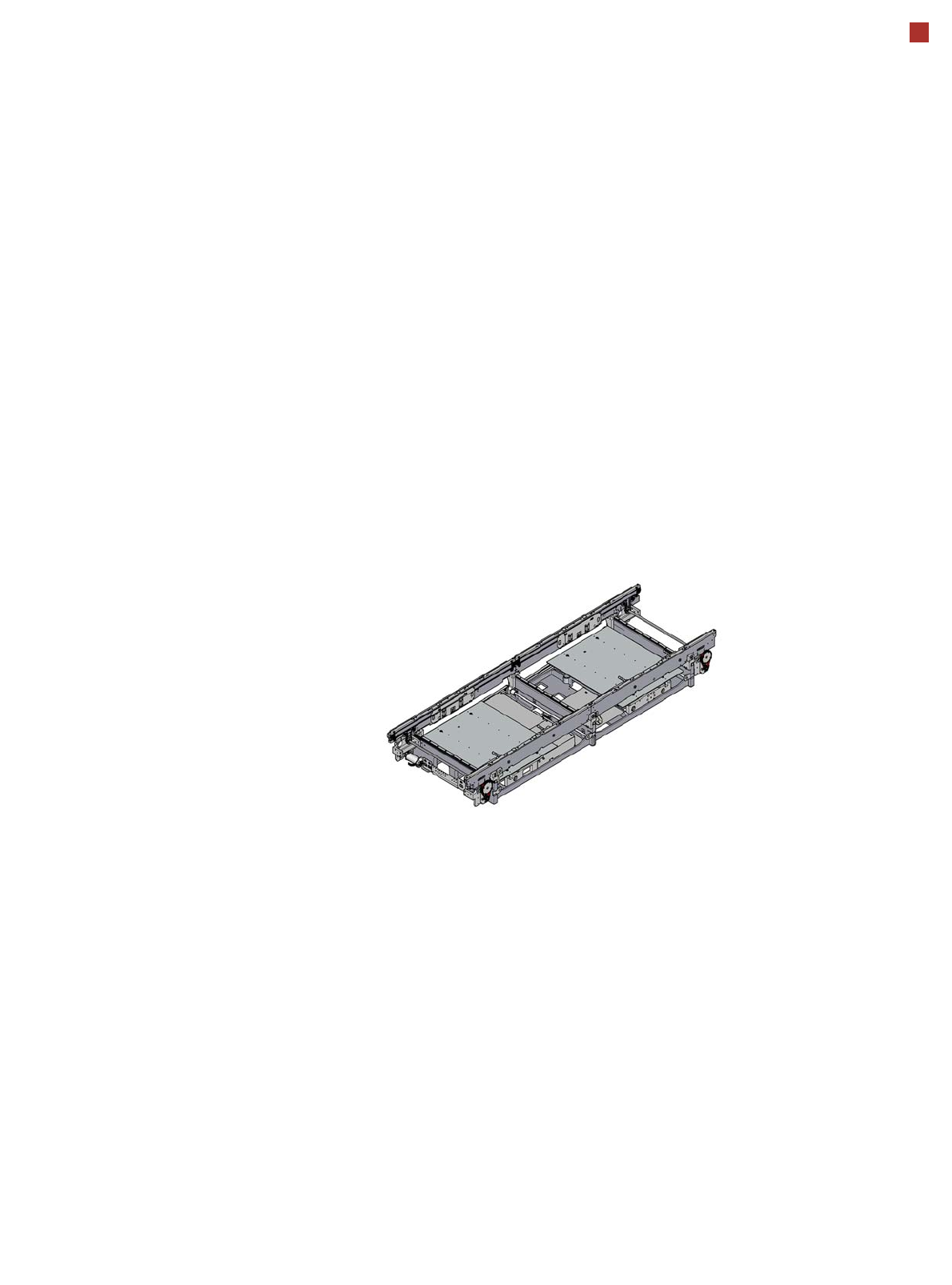

Flexible dual conveyor

To keep the range of PCBs to

be processed as wide as

possible - whilst maintaining

maximum productivity - the

flexible SIPLACE dual con-

veyor allows you to choose

between single conveyor

mode and dual conveyor

mode. In the dual conveyor,

two boards are moved into

the placement machine and

placed either at the same

time (synchronous mode) or

alternatively (asynchronous

mode). This makes it possi-

ble to process the top and

bottom sides of a board in

one line.

Synchronous mode

In synchronous mode, two

PCBs are moved into the

placement position at the

same time. They are pro-

cessed as a common panel.

When using products with

widely differing placement

contents, common optimiza-

tion of the entire placement

content for both boards can

enhance performance.

Asynchronous mode

In asynchronous mode, only

one PCB is processed per

conveyor lane. At the same

time, another PCB in the sec-

ond conveyor lane is moved

into the placement position.

This saves the full conveying

time of one PCB, thus con-

siderably increasing perfor-

mance, particularly for PCBs

with a short cycle time. The

placement process starts as

soon as one PCB is trans-

ported into the processing

area.

I-Placement

In addition to synchronous

and asynchronous conveyor

mode, a new placement con-

cept has been developed for

the SIPLACE DX4: I-Place-

ment. In this mode, the two

heads work simultaneously

and populate a PCB totally

independently of one

another. This further

increases the output.

The background: the place-

ment heads and component

feeder modules of the

SIPLACE DX4 have acceler-

ated component pickup to

such a degree that it is now

the transport path to the

board and not the pickup pro-

cedure which has become

the speed-restricting factor.

Flexible dual conveyor

Asynchronous placement mode

or I-Placement
