22 Component Feeding SIPLACE DX Changeover Table (Option) Technical Data DX changeover table dimensions DX changeover table X ( length x width) 752 mm x 592 mm Height 900 mm (PCB transport height: 930 mm (PCB transport h…
21
Component Feeding
SIPLACE DX Changeover Table (Option)
DX changeover table
The DX changeover tables
are independent and easily
maneuverable modules. The
SIPLACE DX4 machines can
accommodate four DX
changeover tables, each with
40 tracks. Just like the fixed
DX tables, the DX change-
over tables are optimized for
the use of 2x8 mm SIPLACE
tape feeder modules when
using 8 mm tapes. By using
20 of these feeder modules,
you can achieve a full setup
capacity of 40 8mm tracks.
The tape reels are taken up
into the tape container of the
DX changeover table. A cut-
ting device on the machine
automatically cuts the used
tape material. The DX
changeover tables can be
set up directly on the
machine or at an external
setup area with feeder mod-
ules. The benefits of offline
setup are that the configura-
tions can be prepared with-
out stopping the line.
This allows the setup to be
changed very quickly using
the DX changeover table
principle. The SIPLACE DX
changeover table also sup-
port fast setting up and tear-
ing down of feeder modules
even during the placement
process.
The component feeders are
at rest during the placement
process - allowing tapes to
be spliced without stopping
the machine.
With the help of an optional
component barcode reader
and the Setup Center option,
the barcodes on the tape
reels can be read and
checked.
This ensures the correct
assignment of components
to tracks and the traceability
of PCB placement with the
Traceability software.
For safety reasons, unoccu-
pied locations are fitted with
so-called dummy feeder
modules.

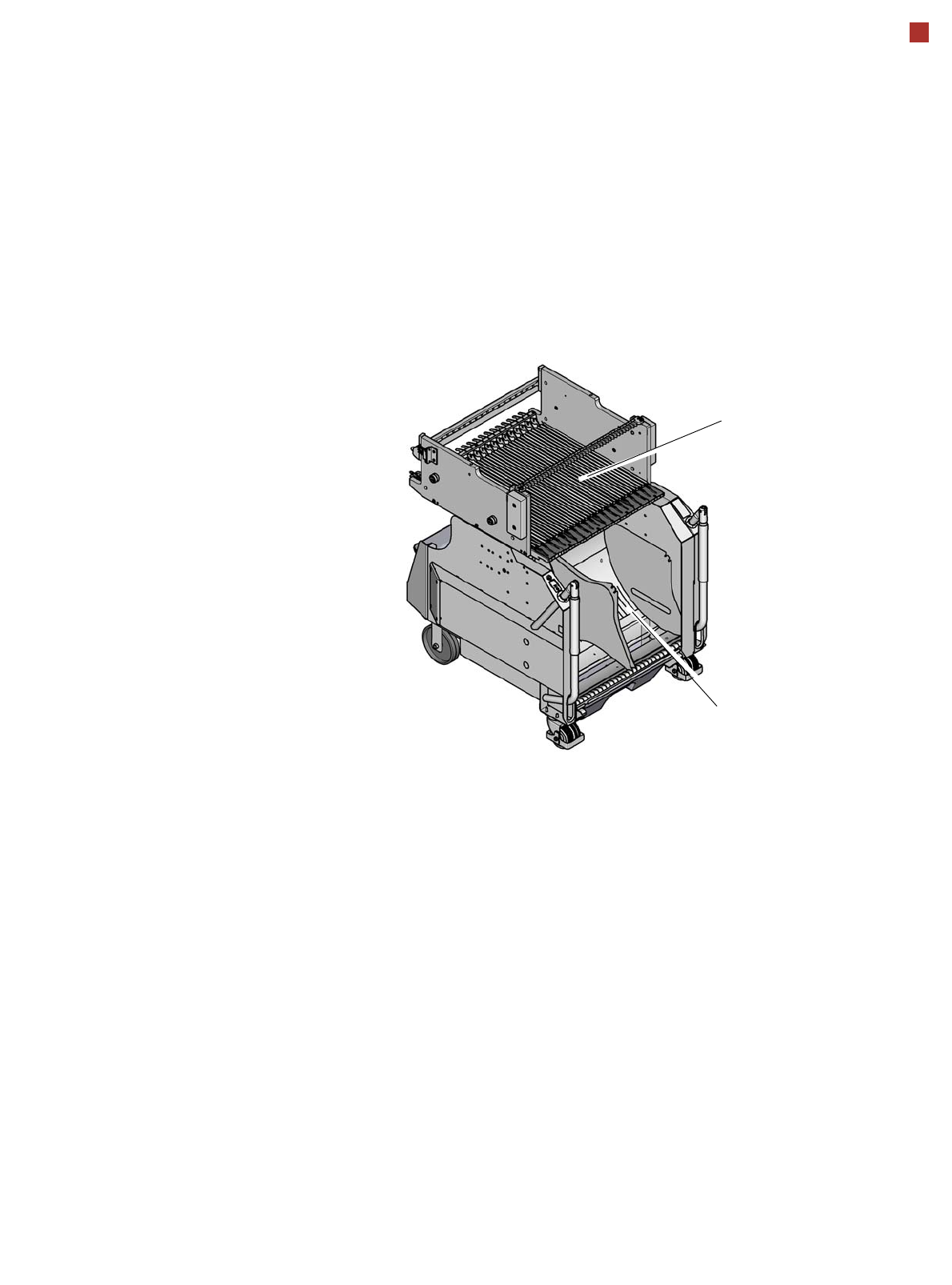

DX changeover table
Tape container
Changeover table
22
Component Feeding
SIPLACE DX Changeover Table (Option)
Technical Data
DX changeover table dimensions
DX changeover table
X (length x width)
752 mm x 592 mm
Height
900 mm (PCB transport height:
930 mm (PCB transport height:
950 mm (PCB transport height:
890 mm
920 mm
940 mm
DX changeover table weight
without feeder modules
fully configured with feeder modules
80.4 kg
139.6 kg
Tape reel diameter 178 mm to 381 mm (7“ - 15“)
Locations for feeder modules max. 40 feeder modules, each with 8 mm
Changeover time for DX changeover tables max. 1 minute
Max. component feeding
(Four DX tables for SIPLACE DX4)
Location 1 and 3:
Location 2 and 4:
74 tape feeder modules, each with 2x8 mm X
40 feeder modules, each with 2x8 mm X
34 feeder modules, each with 2x8 mm X
Feeder module types (SIPLACE X)
With adapter
Tape feeder modules, reject conveyor, stick mag-
azine and label feeder.
23
Component Feeding
X Tape Feeder Modules
SIPLACE X tape feeder
modules are intelligent tape
feeder modules for flexible
production environments,
which simplify upgrading and
conversion tasks consider-
ably. All SIPLACE X feeder
modules support tape splic-
ing as a standard, which pre-
vents machine stoppages
when refilling.
The benefits at a glance:
Conversion-friendly
• The SIPLACE X tape
feeder modules and the
intelligent SIPLACE soft-
ware solutions provide a
fast and efficient change-
over process.
• Omega profiles on the
tape feeder module and
table facilitate safe and
reliable upgrading and
conversion of tape feeder
modules during ongoing
production.
Robust
• Innovative drive technolo-
gy extends the service life
of the X tape feeder mod-
ules.
Intelligent
• A unique tape feeder mod-
ule ID ensures a precise
assignment of the compo-
nent to the tape feeder
module. This makes reli-
able setup verification
very simple.
• Component pitch, feeder
speed and other functions
are automatically set
when the setup program is
downloaded.
High feeding accuracy
• High-precision sensor
technology for path mea-
surement ensures highly
accurate component feed-
ing, even for 01005 place-
ments.
Operator-friendly
• Contactless data and
power transmission make
it easier to attach/remove
the tape feeder modules.
• Controls and displays sup-
port the user with current
information.
Technical Data
Tape feeder
module
L x H
[mm]
Width
[mm]
Tracks Transport
increment
[mm]
Max. tape
height
[mm]
2x8 mm X 587x200 22.9 2 1/2/4/8 3.5
8 mm X
a,b
587x200 10.8 1 1/2/4/8 3.5
12 mm X
a
587x200 22.6 2 4 - 16
c
6.5
Smart Feeder 12 mm X 587x200 22.6 2 4 - 16
b
16
16 mm X
a, d
587x200 34.4 3 4 - 20
c
25
Smart Feeder 16 mm X 587x200 22.6 2 4 - 20
b
16
Changeover time 8 s
a) PSA kit available as an option
b) The maximum number of tracks is reduced
c) In 4mm increments
d) PSA kit standard
