39 Technical Data SMEMA Interface Connector Assignment Signal interface (14 pin connection socket , interface standa rd 1.2) Predecessor station X1 Successor station X2 Pin 1 NOT READY + Pin 1 NOT READY + Pin 2 NOT READY…
38
SIPLACE Service Options
SIPLACE DX4 - Training Courses
Capability Transfer
Equip your team for its daily
work with the training solu-
tions from our Capability
Transfer service. We teach
your staff how to master a
wide range of tasks, such as
the verification of placement
accuracy or the functionality
of SIPLACE feeder modules
in line with SIPLACE stan-
dards. We provide you with
the relevant tools and test
systems for the required
period and can even train or
coach your team in-house at
your company. We also offer
process certification to con-
firm that you verify in accor-
dance with the SIPLACE
standards. Our Capability
Transfer solutions are avail-
able in standard service
packages. Just tell us what
you want and how often.
SMT Academy
The SMT Academy provides
technical training for your
team, covering everything
from basic SIPLACE opera-
tor courses to advanced fol-
low-up training for your
experts. Our courses can
either be held at your com-
pany or at one of our
SIPLACE training centers
worldwide. In addition to
standard training programs,
we can also offer customized
courses to meet your individ-
ual requirements. We recom-
mend that you first perform a
knowledge gap analysis, to
best determine where there
is a need for a knowledge
refresh.
SIPLACE training units are
always on a modular basis.
This means that you can
either book a standard
course or compile your own
training program with the
individual topics required for
your production environ-
ment.
We also offer upgrade train-
ing, in which participants just
learn the differences
between your existing
machine environment and
the new machine platform to
be installed.
If required, we can modify
training contents to suit your
specific needs.
All courses take into account
the roles and responsibilities
of the participants in the pro-
duction environment and can
be conducted either at a
SIPLACE training center or
at your company.
The training courses are pro-
vided in numerous lan-
guages. Ask us for more
details.
Options, Tools and Spares
Machine-related accessories
and options (some specified
in this document), tools for
testing or setting your equip-
ment, and original SIPLACE
spare parts for top quality
repairs are available with our
Options, Tools and Spares
service.
SIPLACE DX4 training courses
Special operator training, maintenance and technical (system configura-
tion and repairs) courses are available for the SIPLACE DX4.
Standard training courses
for SIPLACE DX4
• SIPLACE training for operators
• SIPLACE minor and major main-
tenance training for DX4
• SIPLACE technical training for
DX4
Advanced and customized
training for SIPLACE DX4
• SIPLACE DX4 advanced training
modules
• SIPLACE DX4 upgrade training
modules
Other training courses • SIPLACE programmer training
for SIPLACE Pro
• SIPLACE Vision Training
• SIPLACE feeder care training
39
Technical Data
SMEMA Interface
Connector Assignment
Signal interface (14 pin connection socket, interface standard 1.2)
Predecessor station X1 Successor station X2
Pin 1 NOT READY + Pin 1 NOT READY +
Pin 2 NOT READY – Pin 2 NOT READY –
Pin 3 BOARD AVAILABLE + Pin 3 BOARD AVAILABLE +
Pin 4 BOARD AVAILABLE – Pin 4 BOARD AVAILABLE –
Pin 5 Not in use Pin 5 Not in use
Pin 6 Not in use Pin 6 Not in use
Pin 7 Not in use Pin 7 Not in use
Pin 8 Reserved Pin 8 Reserved
Pin 9 Reserved Pin 9 Reserved
Pin 10 Reserved Pin 10 Reserved
Pin 11 Reserved Pin 11 Reserved
Pin 12 Reserved Pin 12 Reserved
Pin 13 Reserved Pin 13 Reserved
Pin 14 Reserved Pin 14 Reserved
40
Technical Data
SMEMA Interface

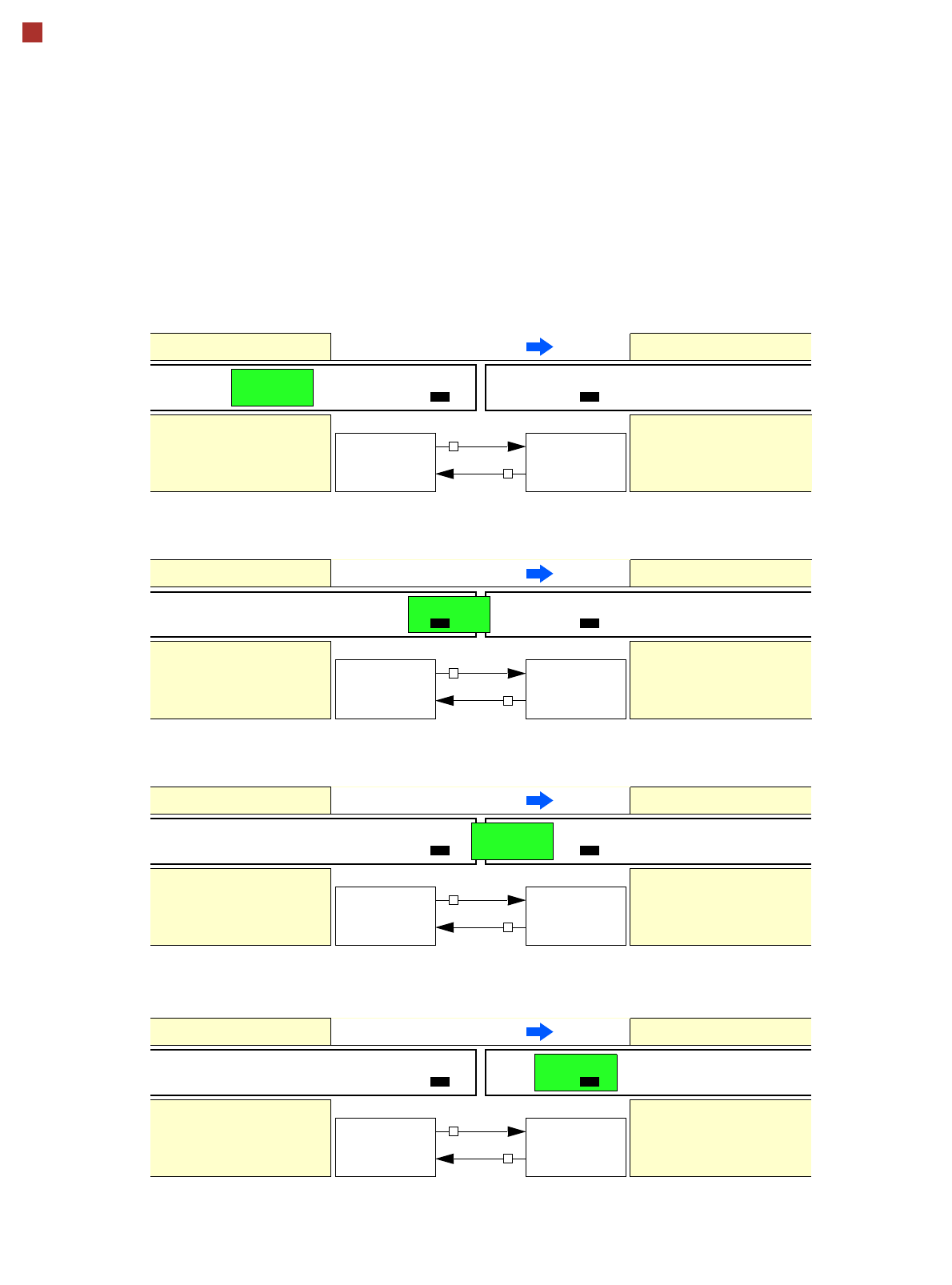

Signal Path
1. After switching on the station
Direction of transport
Conveyor n Conveyor n+1
PCB sensor PCB sensor
Station n transports PCB
to transfer position
Conveyor n running Conveyor n+1
BOARD AVAIL-
ABLE
Permission
Station n+1
is not ready
1
0
2. PCB transfer has started
Direction of transport
Conveyor n Conveyor n+1
PCB sensor
Station n transfers
PCB to station n+1
Conveyor n running Conveyor n+1 running
Station n+1 expects
PCB from station n
3. PCB is transferred
Direction of transport
Conveyor n Conveyor n+1
PCB sensor PCB sensor
Station n has just trans-
ferred PCB
Conveyor n stopped Conveyor n+1 running
Station n+1 expects PCB
from station n, PCB has
not yet arrived
PCB sensor
4. PCB transfer has been completed
Direction of transport
Conveyor n Conveyor n+1
PCB sensor PCB sensor
Station n
Conveyor n stopped Conveyor n+1 running
Station n+1
PCB has arrived
Request
NOT READY
BOARD AVAIL-
ABLE
Permission
1
1
Request
NOT READY
BOARD AVAIL-
ABLE
Permission
0
1
Request
NOT READY
BOARD AVAIL-
ABLE
Permission
0
0
Request
NOT READY
To start a new PCB transfer, both signals must be at least 50 ms "0".
