Technical Data
Electrical Ratings, Energy Consumption and
Compressed Air Supply
Electrical ratings
Supply voltage Fuses
Main power supply
3 x 200 V~ ± 10 %; 50 Hz (North Japan)
3 x 220 V~ ± 10 %; 60 Hz (South Japan)
3 x 208 V~ ± 10 %; 50/60 Hz (U.S.A)
3 x 230 V~ ± 10 %; 50/60 Hz
3 x 380 V~ ± 10 %; 50/60 Hz
3 x 400 V~ ± 10 %; 50/60 Hz (Europe)
3 x 415 V~ ± 10 %; 50/60 Hz
3 x 25 A up to max. 3 x 32 A
3 x 25 A up to max. 3 x 32 A
3 x 25 A up to max. 3 x 32 A
3 x 25 A up to max. 3 x 32 A
3 x 16 A
3 x 16 A
3 x 16 A
Power connector
Cable 5 x 4 mm² 5 x 32 A (3 x 200 V~ / 208 V~ / 220 V~/ 230 V ~)
Cable 5 x 4 mm² with CEKON connector 5 x 16 A (3 x 380 V~ / 400 V~ / 415 V~/ V ~)
Energy consumption
Energy consumption
with vacuum pump
a
a) Vacuum pump is standard for DX4.
Nominal apparent
power
6.00 kVA
Nominal active
power
3.45 kW
Compressed air supply
Compressed air
pressure values
p
min
p
max
0.5 MPa = 5.0 bar
1.0 MPa = 10 bar
Operating pressure
0.48 MPa ± 0.025 MPa (4.8 bar ± 0.25 bar)
Compressed air con-
nection
R 3/4" internal thread (pipe thread) with 1/2" hose connector
Compressed air consumption
b
b) Average consumption values.
Placement head configuration Compressed
air-consumption
a,c
with vacuum pump
c) Under normal atmospheric conditions at 20°C and 1013 hPa.
C&P20/C&P20/C&P20/C&P20 250 Nl/min
Compressed air specification according to ISO 8573
Particle size
(ISO Class 3)
5 µm
Particle density
(ISO Class 3)
5 mg/m³
Maximum oil content
(ISO class 1)
Particle density 0.01 mg/m³
Pressure dewpoint (ISO class 4)
Dewpoint + 3°
44
Technical Data
Electrical Ratings, Energy Consumption and
Compressed Air Supply

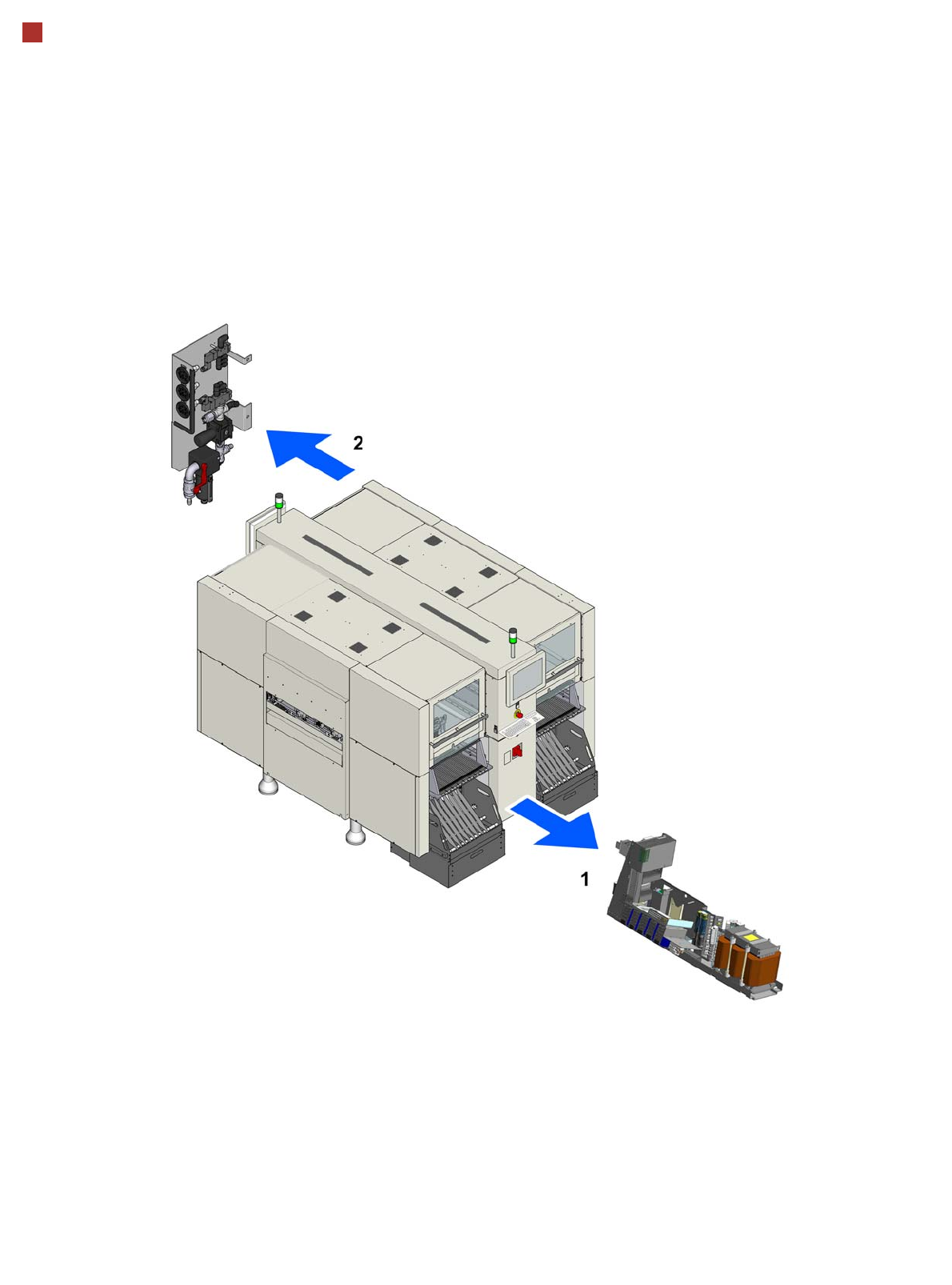

1 = Electrical connection
2 = Compressed air connection
The connections are run into the machine from below and then connected to the power
supply of pneumatic unit.
45
Technical Data
Dimensions and Setup Conditions
Length 1900 mm
Width 2735 mm
Height of machine (for PCB conveyor height 930 mm)
up to upper edge of monitor
with indicator lamp
with folded-up protective covers
1630 mm
2110 mm
2120 mm
Machine ground clearance
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
120 mm ± 15 mm
150 mm ± 15 mm
170 mm ± 15 mm
Weight
DX4 with 4x DX tables (empty)
DX4 with 4x DX tables (fully configured)
3460 kg
3938 kg
Location
DX4 with 4x DX tables 6.87 m²
Load per unit area
DX4 with 4x DX tables 6.34 kN/m²
Number of machine feet 6
Maximum noise emissions 75 dB (A)
Room temperature between 15°C and 35°C
Atmospheric humidity 30% to 75 % (no higher than 45% on average to
prevent any possibility of condensation on the
machine)
