47 Technical Data Placement System Center of Gravity X = 0 mm Y = 0 mm Z = 630 mm
46
Technical Data

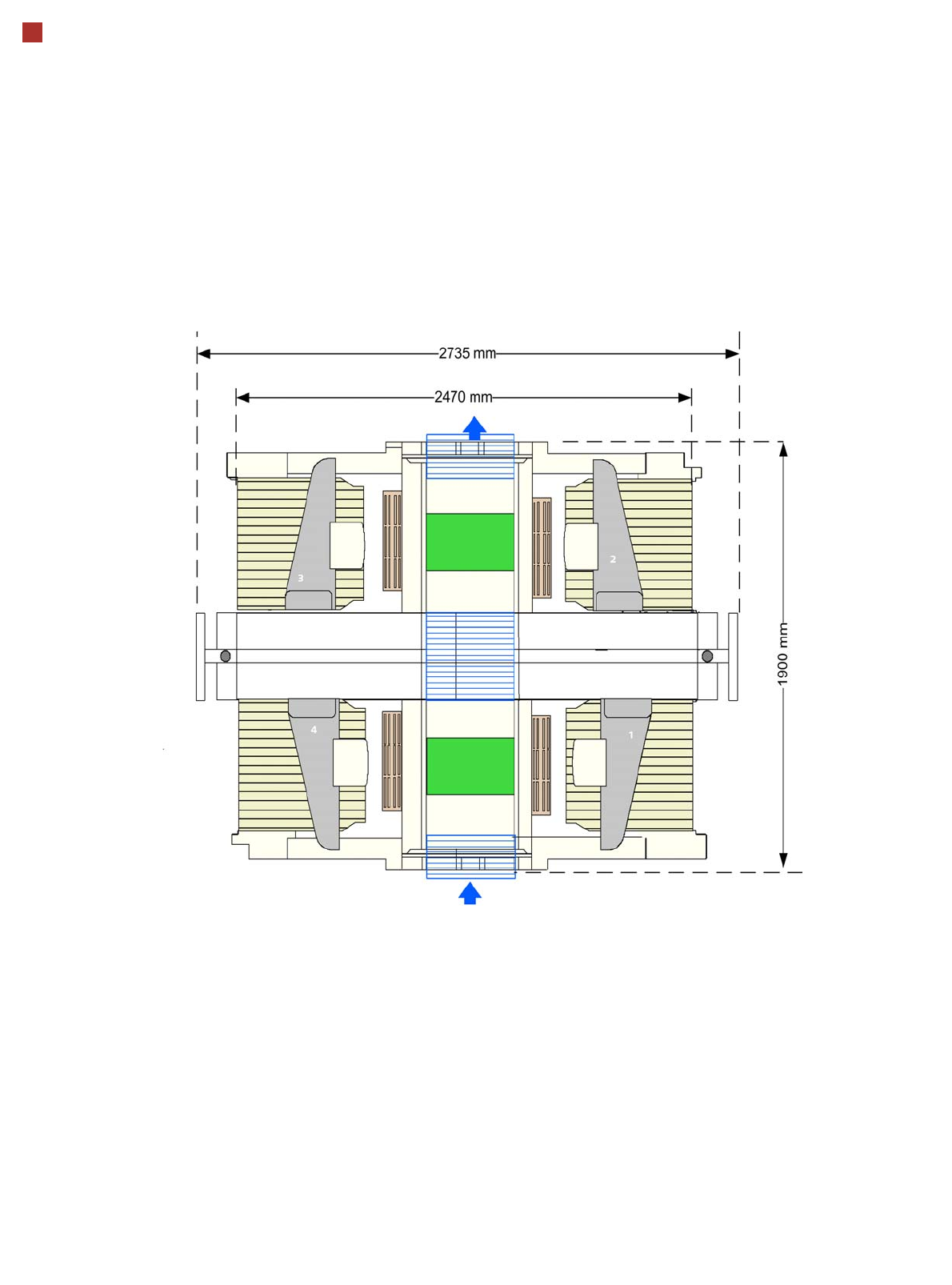

Placement System Dimensions
47
Technical Data
Placement System Center of Gravity
X = 0 mm
Y = 0 mm
Z = 630 mm
48
Technical Data
Maneuvering Radii for DX Changeover Tables
Maneuvering radius R 600 mm
Distance L1: Machine center to outer edge of X component
trolley
1257.50 mm
Distance L2: Machine center to wall 1857.50 mm
