48 Technical Data Maneuvering Radii for DX Changeover Tables Maneuvering radius R 600 mm Distance L1: Machine center to outer edge of X co mponent trolley 1257.50 mm Distance L2: Machine center to wall 1857.50 mm
47
Technical Data

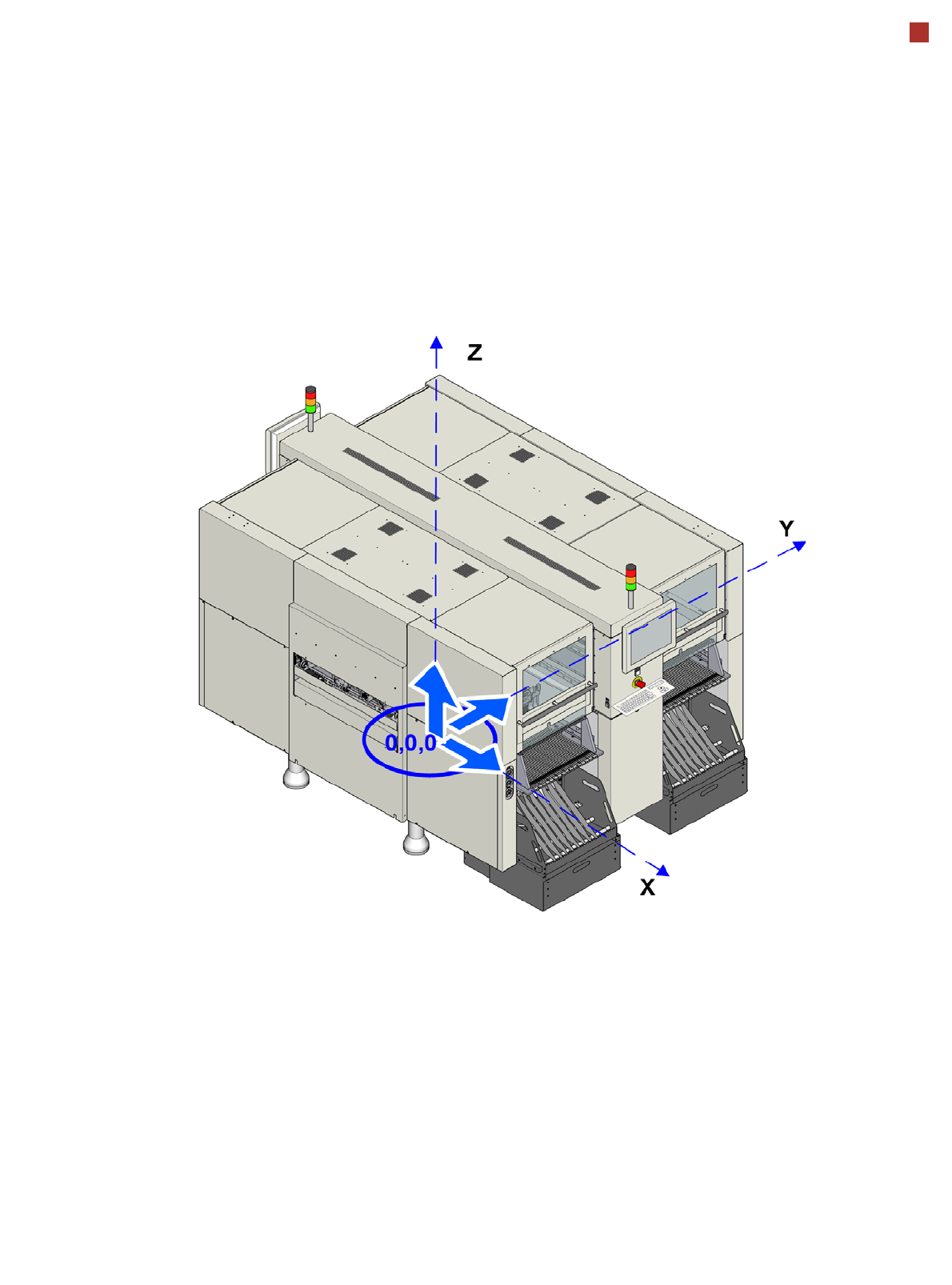

Placement System Center of Gravity
X = 0 mm
Y = 0 mm
Z = 630 mm
48
Technical Data

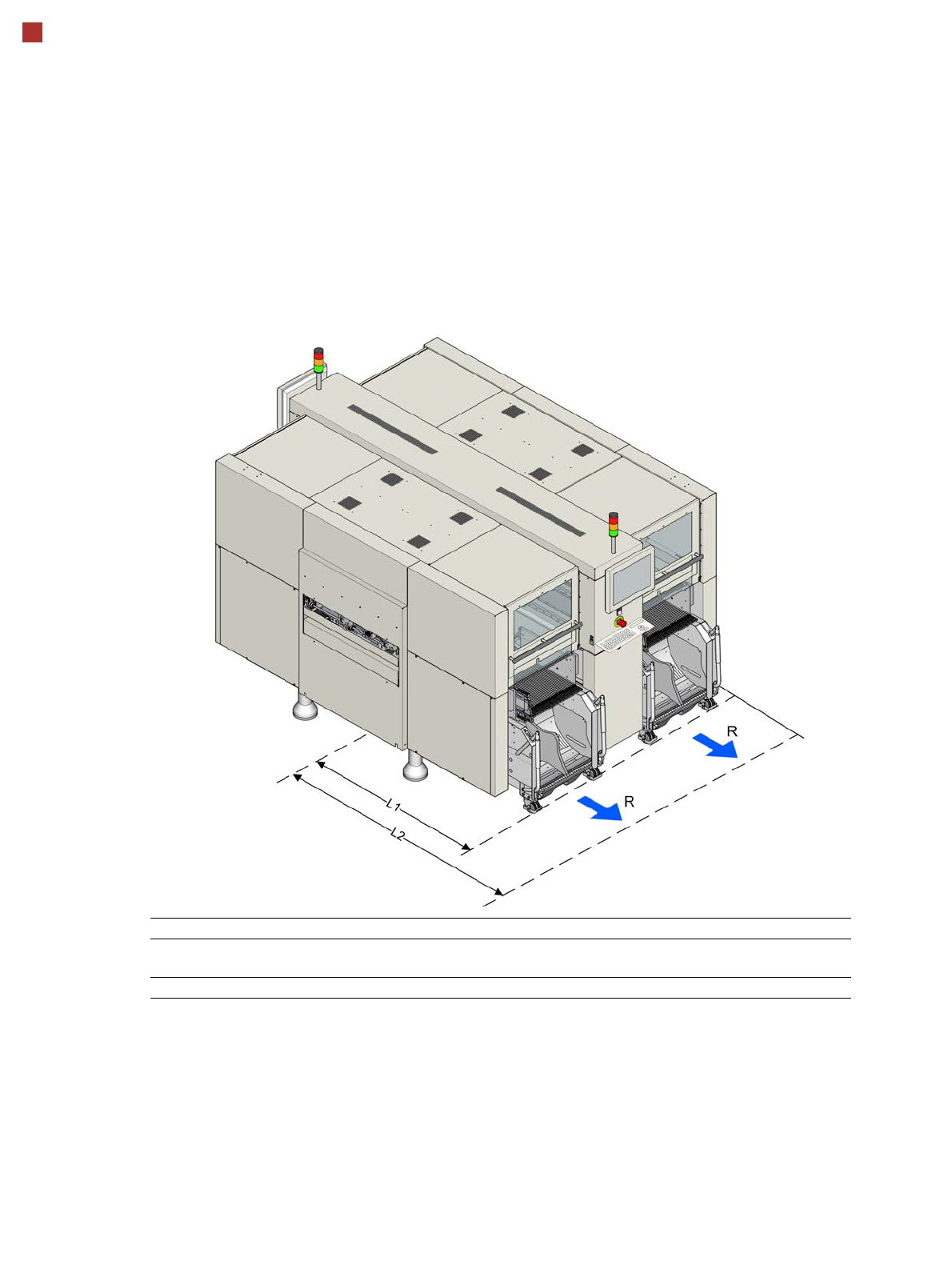

Maneuvering Radii for DX Changeover Tables
Maneuvering radius R 600 mm
Distance L1: Machine center to outer edge of X component
trolley
1257.50 mm
Distance L2: Machine center to wall 1857.50 mm
49
Technical Data

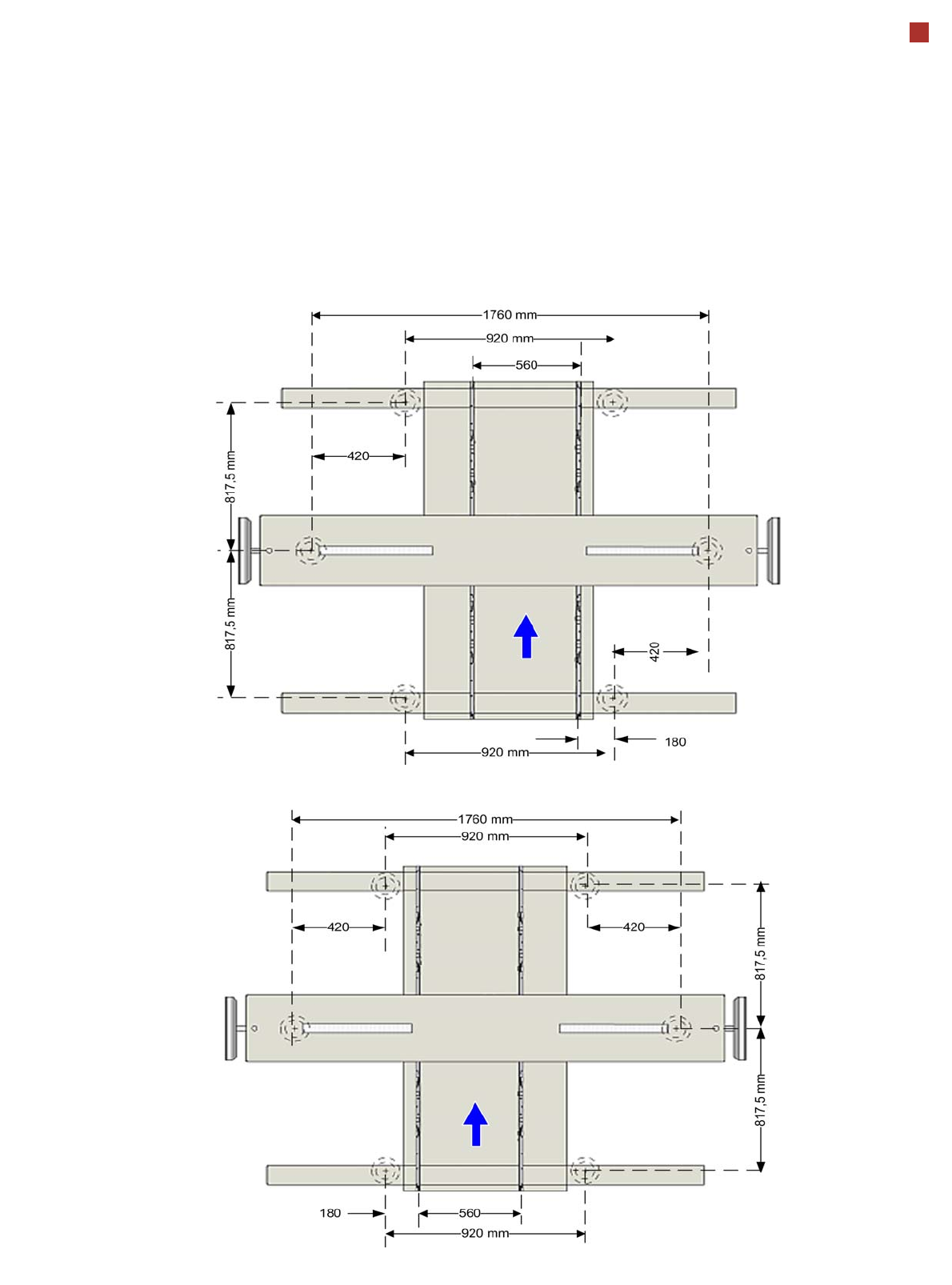

Spacing Distances for the Single Conveyor
Fixed conveyor side at
maximum right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at maxi-
mum left position
a
.
