50
Technical Data

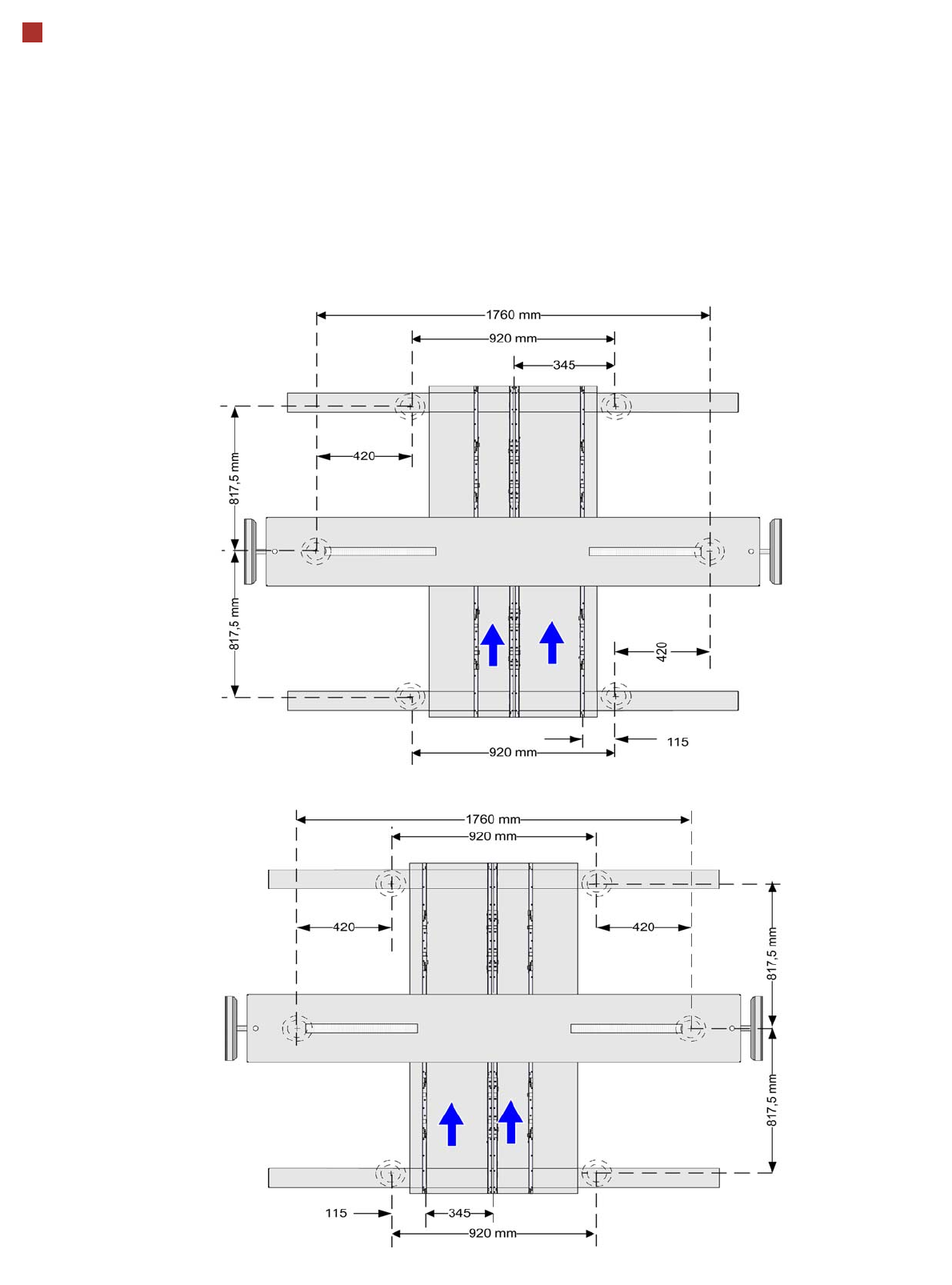

Spacing Distances for the Flexible Dual Conveyor
Fixed conveyor side at
maximum right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at maxi-
mum left position
a
.
51
Technical Data
Transport and Delivery Configuration
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• Both keyboards, the oper-
ating panel and the moni-
tors are dismantled.
• The indicator lamp is dis-
mantled.

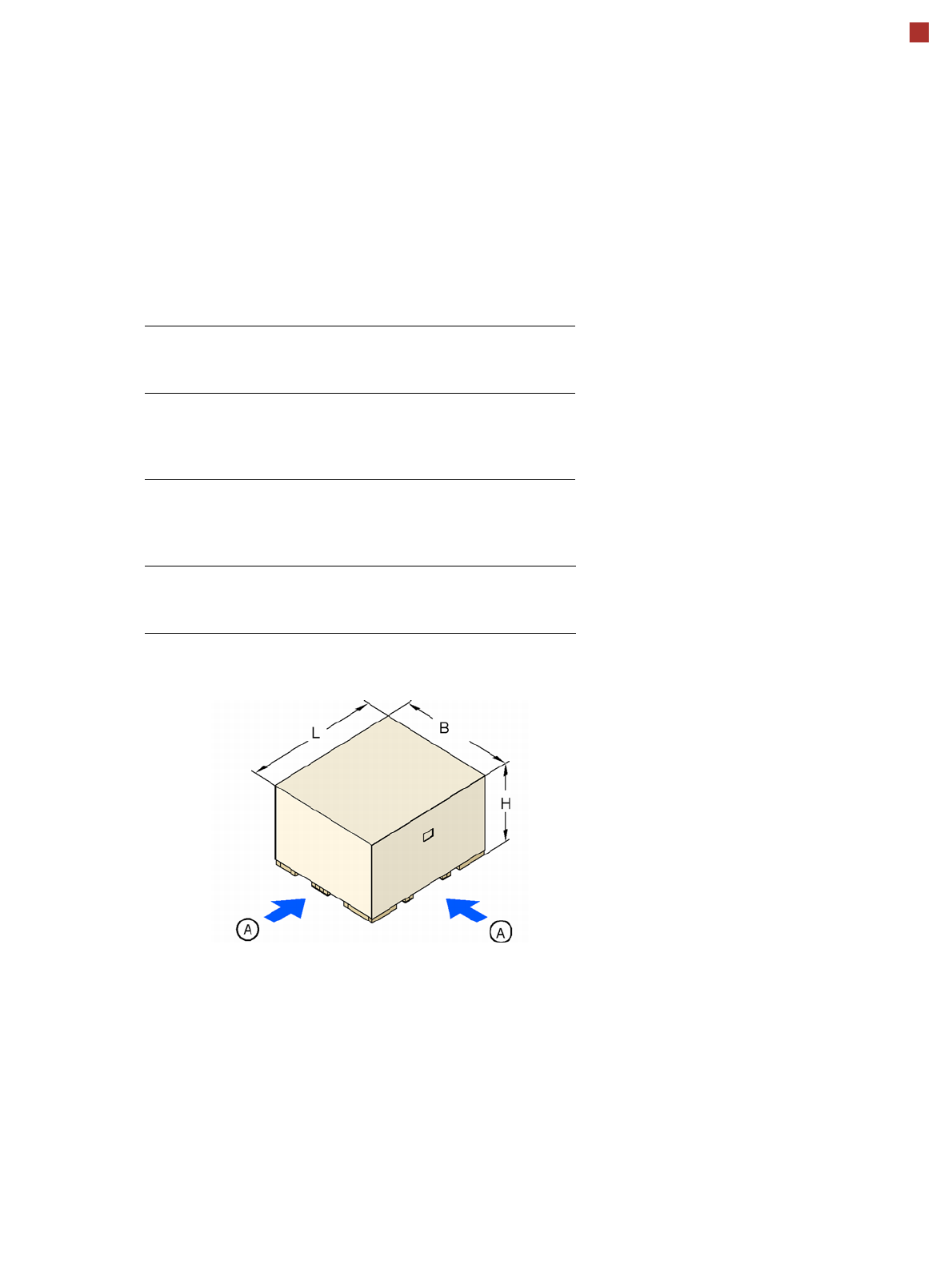

Transport dimensions and weight
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Length
Width
Height
2404 mm
2790 mm
1600 mm
Weight
DX4
Dispatch Dispatch
within Europe overseas
3859 kg 4359 kg
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
Attachment point
for the fork-lift
Attachment point
for the fork-lift
52
Standard Features
The following functions are included in the standard SIPLACE DX4 package:
Standard features DX4
Vacuum pump X
Vacuum sensor X
Force measurement X
Fiducial & ink spot detection X
Set of standard nozzles per head X
Service box X
Automatic electrical PCB width adjustment X
Operation on both sides X
LCD monitors X
Touch-screen monitor X
3-part signal lamp X
Tape cutter with reject bin X
Tape separating plates X
01005 Placement X
Support pins X
