6 Machine Description Intelligent Placement Machine The SIPLACE DX is the lat- est innovatio n from the pio- neering SIPLAC E team. This state-of-the-a rt, intelligent production family is aimed at electronics manufactur…

Overview of Technical Data

Maximum Values

Placement performance

IPC value

Benchmark value

Theoretical value

a) Definition of performance values see page 11.

102,000 comp./h

125,000 comp./h

135,500 comp./h

Component spectrum 01005 - 6 mm x 6 mm

Placement accuracy

angular accuracy

b) Accuracy values measured in accordance with vendor-neutral IPC standard.

± 41 µm, ± 0.5° / (3),

± 55 µm, ± 0.7° / (4

)

Feeder module types Tape feeder modules

Feeding capacity 148 tracks

(e.g. for 74 tape feeder modules, each of

2x8 mm X)

Board format (length

x width)

c) The "Long Board Option" is required from 285 mm onwards.

550mm x 560mm

PCB thickness 0.3 - 4.5 mm

PCB weight up to 2.0 kg

Camera 5 illumination levels

Machine colors for SIPLACE DX4

Machine frame: Light gray

(RAL 7047)

Handles: Dark pearl gray

(RAL 9023 )

Covers: Light gray

(RAL 7047)

Machine Description

Intelligent Placement Machine

The SIPLACE DX is the lat-

est innovation from the pio-

neering SIPLACE team. This

state-of-the-art, intelligent

production family is aimed at

electronics manufacturers

looking for highly reliable and

cost-effective placement

solutions. Designed specifi-

cally for the Asian market,

this new production line

offers dependable top qual-

ity, coupled with high place-

ment speeds, enhanced

configuration and component

spectrum flexibility and sim-

ple operation with a competi-

tive price/performance ratio.

We call this our

INTELLIGENT solution:

•INTELLIGENT

placement optimization

•INTELLIGENT

configuration strategies

•INTELLIGENT

operation

Intelligent Placement Opti-

mization: top performance

with SIPLACE DX4

With a theoretical placement

capacity of 135,000 compo-

nents per hour, the SIPLACE

DX4 is the peak performance

model in the new product

family. The equally outstand-

ing actual performance of

90,000 components per

hour, measured in accor-

dance with the IPC standard,

puts the SIPLACE DX4 in a

class of its own when com-

pared to other models on the

market.

One of the secrets behind

the success of the DX4 is the

fourfold use of the powerful

SIPLACE 20-segment

Collect&Place head. Compo-

nents are picked up from the

DX table by 20 segments,

while a further 20 segments

on the other head simultane-

ously perform placement.

This dual-action process is

mirrored in the second place-

ment area. Speedy place-

ment is achieved irrespective

of the components used;

everything up to a 6x6 mm

edge length, including tiny

01005 components, can be

processed in mass produc-

tion and at top speeds by the

SIPLACE DX4.

The SIPLACE DX also uses

linear drives for all axes. This

technology facilitates and

supports highly accurate and

rapid placement.

However, the performance of

the production line as a

whole is even more decisive

for electronics manufacturers

than that of individual

machines. This is where the

processing capacity of the

software used plays an ever

increasing role. The

SIPLACE DX range demon-

strates its muscles with the

popular SIPLACE Pro soft-

ware and employs additional

optimization programs to bal-

ance and get the most out of

your production line.

The SIPLACE DX4 solution

combines great actual per-

formance with optimum qual-

ity - in a space-saving

design.

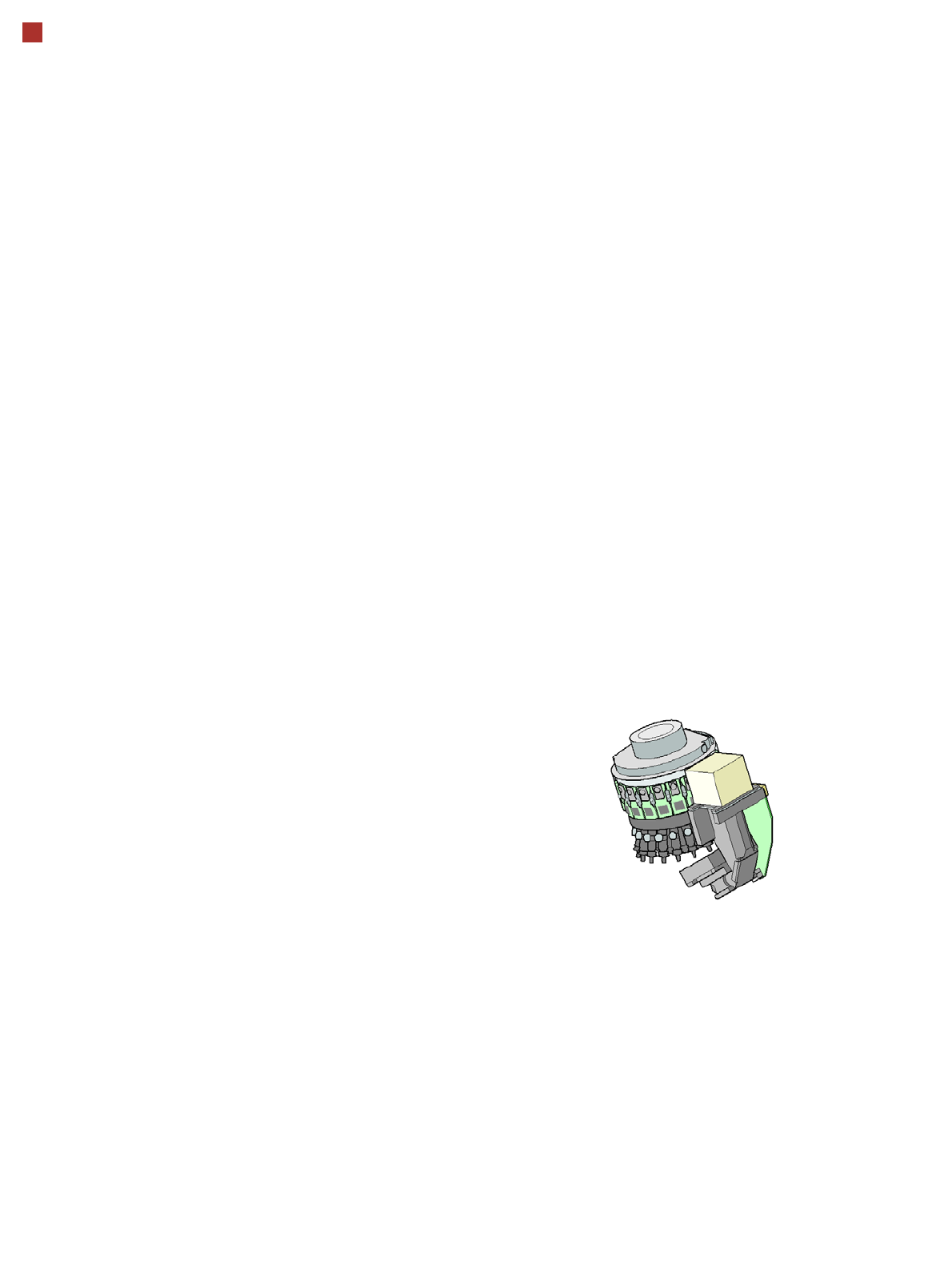

SpeedStar (C&P20)

Machine Description

Intelligent Placement Machine

INTELLIGENT Configura-

tion Strategies

One example of intelligent

configuration strategies are

the customized SIPLACE DX

tables, on which the feeder

modules and components

are set up for the machine.

The financial benefit of fixed

tables on the SIPLACE DX

machine is coupled with

innovative software and the

intelligent SIPLACE X feeder

modules. This facilitates

implementation of highly flex-

ible setup concepts, with

minimum time required for

setup and product change-

overs.

The SIPLACE DX supports a

wide variety of setup con-

cepts, despite the fixed table

installations. Intelligent

2x8mm feeder modules com-

plete the flexible configura-

tion concept. These can be

pre-configured at a separate

pre-setup area, away from

the line, and then linked to

the component reel via the

software (component kitting).

The complete feeder module

is then docked into the

machine where all configura-

tion details (e.g. component

type and pitch) are recog-

nized.

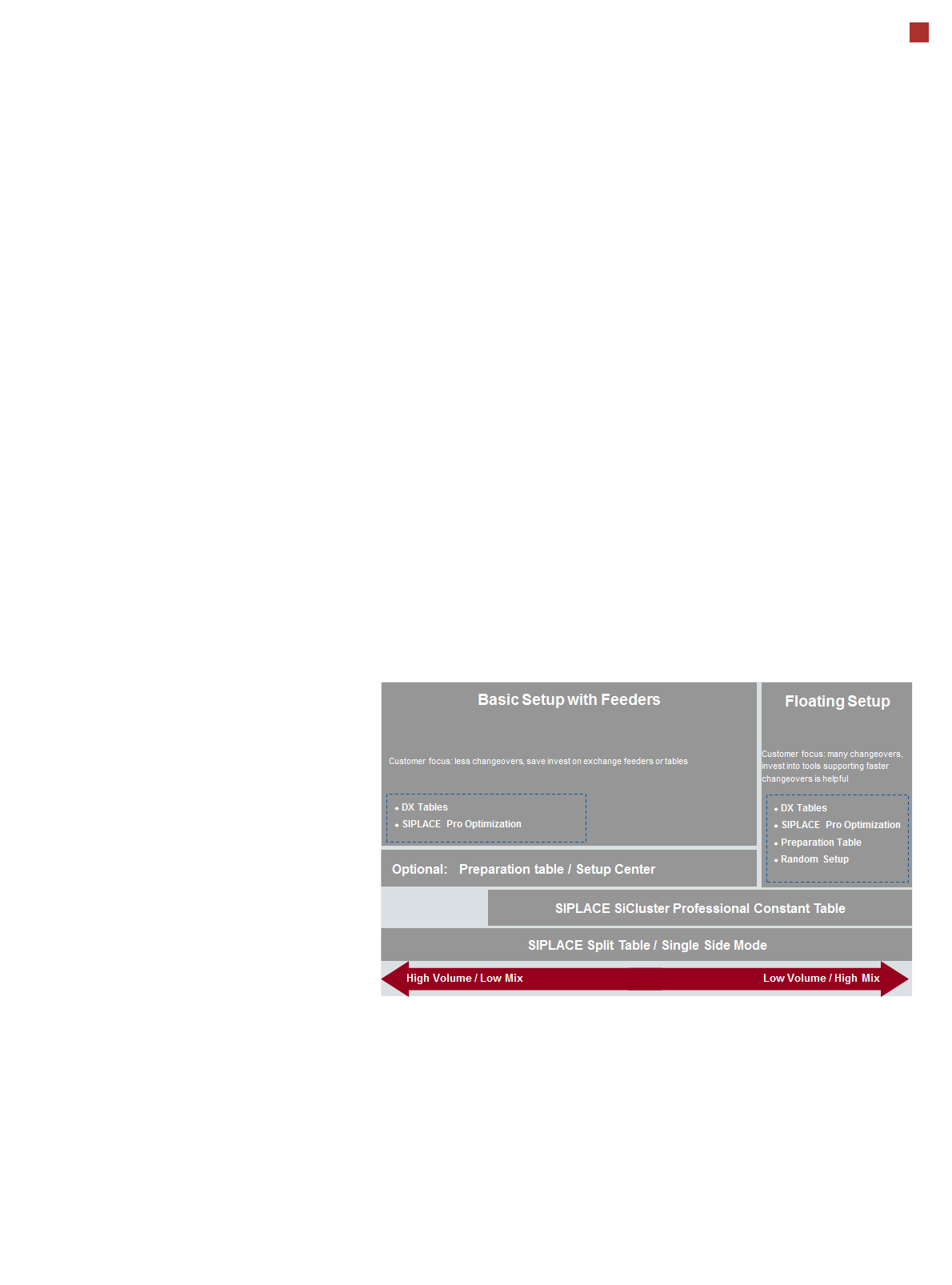

New in this class: the large

range of setup concepts

Fixed setups, family setups,

random setup, offline pre-

setups, split table mode and

much more: the high-perfor-

mance SIPLACE Pro and

SIPLACE Setup Center soft-

ware and the ability to

change SIPLACE X feeder

modules during ongoing pro-

duction, gives SIPLACE DX

users access to a range of

setup concepts previously

unknown in this price class.

Electronics manufacturers

will enjoy a new level of flexi-

bility, leading to a significant

reduction in setup change-

over times and the frequency

of related errors, thereby

achieving great line utiliza-

tion and enhanced efficiency

and productivity figures.
