Axis Dynamics
Axis Dynamic Basics
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Axis Dynamics
7-1
7 Axis Dynamics
7.1 Axis Dynamic Basics
Each axis starts from a position with acceleration a constant speed phase and deceleration should move
the axis into a target position. The dynamic movement of the axis on the SIPLACE machine is regulated

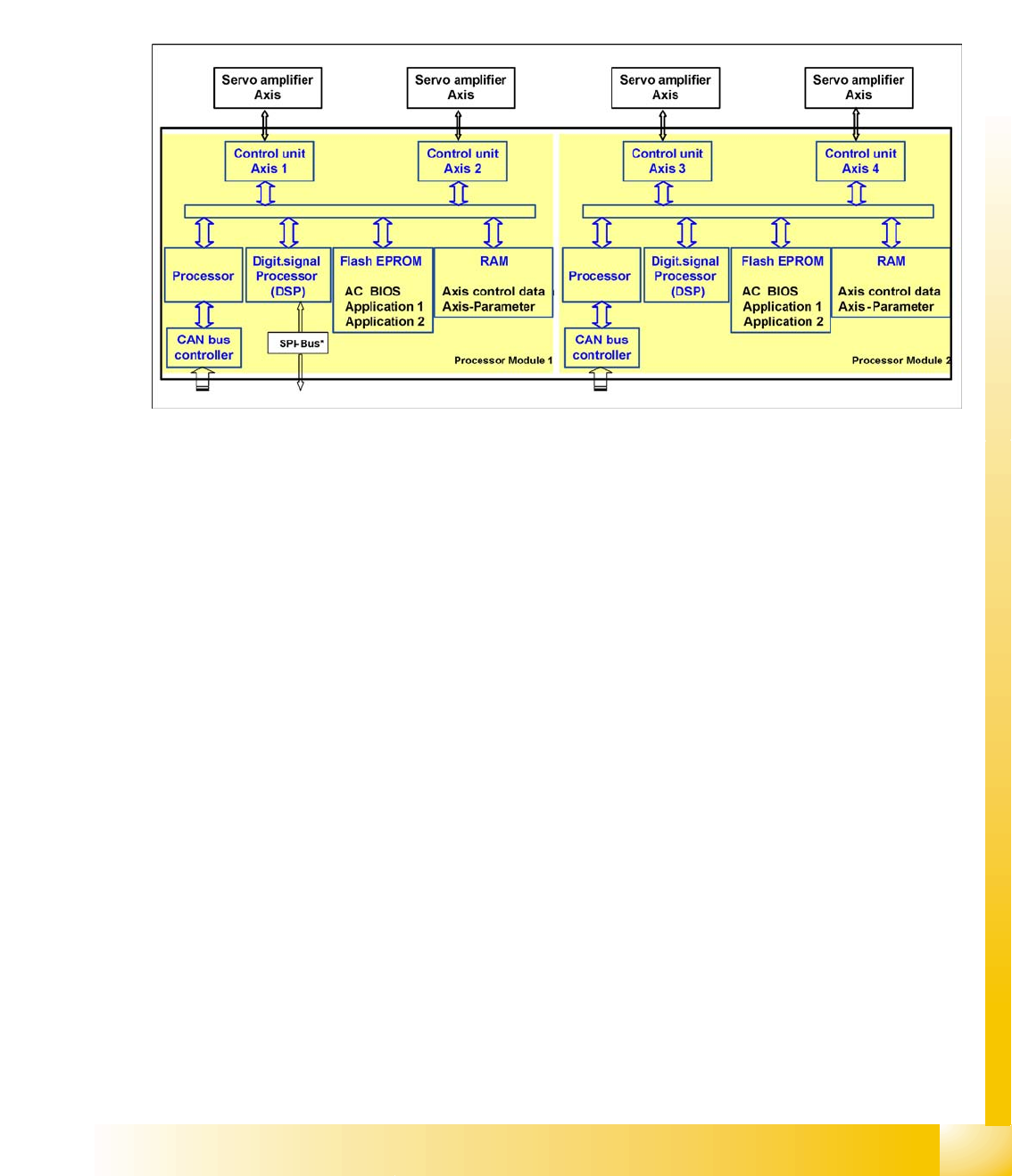

by a digital control system. A powerful digital processor in the A364 axis controller permanently adjusts
the axis dynamic to each axis state.
This means, that all adjustments for speed (Tacho) and positioning quality (P-gain) on the servo amplifier
are removed. The control signals are different for this new axis control principle.
Axis Dynamics
Axis Dynamic Basics
Student Guide Advanced Level 2 SIPLACE D Series
Axis Dynamics EN 05/2007
7-2

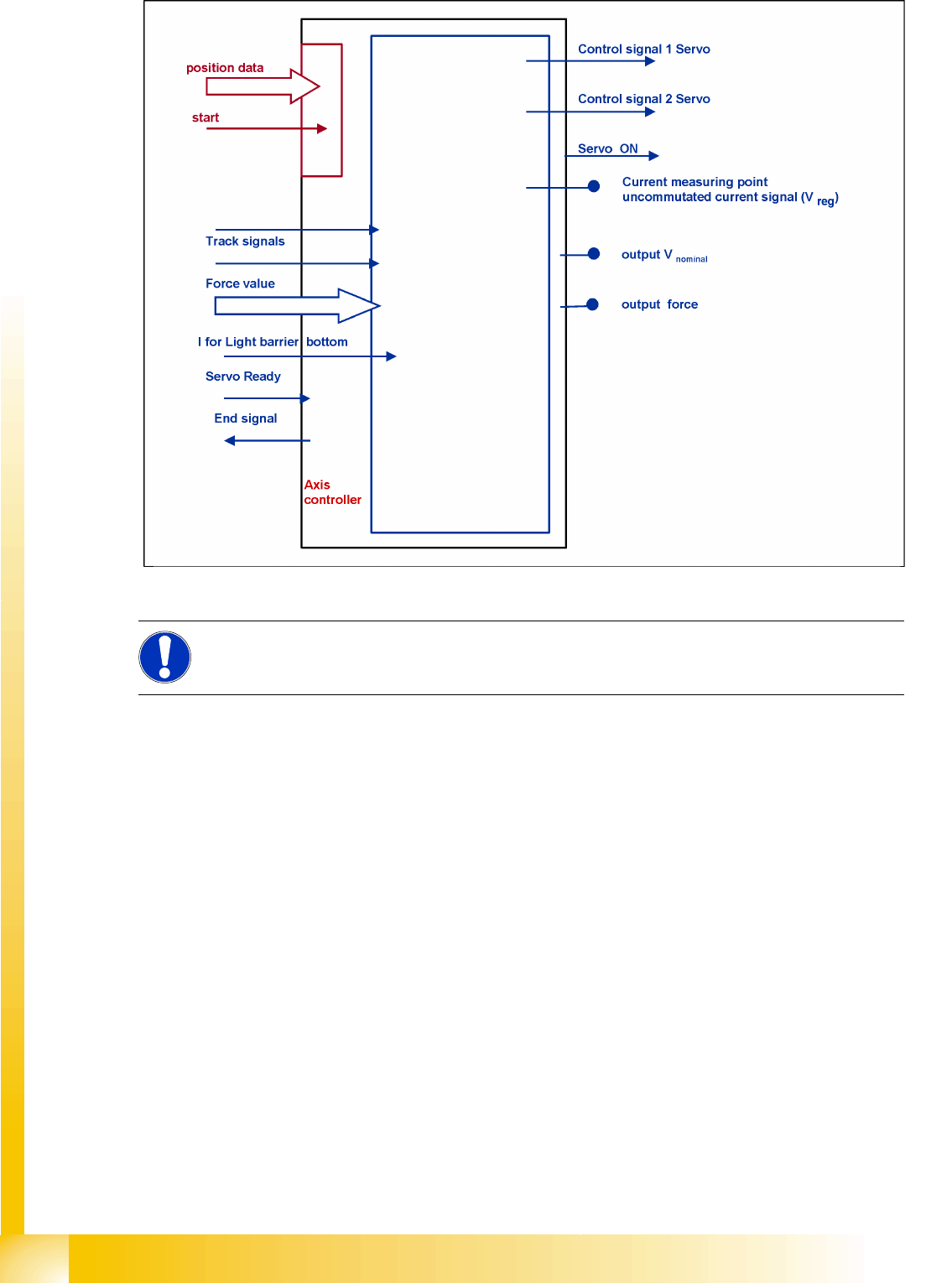

7-1: Digitally controlled axes with A364 for SIPLACE machines
During initial positioning into the target position, the actual equals target position signal triggers an
overshoot count in the SIPLACE Axis Tester, for calculation of the position deviation signal.
If the overshoot is greater than the permitted position deviation (13 digits) for this axis, the end position
signal will be delayed until the deviation has been regulated to remain within the permitted range.
If the axis nears the permitted target position, axis parameters which do not tend to produce overswings
are used. This effective and fast method of regulation seldom produces overswings and has the added
benefit of shorter waiting times for overswing checks (5 ms).
NOTE:
The position deviation signal shows the positioning quality of an axis movement in position.
