Modular Conveyor Overview – Conveyor Systems in D-Series Functions S tude nt Guide Advanced Level 2 SIPLACE D Series EN 05/2007 Modular Conveyor 10-5 Lifting table Clamping Upwards Drive Pneumatic cylinder Damper at top …
Modular Conveyor
Functions Conveyor Control TSP 201
Student Guide Advanced Level 2 SIPLACE D Series
Modular Conveyor EN 05/2007
10-4
10.1.10 Conveyor Control TSP 201
The conveyor control TSP 201 is used for the 3-part conveyor paths of the D1 and D2 machines. It
supports the following options:
Left conveyor side fixed (default: right conveyor side fixed)
"Long PCB" option
PCB Alignment pin
Vacuum tooling
PCB barcode
Interface for PCB handling signals with SCHEMA standard/ optional PCB handling signals for
SIEMENS standard
10.1.11 Conveyor Control TSP 301
The conveyor control TSP 301 is used for the 5-part conveyor paths of the D3 and D4 machines. It
supports the following options:
Left conveyor side fixed (default: right conveyor side fixed)
"Long PCB" option
PCB Alignment pin
Vacuum tooling
PCB barcode
Interface for PCB handling signals with SCHEMA standard/ optional PCB handling signals for
SIEMENS standard
10.1.12 Overview – Conveyor Systems in D-Series
Assembly D4 D3 5-part conveyor system
Conveyor control
TSP301 YES
Extension assembly for DT YES
SMEMA Option This may be the standard in the USA, meaning
that you would need other cables between the
machines!
Siemens PCB handling
interface
Standard Switchable via jumpers but can NOT be edited in
SITEST configuration window.
Conveyor (TSP) conversion
board
YES
Conveyor (TSP) side
conversion board
2 or 4 3 or 4
DIP switch 1, 2 ON
3-8 OFF
1 ON
2-8 OFF
Download eSW (firmware) 05 06
PCB recognition
Light barrier Transmitter red, left
PCB stop in PA Optical, LASER
Movement to LASER Time-controlled slow speed
Modular Conveyor
Overview – Conveyor Systems in D-Series Functions
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Modular Conveyor
10-5
Lifting table
Clamping Upwards
Drive Pneumatic cylinder
Damper at top YES
Dual TSP lifting tables Can be coupled
PCB clamping length 368 mm Specified PCB clamping length 460 mm
Assembly D2 D1 3-part conveyor system
Conveyor control
TSP201 YES
Extension assembly for DT ---
SMEMA Option Can be switched via jumper and needs an
interface box and other cables between the
machines
Siemens PCB handling
interface
Standard
Conveyor (TSP) conversion
board
YES
Conveyor (TSP) side
conversion board
2 or 4 3 or 4
DIP switch, single conveyor 2, 4, 5 ON
1, 3, 6 OFF
2, 4 ON
1, 3, 5, 6 OFF
DIP switch (5) D2 must be set, DIP switch D1
does not need to be set, as on the label!
DIP switch, dual conveyor 1, 2, 4, 5 ON
3, 6 OFF
1, 2, 4 ON
3, 5, 6 OFF
Download eSW (firmware) 04
PCB recognition
Light barrier Transmitter red, left
PCB stop in PA Optical, LASER
Movement to LASER Time-controlled slow speed
Lifting table
Clamping Upwards
Drive Pneumatic cylinder
Damper at top YES
Dual TSP lifting tables Can be coupled
PCB clamping length 440 mm Specified PCB length: 460 mm
Assembly D4 D3 5-part conveyor system
Modular Conveyor
Functions Single Conveyor - Design
Student Guide Advanced Level 2 SIPLACE D Series
Modular Conveyor EN 05/2007
10-6
10.1.13 Single Conveyor - Design

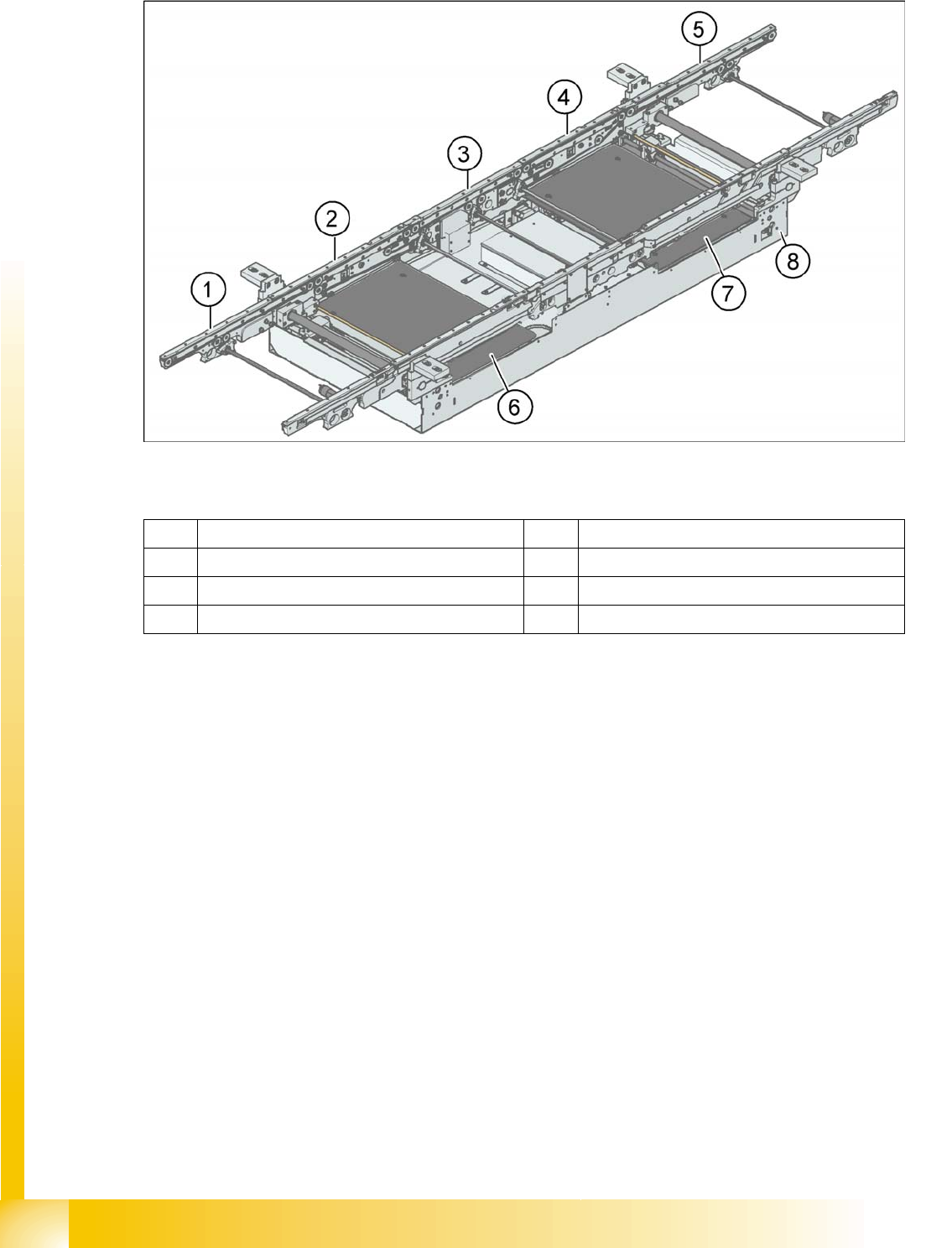

10-1: PCB conveyor – single conveyor (D3/D4)
Legend
The single conveyor in the SIPLACE D3/D4 machines consists of the input conveyor, two placement
areas, the intermediate conveyor and the output conveyor. The conveyor has automatic width
adjustment and a lifting table to clamp the PCBs in place.
1 Input conveyor 5 Output conveyor
2 Placement area 1 6 Lifting table placement area 1
3 Intermediate conveyor 7 Lifting table placement area 2
4 Placement area 2 8 Assembly tub
