Modular Conveyor
Dual Conveyor - Design Functions
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Modular Conveyor
10-7
10.1.14 Dual Conveyor - Design

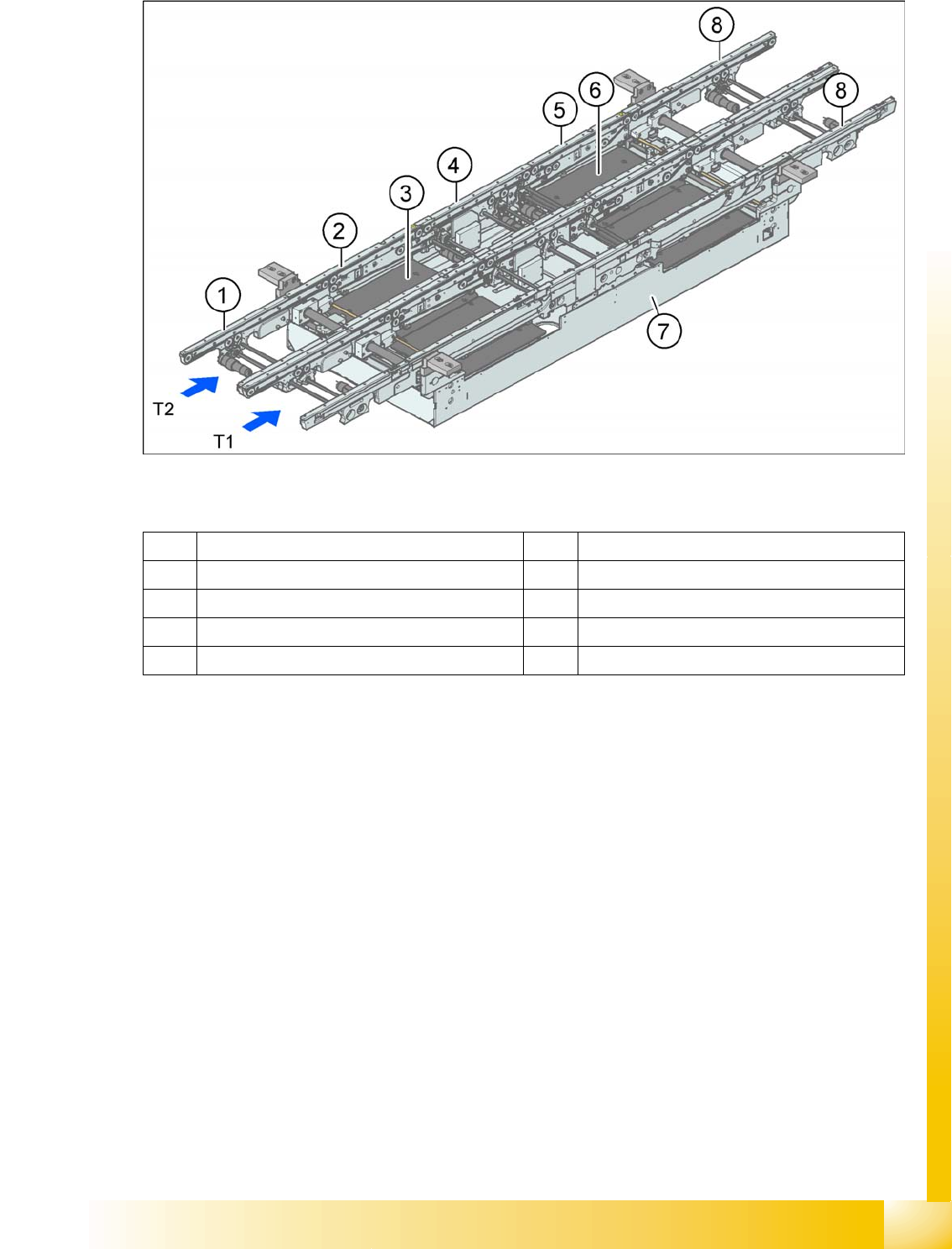

10-2: PCB conveyor – dual conveyor (D3/D4)
Legend
The dual conveyor consists of two conveyor lanes. In the standard model, the fixed conveyor side is on
the right side of each lane.
1 Input conveyor 6 Lifting table placement area 2
2 Placement area 1 7 Assembly tub
3 Lifting table placement area 1 8 Output conveyor
4 Intermediate conveyor T1 Conveyor lane 1
5 Placement area 2 T2 Conveyor lane 2
Modular Conveyor
Functions Measuring Points and Belt Tensions for D1/D2 Conveyor
Student Guide Advanced Level 2 SIPLACE D Series
Modular Conveyor EN 05/2007
10-8
10.1.15 Measuring Points and Belt Tensions for D1/D2 Conveyor
10.1.16 Measuring Points and Belt Tensions for D3 Conveyor
Legend

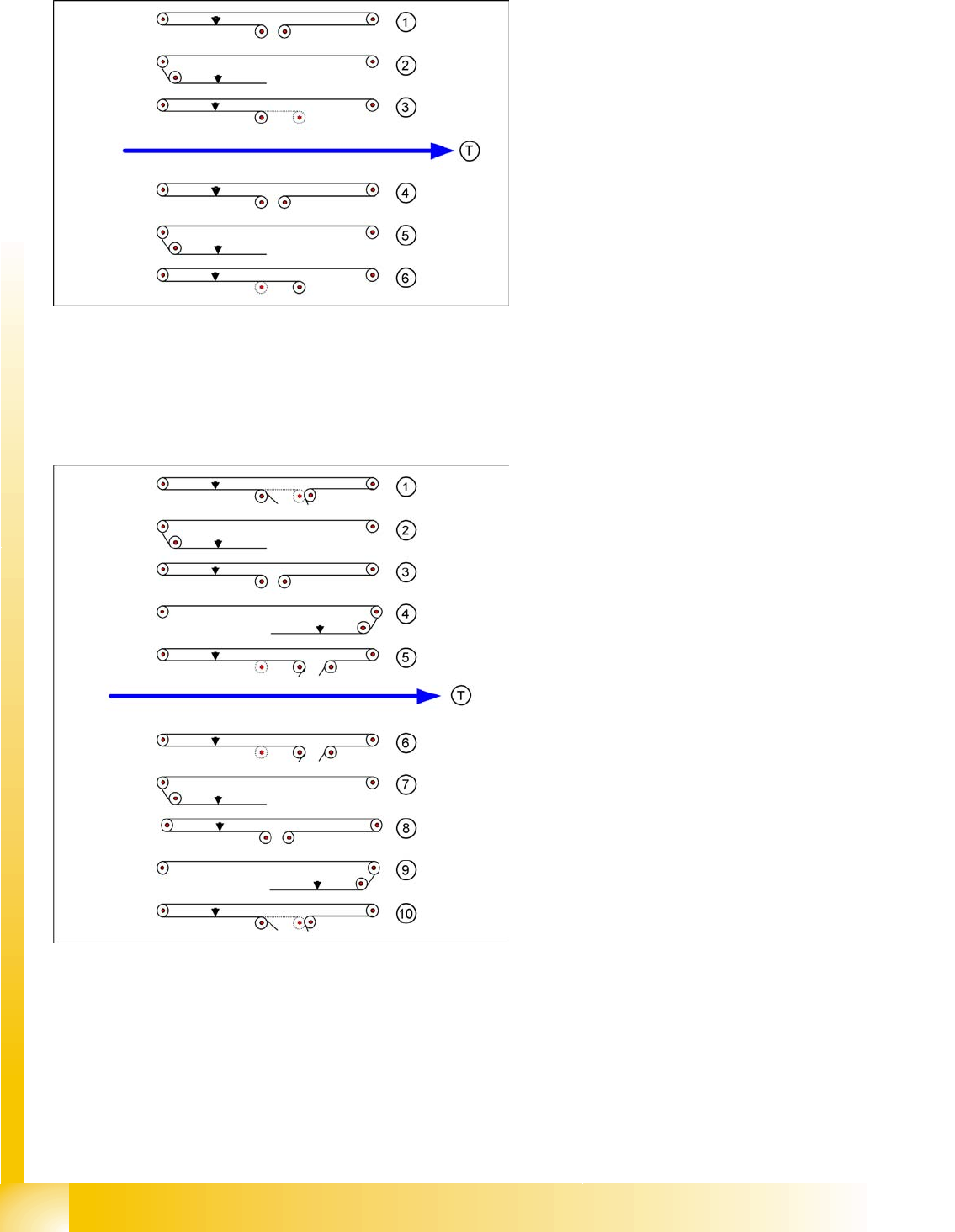

Measuring points (arrow) and values for conveyor
belt tensions:
Single conveyor or dual conveyor, track 1
1. Input conveyor: 98 +/-10 Hz
2. Processing area: 64 +/- 6 Hz
3. Output conveyor: 100 +/- 10 Hz
Dual conveyor, track 2
4. Input conveyor: 98 +/- 10 Hz
5. Processing area: 69 +/- 7 Hz
6. Output conveyor: 84 +/- 8 Hz
Width adjustment
Width adjustment: 24 +/- 2 Hz
Legend
Measuring points (arrow) and values for conveyor
belt tensions:
Single conveyor or dual conveyor, track 1
1. Input conveyor: 102 +/-10 Hz
2. Processing area 1: 66 +/- 7 Hz
3. Intermediate conveyor: 94 +/- 9 Hz
4. Processing area 2: 66 +/- 7 Hz
5. Output conveyor: 144 +/- 14 Hz
Dual conveyor, track 2
6. Input conveyor: 144 +/- 14 Hz
7. Processing area 1: 66 +/- 7 Hz
8. Intermediate conveyor: 94 +/- 9 Hz
9. Processing area 2: 66 +/- 7 Hz
10. Output conveyor: 102 +/- 10 Hz
Width adjustment
Width adjustment: 30 +/- 2 Hz
Modular Conveyor
Measuring Points and Belt Tensions for D4 Conveyor Functions
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Modular Conveyor
10-9
10.1.17 Measuring Points and Belt Tensions for D4 Conveyor
10.1.18 Overview of Flexible Single Conveyor
Legend
Measuring points (arrow) and values for conveyor
belt tensions:
Single conveyor or dual conveyor, track 1
1. Input conveyor: 90 +/- 9 Hz
2. Processing area 1: 72 +/- 7 Hz
3. Intermediate conveyor: 144 +/- 14 Hz
4. Processing area 2: 90 +/- 9 Hz
5. Output conveyor: 90 +/- 9 Hz
Dual conveyor, track 2
6. Input conveyor: 90 +/- 9 Hz
7. Processing area 1: 72 +/- 7 Hz
8. Intermediate conveyor: 115 +/- 12 Hz
9. Processing area 2: 90 +/- 9 Hz
10. Output conveyor: 90 +/- 9 Hz
Width adjustment
Width adjustment: 24 +/- 2 Hz
10-3: Width of single conveyor
Legend
1. Single conveyor "Standard", max. width
1x460mm
2. Single conveyor "Widened", max. width
1 x 508 mm
3. Fixed conveyor side on right
4. Lane 1
5. Board
