Modular Conveyor Conveyor Settings Conveyor Control S tuden t Guide Advanced Level 2 SIPLACE D Series Modular Conveyor EN 05/2007 10-20 PCB Handling - Predecessor and Successor S tation SIEMEN S / SME MA Single / Dual Co…
Modular Conveyor
Conveyor Control Conveyor Settings
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Modular Conveyor
10-19
10.3.5 Conveyor Control
10.3.5.1 TSP 201

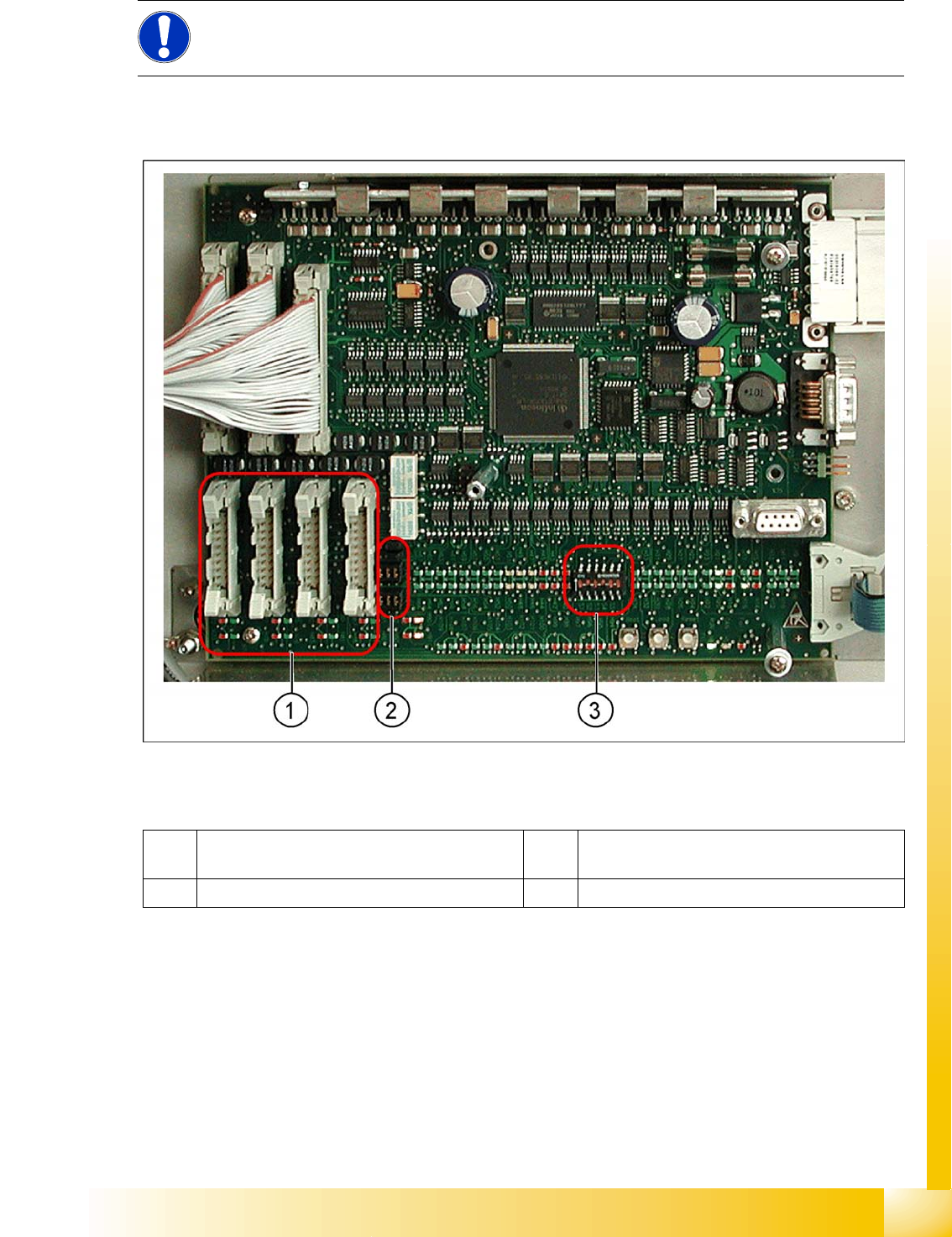

Overview
TSP 201
Legend
NOTE:
The TSP201 conveyor control is used in D1 and D2 machines, while TSP301 conveyor control
is used in D3 and D4 machines.
1 PCB handling (predecessor /successor
stations)
3 DIP switch for single / dual conveyors
2 Jumper for SIEMENS / SMEMA option
Modular Conveyor
Conveyor Settings Conveyor Control
Student Guide Advanced Level 2 SIPLACE D Series
Modular Conveyor EN 05/2007
10-20
PCB Handling - Predecessor and Successor Station
SIEMENS / SMEMA
Single / Dual Conveyor
LEDs on the TSP201
Legend
1. X1 – PCB handling – predecessor station lane
1
2. X2 – PCB handling – successor station lane 1
3. X4 – PCB handling – predecessor station lane
2
4. X5 – PCB handling – successor station lane 2
Connector and interface status display
A = Received
B = Permitted
C = Transmitted
D = Requested
10-8: Jumper J1, J2 "successor/predecessor station" at TSP 201
Legend
J1 predecessor station
J2 successor station
J3/J4 interference loop
NOTE:
Jumpers J1 and J2 can be set
independently of one another, at
SIEMENS or SMEMA.
S Single
conveyor
Dual conveyor Note
1OFF ON OFF = single conveyor, ON = dual conveyor
2ON ONStation type (always ON)
3OFF OFF OFF = clamping sensor deactivated
4ON ONOFF = 125 Kbit/s (S27), ON = 1 Mbit/s (D1/D2)
5oo oo CAN terminating resistor , OFF for D1, ON for D2
6OFF OFF Not used
DIP switch S1 on TSP201
NOTE:
See also the label on the TSP201 cover.
Modular Conveyor
Conveyor Control Conveyor Settings
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Modular Conveyor
10-21
10.3.5.2 TSP 301
Jumper Settings for TSP 301
10-9: Jumper positions for conveyor control 301
Legend
1. J7 CAN bus 1 terminating resistor
2. F6 Main Fuse TSP 301
3. F1 - F5 Fuses for the conveyor motors
4. J3 interference loop
5. J6 CAN bus 2 terminating resistor (not used)
6. J2, J1 successor/predecessor station
7. S4 DIL switch
10-10: Jumper J1, J2 "successor/predecessor station" at TSP 301
Legend
J1 predecessor station
J2 successor station
J3 interference loop
J6 CAN bus 2 terminating resistor (not used)
J7 CAN bus 1 terminating resistor
