Modular Conveyor
Conveyor Settings Conveyor Control
Student Guide Advanced Level 2 SIPLACE D Series
Modular Conveyor EN 05/2007
10-22
*Switches 1-2 set the hardware ID 5 for the D1, D2 and D4 machines and ID 6 for the SIPLACE X, HF
and D3 machines.
Conveyor Control Board TSP 301 with Siemens Interface (Option)
S D4 X/D3/HF Note
1ON ONON*
2ONOFF ON* = SIPLACE D4, OFF: SIPLACE X, HF, D3
3OFF OFF OFF= clamping sensor is no longer used
4OFF OFF Not used
5OFF OFF Not used
6OFF OFF Not used
7OFF OFF Not used
8OFF OFF Not used
DIL switch S4 at TSP 301

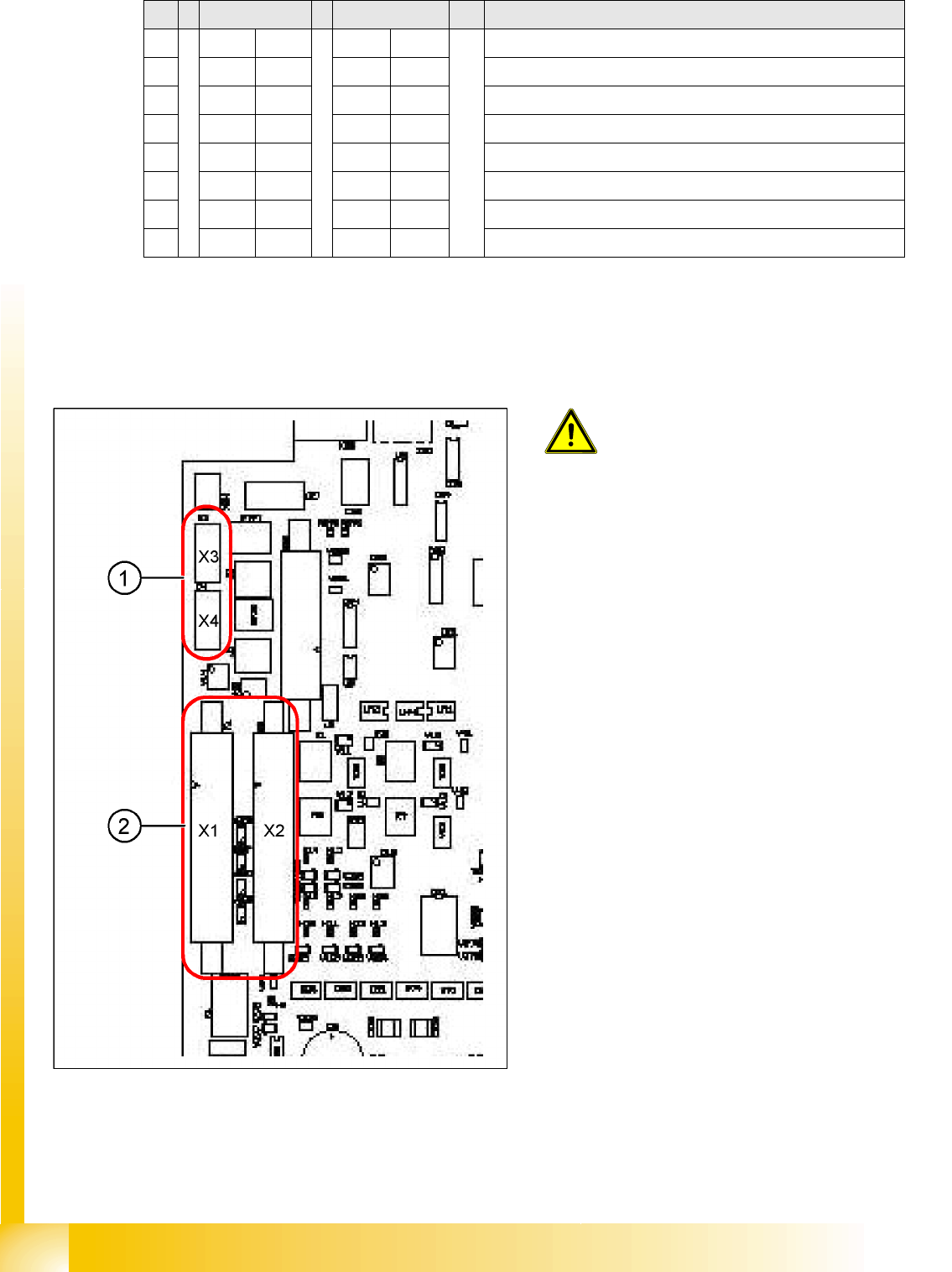

10-11: TSP 301 SMEMA --> Siemens
WARNING: Destruction of the board!
The 10 pin Locking clip plug of SMEMA
connections must be disconnected
from the TSP 301!
Application: no modification.
Following modification are necessary for using the
Siemens interface:
X JumperJ1 / J2: need to be moved (see
following diagram).
X Disconnect the connector X3 and X4 on the
TSP 301!
X Connect the Siemens interface cable on the
connector X1 and X2.
Legend
1. 10-pin plug for SMEMA interface
X3: predecessor station
X4: successor station
2. Connection for Siemens interface
X1: predecessor station
X2: successor station
Modular Conveyor
Conveyor Control Conveyor Settings
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Modular Conveyor
10-23

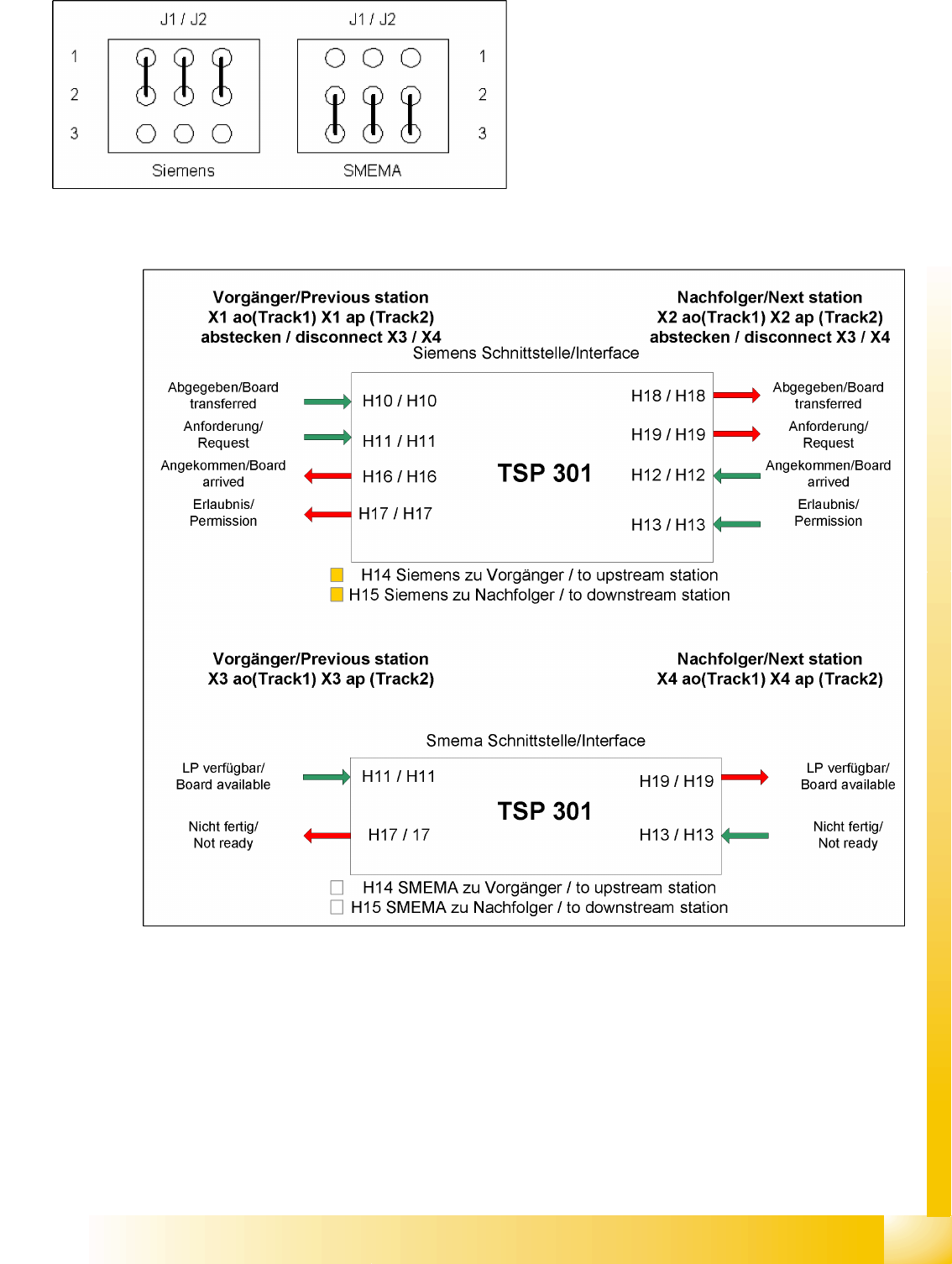

Siemens/SMEMA TSP 301 Interface
10-13: TSP 301 interface
10-12: Jumper J1 and J2 (Siemens/SMEMA)
Modular Conveyor
Conveyor Settings Lifting Table Function
Student Guide Advanced Level 2 SIPLACE D Series
Modular Conveyor EN 05/2007
10-24
10.3.6 Lifting Table Function
Lifting table up function
Conditions for detection that lifting table is up:
7-8 increments on the incremental disc
Software check (see Section 10.3.4 Board Recognition - Function [J10-18]).
Time behavior for board clamping of approx. 500 ms
Lifting table down function
Conditions for detection that lifting table is down:
7-8 increments on the incremental disc
Proximity switch on lifting table cylinder
Time behavior for board release of approx. 480 ms
10-14: Lifting table unit
Legend
1. Actuator
2. Locknut for dampening
3. Fastening screw for fixture block
4. Dampening unit
5. 5/3 way valve, with pneumatic cylinder and
end position proximity switch underneath
6. Fork light barriers/incremental disc
