Communication and Control Network Data Supply Between SIPLACE Pro and the Station Computer S tuden t Guide Advanced Level 2 SIPLACE D Series Communication and Control EN 05/2007 4-6 4.2.2 Dat a Supply Between SIPLAC E Pr…
Communication and Control
Checking the Network Addresses Network
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Communication and Control
4-5

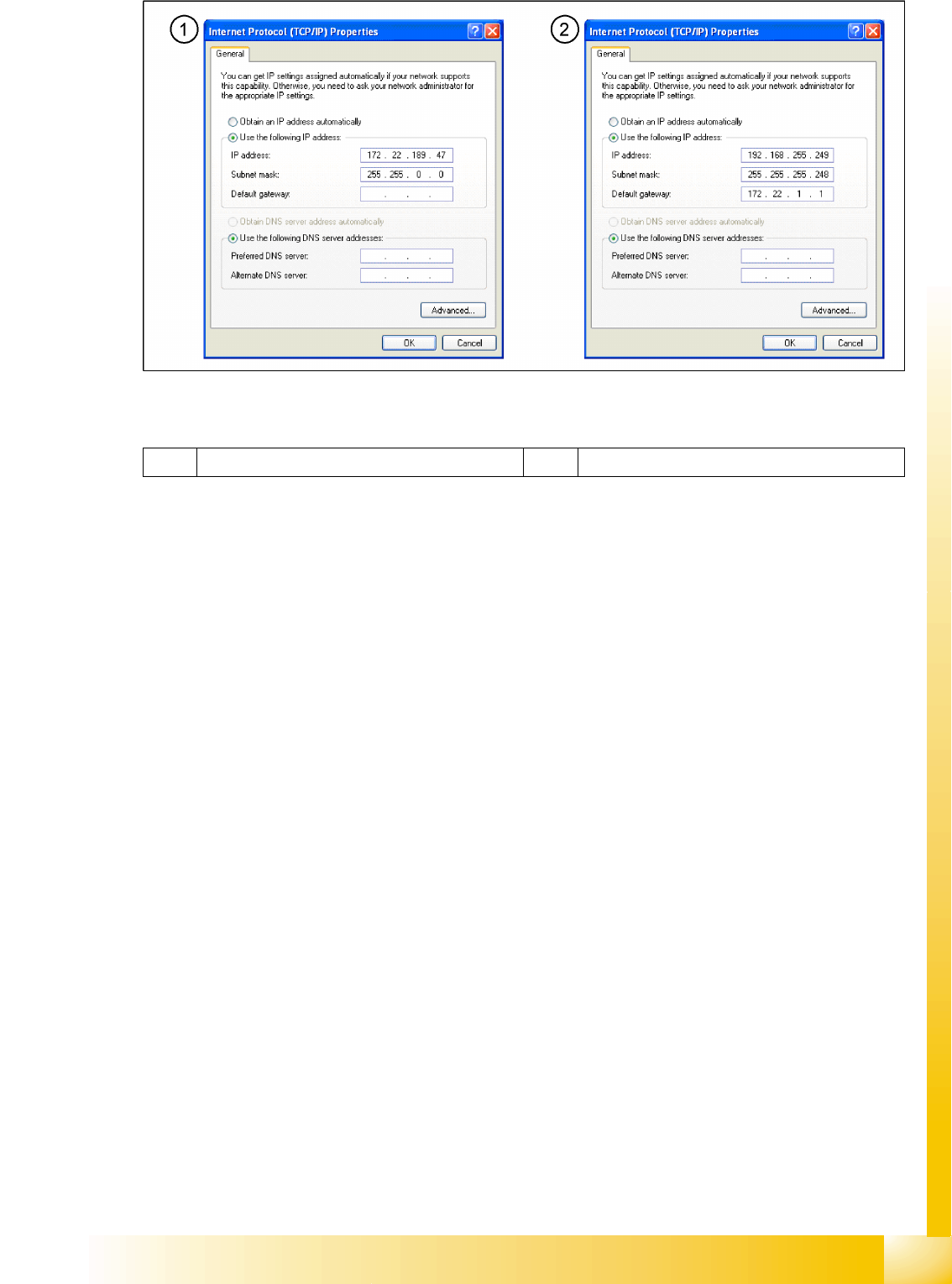

4-2: Network cards in the station computer
Legend
1 External IP address for SR 2 Internal IP address for SR
Communication and Control
Network Data Supply Between SIPLACE Pro and the Station Computer
Student Guide Advanced Level 2 SIPLACE D Series
Communication and Control EN 05/2007
4-6
4.2.2 Data Supply Between SIPLACE Pro and the Station Computer
SIPLACE Pro reads the data, required for production with the SIPLACE machine, out of the database
and compiles it. This compilation run creates the required data format and sends this to the station
computer. This data is then saved in files on the hard drive of the station computer.

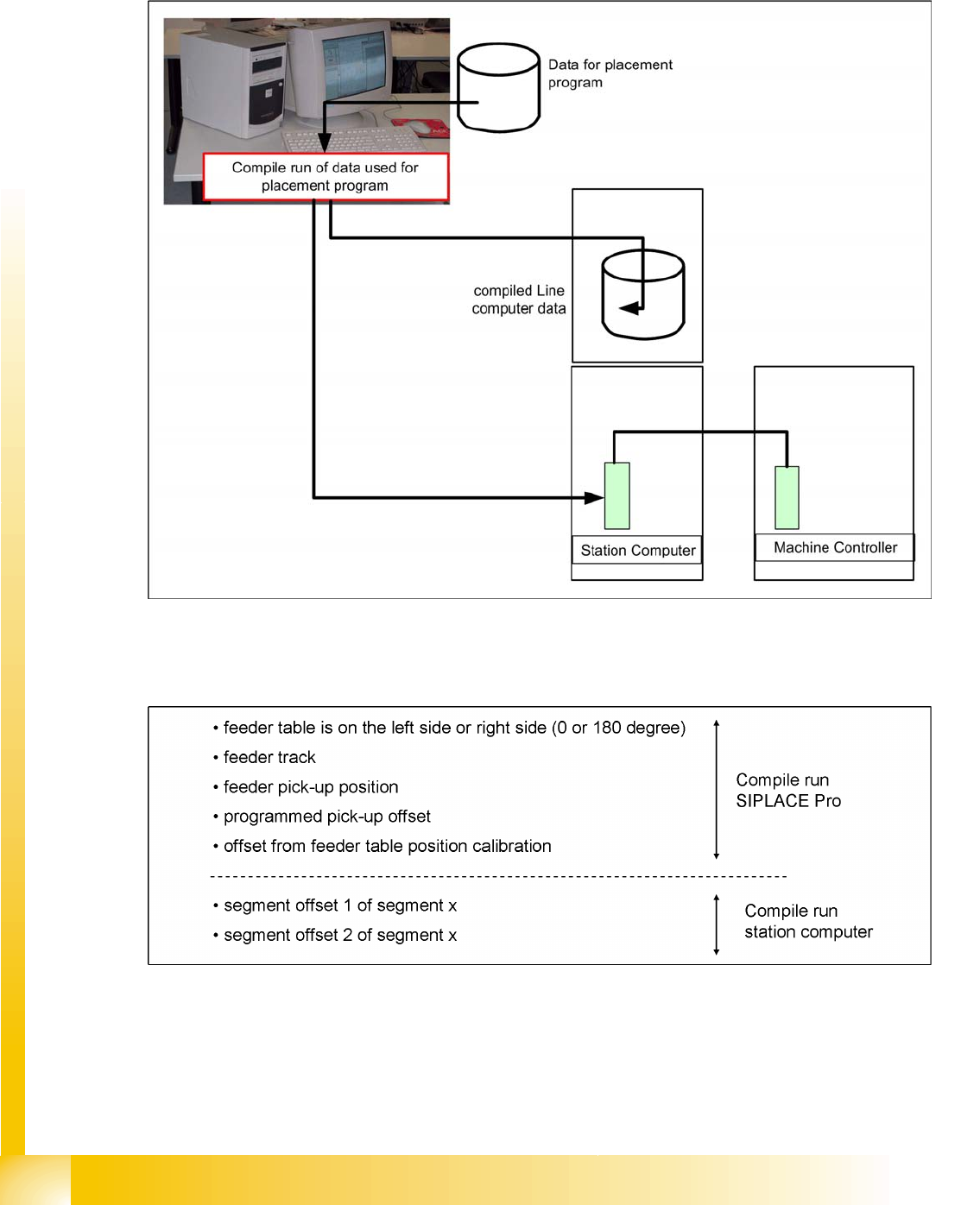

4-3: Computer in LAN network
4.2.2.1 Compiling the Pickup Position (X/Y Coordinates and Angles)
The following values are taken into account during the calculation of the theoretical pickup position:
Communication and Control
Data Conditioning at the Station Network
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Communication and Control
4-7

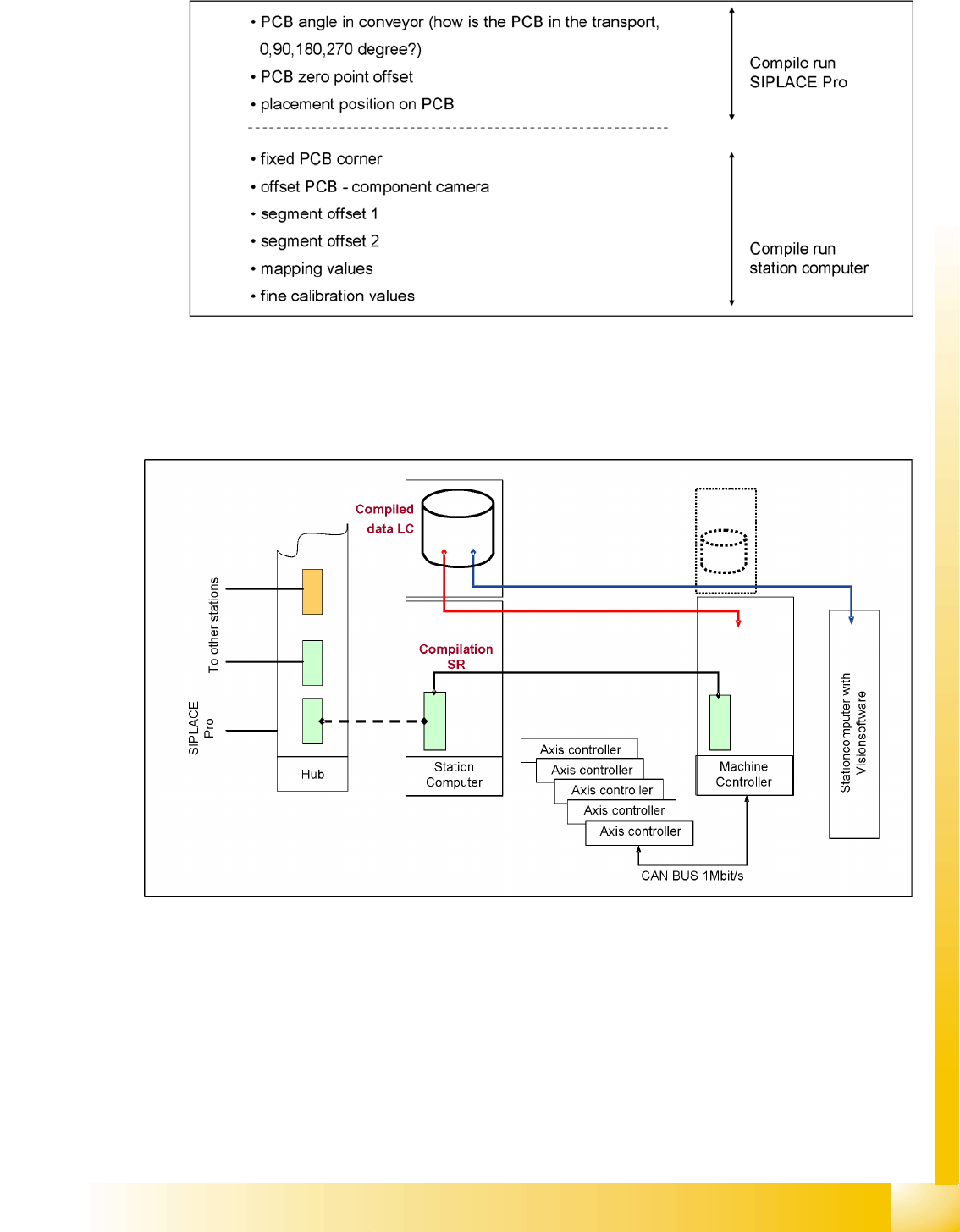

4.2.2.2 Compiling the Placement Position (X/Y Coordinates and Angles)
The following values are taken into account during the calculation of the theoretical placement position:
4.2.3 Data Conditioning at the Station
The data stored on the hard drive, including the placement data, are compiled in the station computer
for the machine controller. This compilation procedure adds the calibration values, determined during
calibration in SITEST, to the pickup and placement data.
4-4: Data conditioning at the station
