4.2.4 Communication for Machine Control
To calculate the pickup coordinates, the machine controller adds the pickup correction values
(previously known as the pickup offsets) to the pickup coordinates. To calculate the placement
coordinates, the machine controller adds the board position correction values and the component
correction values to the placement coordinates.

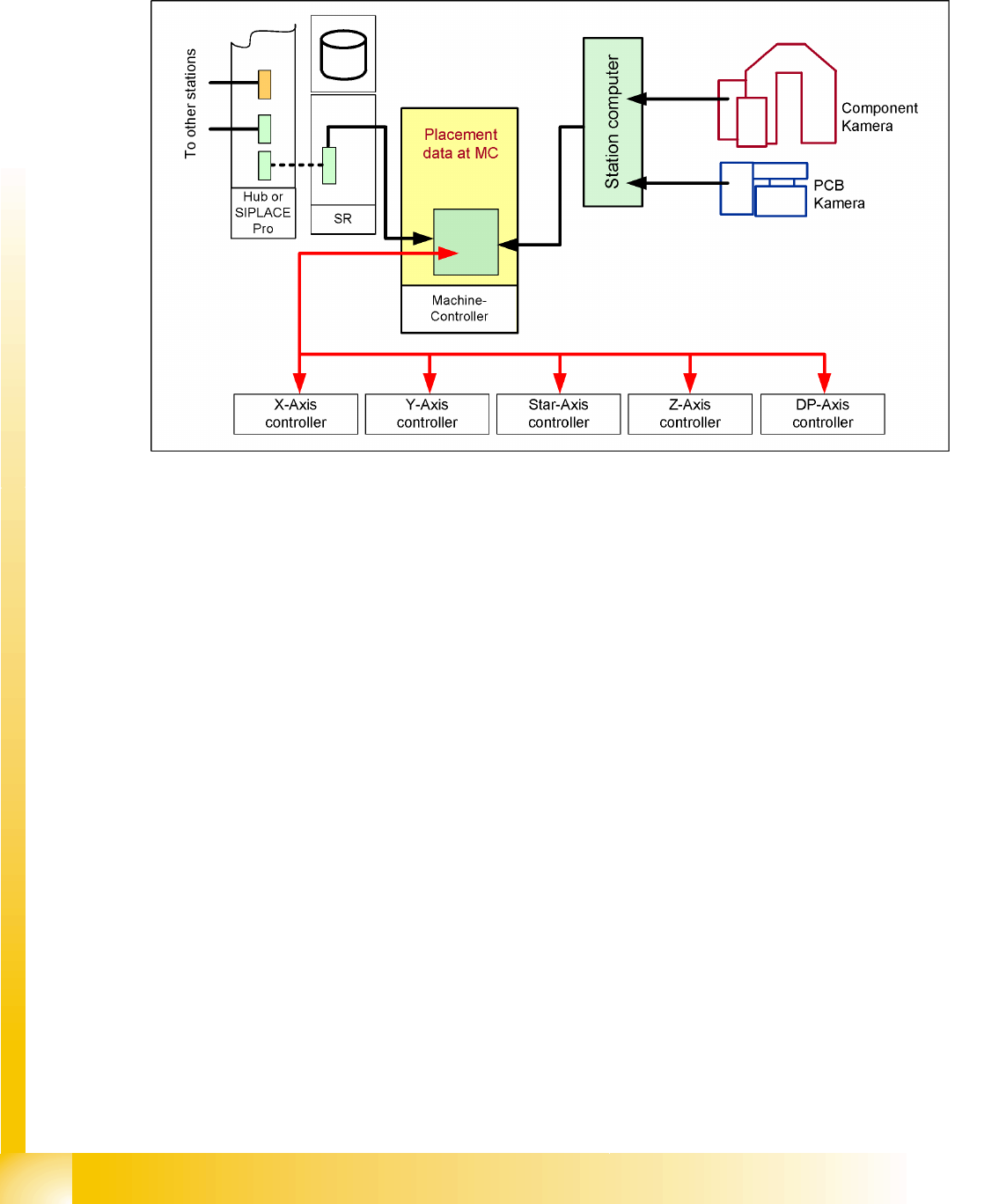

4-5: Communication for machine control
Communication and Control
Communication in SIPLACE D1 CAN Bus
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Communication and Control
4-9
4.3 CAN Bus
4.3.1 Communication in SIPLACE D1
4-6: Overview of communication in SIPLACE D1
Communication and Control
CAN Bus Communication in SIPLACE D2
Student Guide Advanced Level 2 SIPLACE D Series
Communication and Control EN 05/2007
4-10
4.3.2 Communication in SIPLACE D2
4-7: Overview of communication in SIPLACE D2
