Energy and Compressed Air Supply Input Voltage Power Supply Unit S tude nt Guide Advanced Level 2 SIPLACE D Series EN 05/2007 Energy and Compressed Air Supply 5-7 5.2.3 Input V olt age 5-4: Input voltage Legend 5.2.4 Nam…
Energy and Compressed Air Supply
Power Supply Unit Overview of Power Supply
Student Guide Advanced Level 2 SIPLACE D Series
Energy and Compressed Air Supply EN 05/2007
5-6

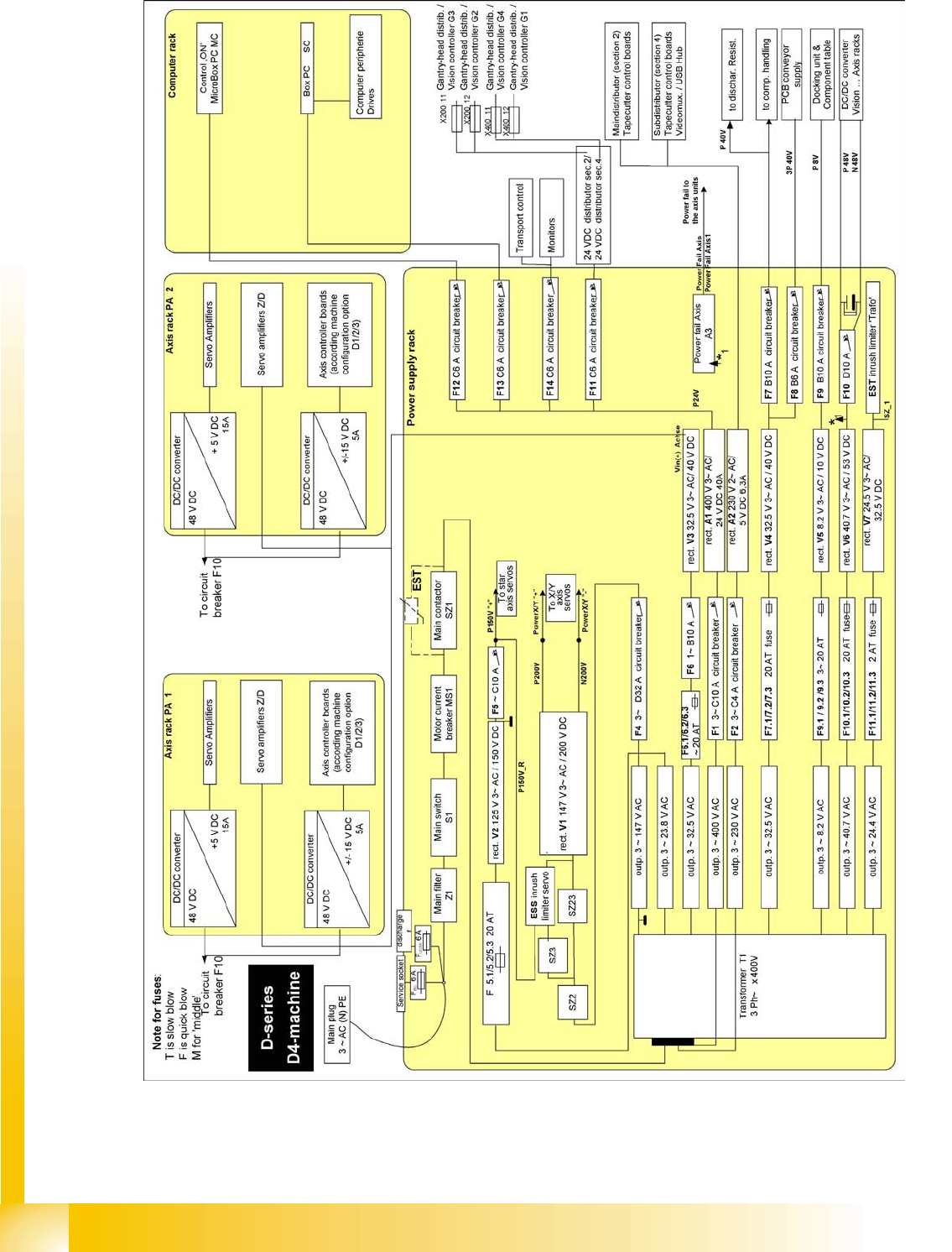

5.2.2.3 Overview of Power Supply D4
Energy and Compressed Air Supply
Input Voltage Power Supply Unit
Student Guide Advanced Level 2 SIPLACE D Series
EN 05/2007 Energy and Compressed Air Supply
5-7
5.2.3 Input Voltage
5-4: Input voltage
Legend
5.2.4 Naming Convention of Connectors and Cables
The SIPLACE basic machine cables and leads are clearly labeled. Each cable, connector, distributor
uses an exact term, which is dedicated to the sections and units in question.
S1 Main switch F1 Fuse for 24 V power pack
MS1 Motor protection switch F2 Fuse for 5 V power pack
SZ1 Main contactor and inrush current limiter
Machine type: D1/D2/D3/D4 --/D2/--/D4 --/--/D3/D4 --/--/D3/D4
Placement head for Gantry 1 Gantry 2 Gantry 3 Gantry 4
Designation a+ b+ c+ d+
Trailing cable distributor 03035887 aa ba ca da
Gantry distributor 03035888 ab bb cb db
Gantry head distributor 03038002 ac bc cc dc
Vision board eu fu gu hu
Hotlink filter lf mf nf of
SC Always pc
Hotlink card pr
MC Always pa
USB hub pd
Sector1 afafafaf
Energy and Compressed Air Supply
Power Supply Unit Assemblies in Sector 1
Student Guide Advanced Level 2 SIPLACE D Series
Energy and Compressed Air Supply EN 05/2007
5-8
5.2.5 Assemblies in Sector 1
Sector 2 (output side) bf bf (left) bf bf
Sector 3 (output side) cf cf -- --
Sector 4 df df -- --
Subassemblies in the sector distributors have other designations, which may also differ between the machine
types.
Machine type: D1/D2/D3/D4 --/D2/--/D4 --/--/D3/D4 --/--/D3/D4
Placement head for Gantry 1 Gantry 2 Gantry 3 Gantry 4
Naming convention for cables and
connections in sector 1
Conveyor control ao (D1/D2: kc)
Terminal strip (voltage supply) X100
Connections (plug-in connectors) af
Vision DC/DC converter A1 qc
CAN Bus terminator for changeover table qd
In D1/D2, the subassemblies and the main
distributor are marked with r...
The designations are as follows:
A3 CAN bus terminator connection for
changeover table: rb
A3 CAN bus terminator connection for WPC:
rd
Vision DC/DC converter assembly: rc
The conveyor assembly TSP201 also has the
connector and lead designation ao.
