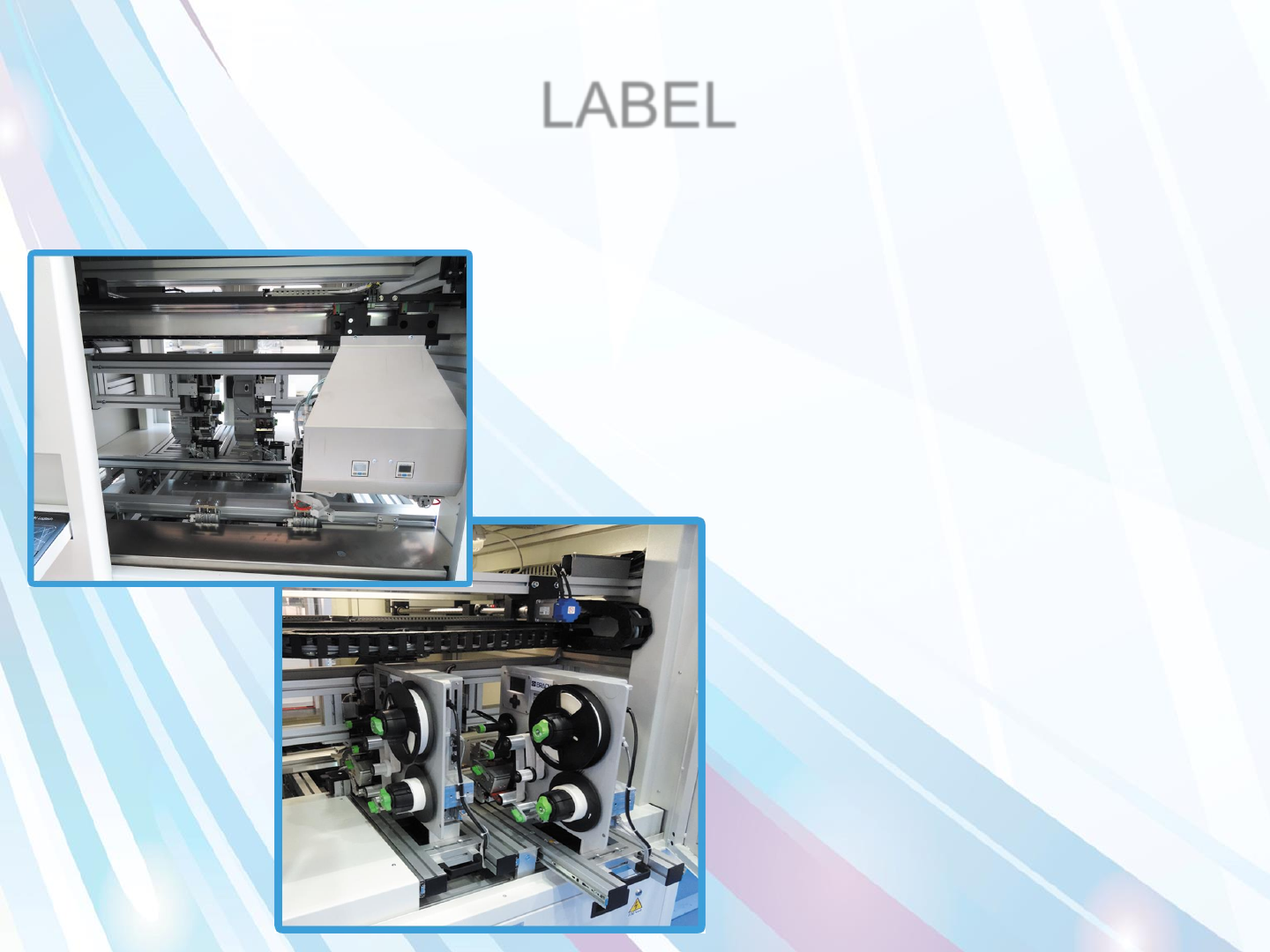

LABEL

Printer Specification

• Integrated 600dpi Printer

• Vacuum sensing for label from pick-up

• Prints and applies a range of labels size

• Very high placement accuracy +/- 0.3mm

• LCD graphics display

• Printing method: direct thermal

www.seica-automation.com

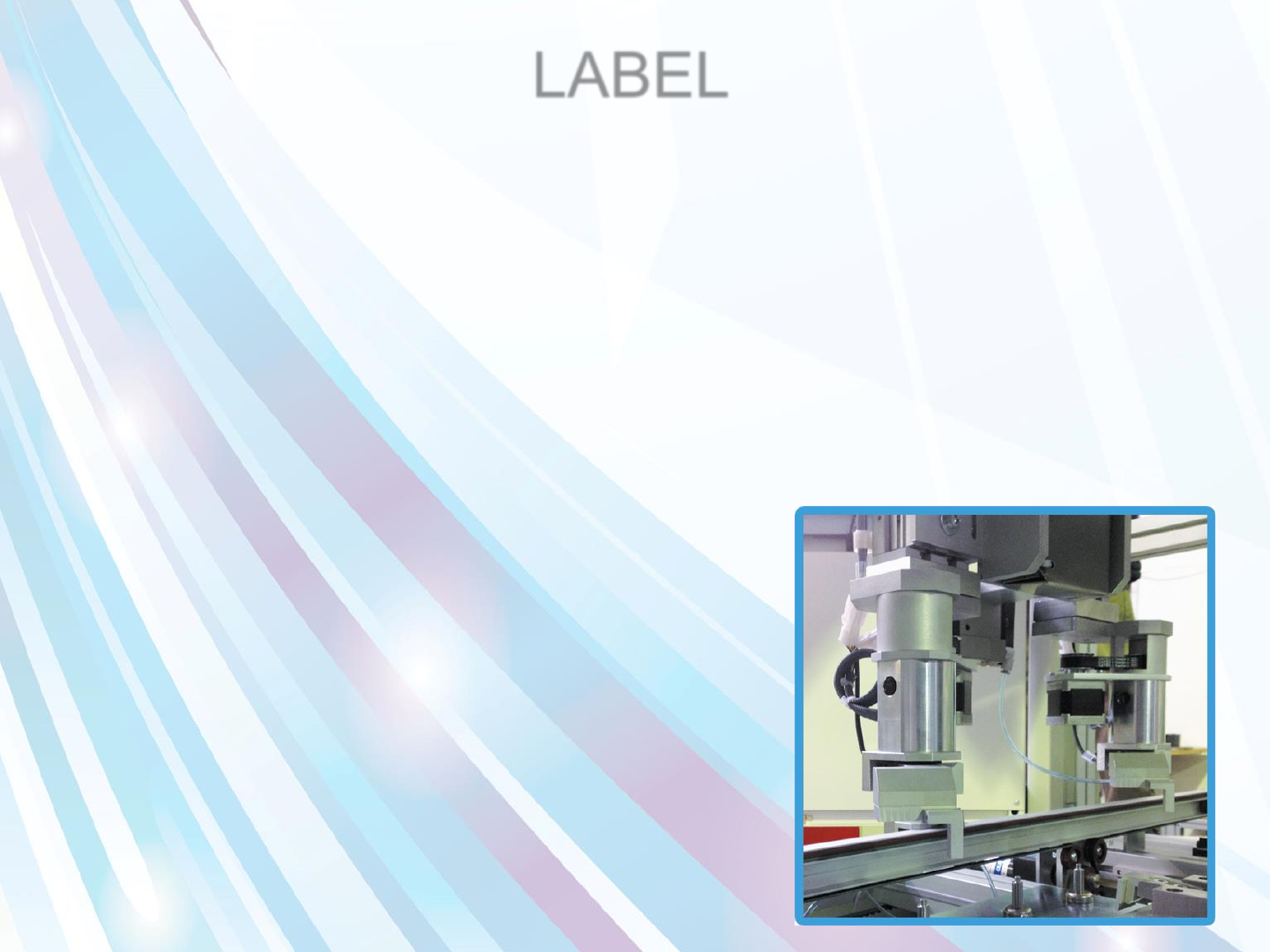

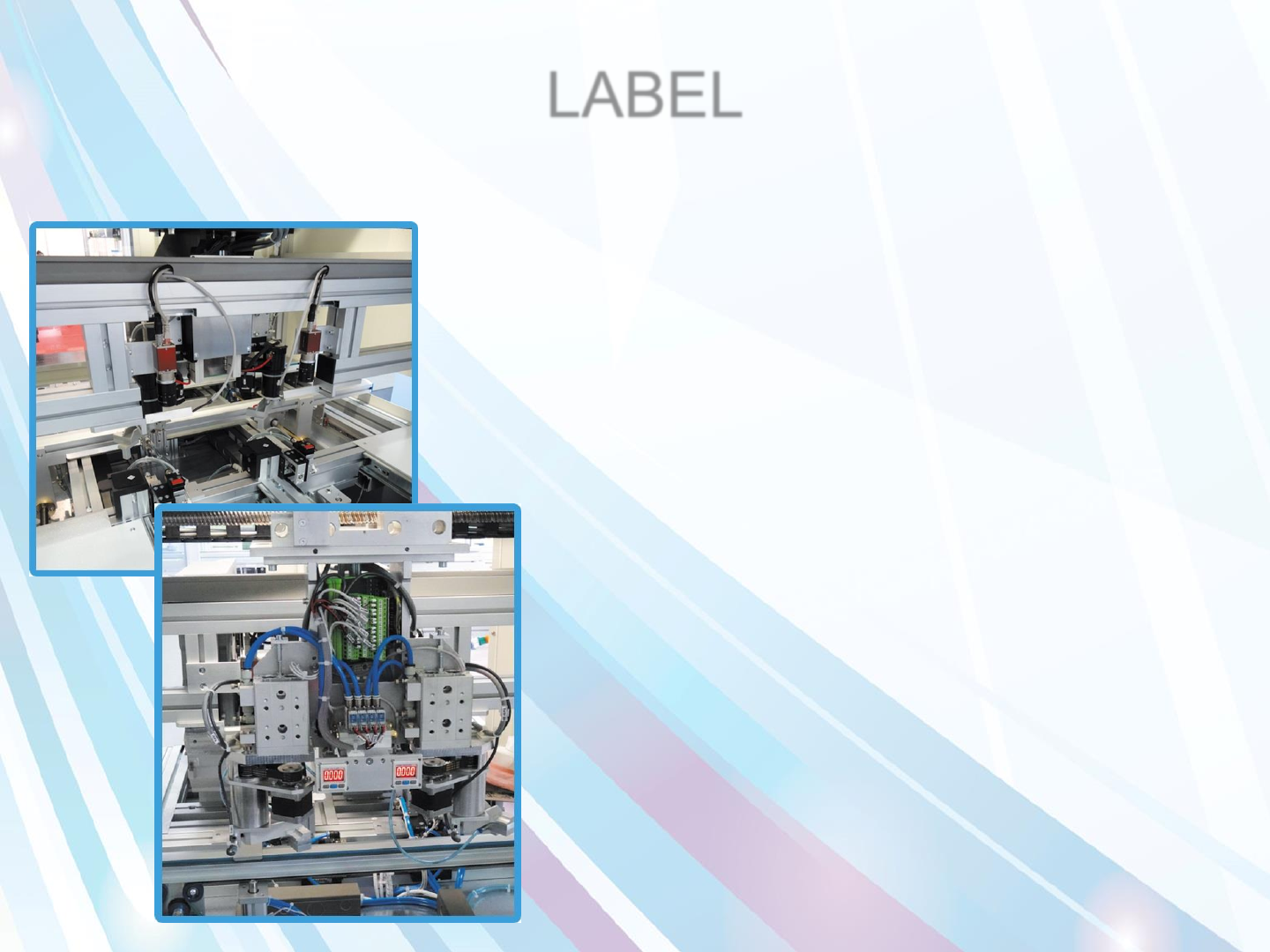

LABEL

General PCB Specification

CYCLE Time /PLACING FEATURES

Repeatability X-Y: ±0.05mm

PCB Infeed: 5 sec

PCB Outfeed: 3,5 sec

Placing Time (1 Head): Approximately 3,5 sec

Time may change due to placing distance on PCB

Placing Time (2 Heads): Approximately 2,3 sec

XY axis: servo-controlled brushless motors

Z axes: Pneumatic

Rotation: electric servo-controlled motors: 0°-180° (step:

1°)

Labels & Ribbon Ink: not Included

Type of Ribbon: must be suitable for automatic applicator

(consult Factory)

Type of Labels: must be suitable for automatic applicator

(consult Factory)

Label text : to be defined

Dimension of Labels:

Min: 5x5 mm (WxL)

Max: 58x100 mm (WxL)

LABEL

Transport features

• In Line System with Flow direction: left to right

• Maximum Pallet/PCB size: 500x380mm (L x W)

• Minimum Pallet/PCB size: 80x80mm (L x W)

• Thickness of Processable PCBs: from 0.8mm to 4.0mm

• Pass Through Components Clearance: Top 50mm – Bottom

20mm.

• Labeling Components Clearance: Top 28mm – Bottom 20mm

• Pallet/PCB max weight: 2.5Kg

• Minimum Edge support: 3mm for each side Max

• Conveyor Type: ESD flat belt

• Conveyor heght: 950+/-25mm

• Conveyor Speed: Variable speed

(200mm/s max), AC motors

• Interface: SMEMA STANDARD

• SMEMA cable: included

• Ethernet connection: included

• Stopper system: Two Pneumatic Pistons

• Pallet/PCB clamping on the conveyor: included

• Width adjustment: manual with hand wheel
