MODEL GXH-1 1012-005 147 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE G-7 605 6300885361 ACCESSORY ,SW (KEY) 4 803G--210-405 23H20053 616 6301349213 BRACKET 4 803G--210-016 21 1F9501 617 6301349220 PIN,HINGE…
MODEL GXH-1
0409-002
146
カバー部
COVER SECTION

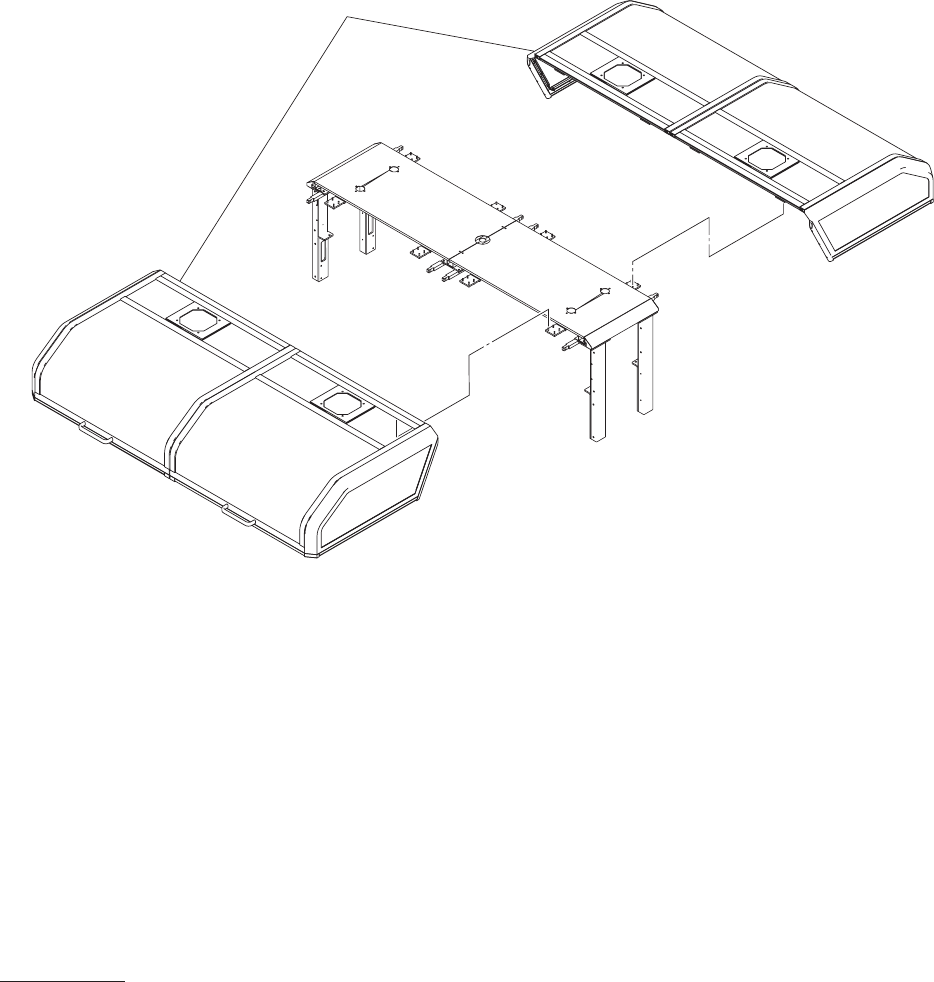

Fig. G-7
右カバー
Right Cover
664
.
673
.
678
663
.
672
.
677
665
.
673
.
678
661
.
671
.
676
662
.
671
.
676
664
.
673
.
678
664
.
673
.
678
663
.
672
.
677
669
665
.
673
.
678
620
621
670
621
670
619
618
617
621
619
618
616
616
669
617
605
657
658
627
677
668
677
659
667
677
666
651
620
670
670
664
.
673
.
678
621
MODEL GXH-1
1012-005
147
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-7
605 6300885361 ACCESSORY,SW (KEY) 4 803G--210-405 23H20053
616 6301349213 BRACKET 4 803G--210-016 211F9501
617 6301349220 PIN,HINGE 4 803G--210-017 216D0504
618
6301349237 BLOCK 4 803G--210-018 211G3970
619 6301349244 PLATE 4 803G--210-019 211DA375
620 6301265346 BLOCK 4 803G--210-020 211G3493
621 6301267500 PIN,HINGE 8 803G--210-021 216D0451
627
6301273129 PLATE 2 803G--210-027 211D9629
651 6300764932 ACCESSORY,MOT-M 2 803G--210-161 23M00038
657
6300684278 MOTOR,INDUCTION 2 M101,M104 803G--210-157 4M100029
658 6300684292 ACCESSORY,MOT-M 2 803G--210-158 23M00033
659
6300746853 ACCESSORY,MOT-M (FILTER) 2 803G--210-159 23M00037
661
6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
662
6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
663
6300007770 BOLT,HEX-SCT 16 M5X20 221A0032
664
6300007862 BOLT,HEX-SCT 16 M6X10 221A0041
665
6300007893 BOLT,HEX-SCT 8 M6X20 221A0044
666
4110436803 SCR PAN 5X12 8 M5X12 PAN 221E051
1
667 4111406409 SCR PAN 5X16 8 M5X16 PAN 221E0512
668 4111410505 NUT HEX 5 16 M5 221F0085
669
6300008883 SET SCREW 8 M3X4 SET 221C0001
670 6300082296 SET SCREW 8 M4X4 SET 221C0027
671 4111412905 WASHER SPR 4 8 SW4 221H0284
672
4111416705 WASHER SPR 5 16 SW5 221H0287
673
4111413001 WASHER SPR 6 24 SW6 221H0289
676
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
677
4111414107 WASHER V 5X10X1 40 FW5 221H0318
678
4111414305 WASHER V 6X12.5X1.6 24 FW6 221H0320
