Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
GB-2
101 6301301518 MECH PARTS 2 226J1984
102 6301301532 MECH PARTS 2 226J1986
103
6301301549 MECH PARTS 2 226J1987
104
6301301563 MECH PARTS 2 226J1989
105
6301301570 MECH PARTS 2 226J1990
106
6301301587 MECH PARTS 2 226J1991
107
6301034195 GRIP 2 226D0082
108
6301034256 NUT 2 221G0131
1
10 6301301600 COVER 2 211A9009
111 6301301617 SUPPORT 2 211K2974
112 6301301624 SUPPORT 2 211K2975
113 6301301631 SUPPORT 2 211K2976
114 6301301648 SUPPORT 2 211K2977
115 6301301655 SUPPORT 2 211K2978
116 6301301662 BRACKET 4 211F8810
117 6301301679 BRACKET 2 211F881
1
118 6301301686 BLOCK 2 211G3699
119 6301301693 BLOCK 2 211G3700
120 6301301716 BLOCK 2 211G3702
121 6300981926 MECH PARTS(CAP) 2 226J1205
122
6301238104 MECH PARTS(STOPPER) 2 226J1848
123
6301301723 COVER 2 211A9010
124 6301301730 COVER 2 211A901
1
125 6301301747 PLATE 2 211D9901
126 6301301754 MECH PARTS 2 226J1992
127
6301301761 MECH PARTS 2 226J1993
128
6301304991 MECH PARTS 2 226J2048
129
6301256177 SHOCK ABSORBER 4 222S0057
151
6300007817 BOLT,HEX-SCT 6 221A0036
152
6300007794 BOLT,HEX-SCT 2 221A0034
153
6301034324 BOLT,HEX-SCT(BUTTON HEAD) 8 221A0285
158
6301034690 MACHINE SCREW 3 221D0148
159
6301034553 MACHINE SCREW 7 221D0147
163
6300007633 BOLT,HEX-SCT 18 221A0018
164
4111414008 WASHER V 4X9X0.8 18 221H0315
166
6300007664 BOLT,HEX-SCT 4 221A0021
MEMO
MODEL GXH-1
0503-003
161

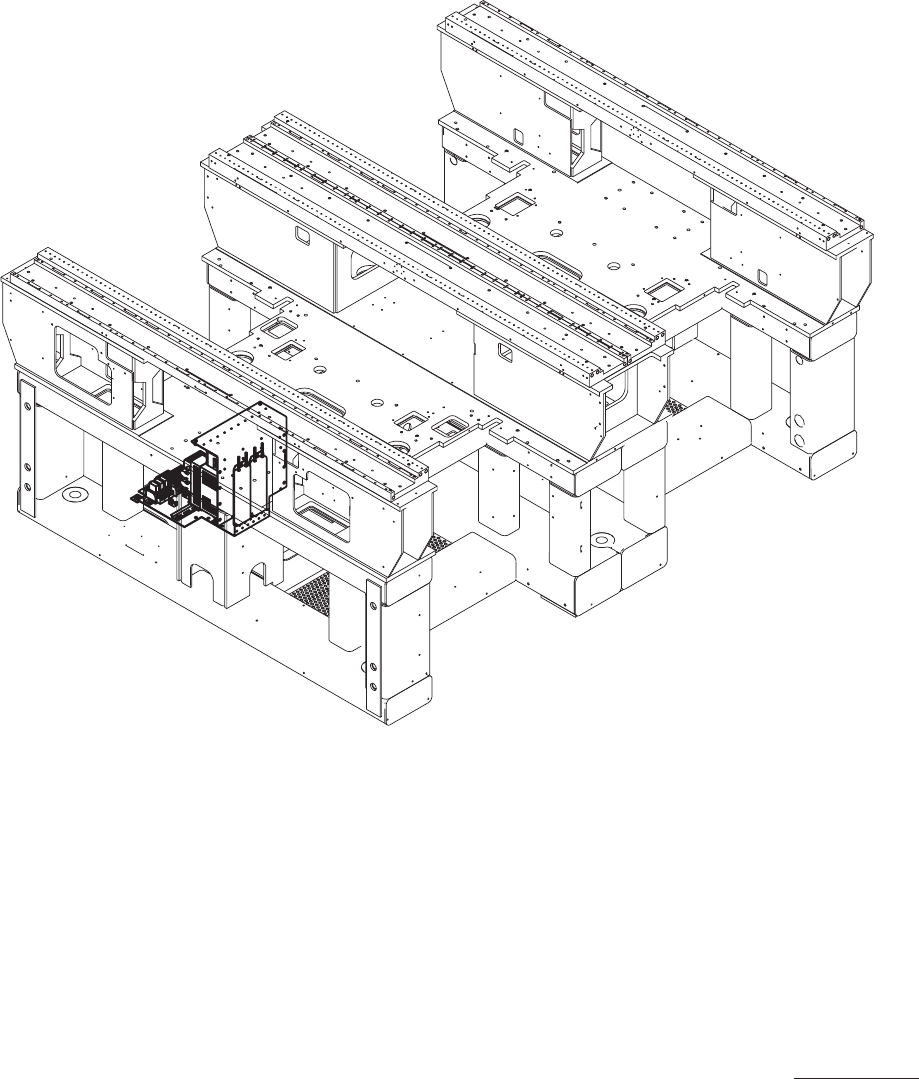

Fig. BA
架台下
A UNDERFRAME A
