MODEL GXH-1 1012-005 163 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BA-1 51 6301330099 BRACKET 1 803BA-210-051 21 1F9224 53 6301270739 RAIL,WIRING 1 803BA-210-153 23N00099 54 630091 1749 BRACKET ,WIRING 3 …
MODEL GXH-1
0909-004
162

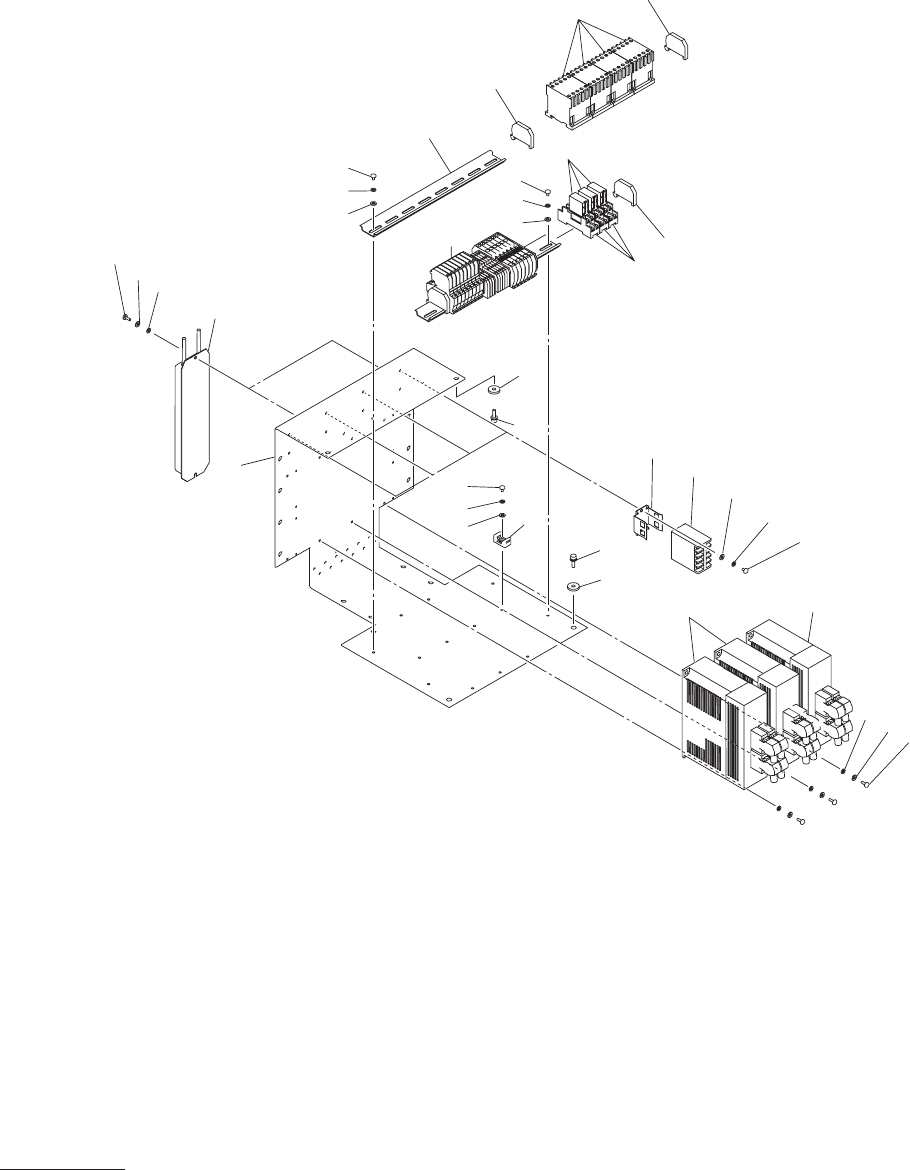

架台下
A UNDERFRAME A
Fig. BA-1
電装パネル
Electrical Panel
91
59
91
94
93
51
57
56
93
94
91
93
94
92
92
94
93
54
54
60
61
54
53
55
.
70
58
71
93
94
91
74
82
83
.
81
82
91
94
93
83
.
81
75
MODEL GXH-1
1012-005
163
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BA-1
51 6301330099 BRACKET 1 803BA-210-051 211F9224
53 6301270739 RAIL,WIRING 1 803BA-210-153 23N00099
54
6300911749 BRACKET,WIRING 3 803BA-210-154 23N10027
55
6301335698 TERMINAL 1 803BA-210-155 4J320220
56
6300697278 RELAY 4 -K75,-K76,-K77,-K78
803BA-210-156 4S200100
57
6300492422 BRACKET,WIRING 4 803BA-210-157 23N10019
58
6300941418 EM-CONTACTOR 4 -K36,-K38,-K40,-K50
803BA-210-158 4S210086
59
6301257112 RESISTOR,SPECIAL 2 R01A,R01B 803BA-210-159 4R500008
60 6300635423 RELAY 3 -K60,-K71,-K72
803BA-210-160 4S200086
61
6300635430 SOCKET 3 803BA-210-161 4J120099
70
4230252109 FUSE 250V 6.3A 8 F021B,F022B,F023B,F024B,
F021A,F022A,F023A,F024A
803BA-210-170 4S300023
71
6300483833 MECH PARTS(MOUNTING BASES 6 226J0373
74
6301237138 UNIT,DRIVER 1 -A53(L) 803N--210-024 4U240429
75 6301237138 UNIT,DRIVER 2 -A63(A),-A63(B)
803BA-210-015 4U240429
81
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
82
6300010220 WASHER 4 BW5 221H0005
83
4111416705 WASHER SPR 5 4 SW5 221H0287
91
4111131400 SCR PAN 4X6 18 M4X6 PAN 221E0509
92 4110423001 SCR PAN 4X10 10 M4X10 PAN 221E0500
93 4111192104 WASHER V 4X9X0.8 28 FW4 F 221H0314
94
4110081706 WASHER SPR 4 28 SW4 F 221H0283
MODEL GXH-1
0909-004
164
架台下
A UNDERFRAME A
Fig. BA-2
ケーブル
L Cable L
158
160
157
167
167
151
178
173
168
168
153
169
169
166
156
155
161
159
See Fig.BL-7
Key No.674
171
See Fig.FB-2
Key No.168
See Fig.FB-2
Key No.166
X411A
X511A
X512A
X512B
X512C
X512A
X512B
X512C
X512D
