MODEL GXH-1 0409-002 198 電装ボックス L ELECTRICAL BOX L Fig. BL-3 リレー２、 I/O ボード Relay 2,I/O Board See Fig.BL-1 Key No.55 285 284 283 266 282 277 . 272 . 252 261 260 273 273 262 274 281 276 . 271 .
MODEL GXH-1
1012-004
197
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BL-2
151 6301241609 CIRCUIT PROTECTOR 1 -Q203 803BL-210-151 4S250292
152 6301230948 CIRCUIT PROTECTOR 1 -Q204 803BL-210-152 4S250290
153 6301067179 CIRCUIT PROTECTOR 1 -Q205 803BL-210-153 4S250245
154 6301246321 CIRCUIT PROTECTOR 1 -Q206 803BL-210-154 4S250293
155 6301230979 EM-CONTACTOR 1 -K29 803BL-210-155 4S2101
10
156 6301163758 EM-CONTACTOR 1 -K28 803BL-210-156 4S210101
161 6301326320 BRACKET 1 803BL-210-051 211F9152
173 6301240824 RAIL,WIRING 1 803BL-210-173 23N00098
174
6300911749 BRACKET,WIRING 2 803BL-210-174 23N10027
175
6301327778 TERMINAL 1 803BL-210-175 4J320211
181 6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
182
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
183
4111131400 SCR PAN 4X6 4 M4X6 PAN 221E0509
186 4110081706 WASHER SPR 4 4 SW4 F 221H0283
187
4111412905 WASHER SPR 4 1 SW4 221H0284
188
4111416705 WASHER SPR 5 2 SW5 221H0287
191
4111192104 WASHER V 4X9X0.8 4 FW4 F 221H0314
192
4111414008 WASHER V 4X9X0.8 1 FW4 221H0315
193
6300010220 WASHER 2 BW5 221H0005
MODEL GXH-1
0409-002
198

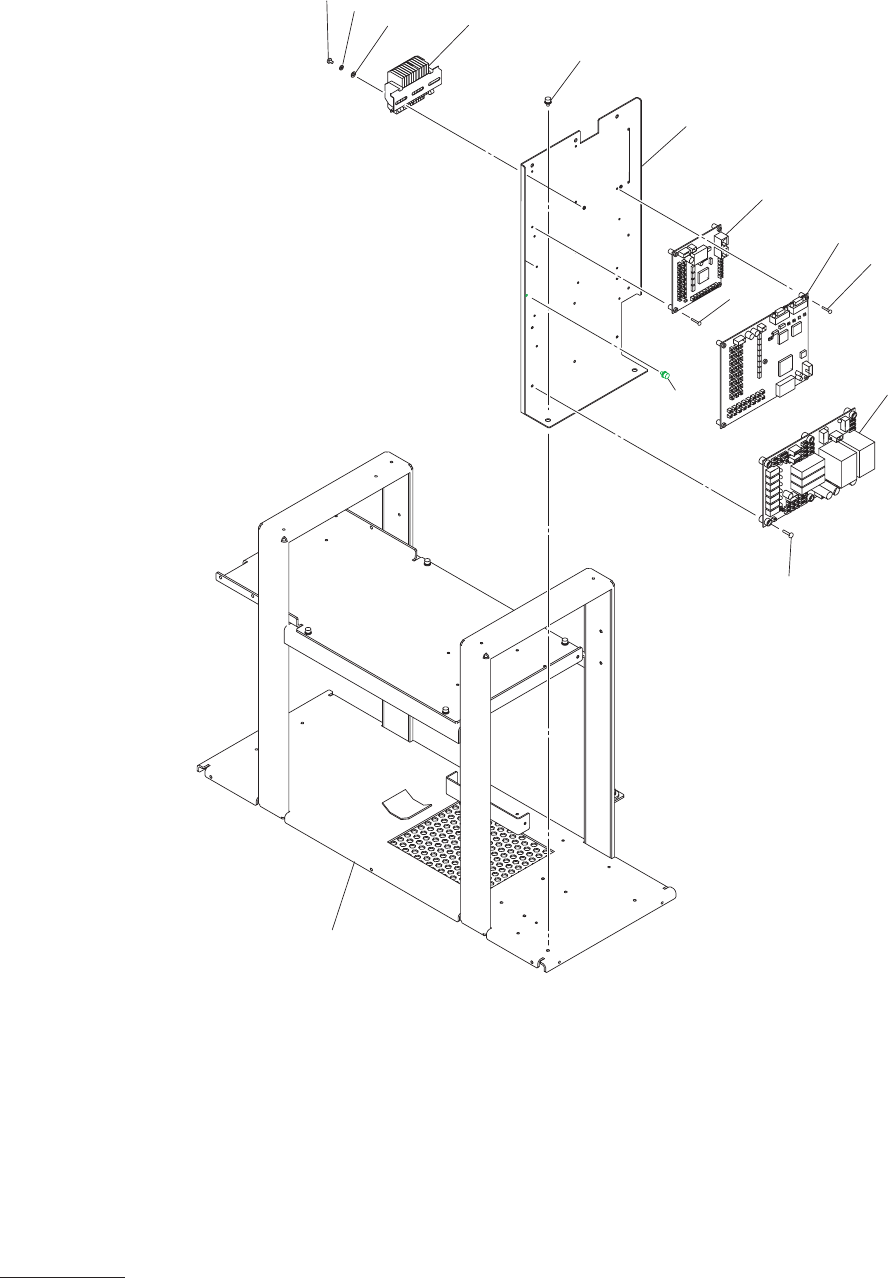

電装ボックス
L ELECTRICAL BOX L
Fig. BL-3
リレー２、
I/O
ボード
Relay 2,I/O Board
See Fig.BL-1
Key No.55
285
284
283
266
282
277
.
272
.
252
261
260
273
273
262
274
281
276
.
271
.
MODEL GXH-1
1012-004
199
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BL-3
252 6301326306 BRACKET 1 803BL-210-052 211F9150
260 6301235707 P.C.B,MOUNT 1 -U05 803BL-210-060 4B1
11448
261 6301235752 P.C.B,MOUNT 1 -U12 803BL-210-061 4B1
11452
262 6301242521 P.C.B,MOUNT 1 -U27 803BL-210-062 4B1
11466
266 6301328089 TERMINAL 1 803BL-210-176 4J320217
271
6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
272
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
273
4111130700 SCR PAN 3X16 8 M3X16 PAN 221E0491
274 4111132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
276 4111412905 WASHER SPR 4 1 SW4 221H0284
277
4111416705 WASHER SPR 5 2 SW5 221H0287
281
4111414008 WASHER V 4X9X0.8 1 FW4 221H0315
282
4111414107 WASHER V 5X10X1 2 FW5 221H0318
283
4111131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
284 4110081706 WASHER SPR 4 2 SW4 F 221H0283
285
4111192104 WASHER V 4X9X0.8 2 FW4 F 221H0314
