MODEL GXH-1
0409-001
214
電装ボックス
R ELECTRICAL BOX R

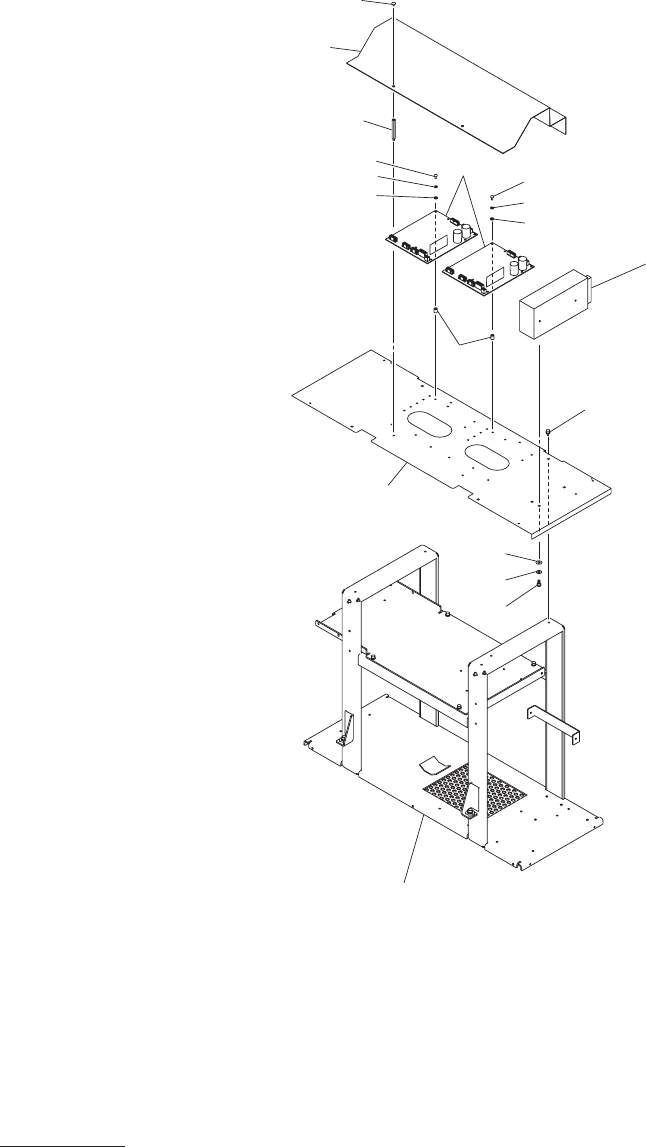

Fig. BR-7
コンベアドライバ
Conveyor Driver
696
695
694
673
620
688
689
690
690
689
688
682
664
697
683
See Fig.BR-1
Key No.55
691
.
692
.
693
674
MODEL GXH-1
1012-003
215
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BR-7
620 6301242088 UNIT,DRIVER 2 -A41(R),-A51(R)
803BR-210-420 4U240441
664
6301246345 UNIT,POWER 1 -G05 803BR-210-164 4U200256
673 6301326368 COVER 1 803BR-210-073 211A9350
674 6301334639 PLATE 1 803BR-210-074 211DA215
682 6300699616 ACCESSORY,P.C.B 14 803BR-210-182 23L10045
683
6301329833 SPACER 4 803BR-210-183 211E0900
688 4110418908 SCR PAN 3X6 14 M3X6 PAN 221E0497
689 4110864408 WASHER SPR 3 14 SW3 F 221H0280
690
4111191909 WASHER V 3X7X0.5 14 FW3 F 221H0311
691 6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
692
4111416705 WASHER SPR 5 4 SW5 221H0287
693
4111414107 WASHER V 5X10X1 4 FW5 221H0318
694
4111131400 SCR PAN 4X6 3 M4X6 PAN 221E0509
695 4110081706 WASHER SPR 4 3 SW4 F 221H0283
696
4111192104 WASHER V 4X9X0.8 3 FW4 F 221H0314
697
4111408007 SCR TRS 5X6 8 M5X6 TRS 221E0532
