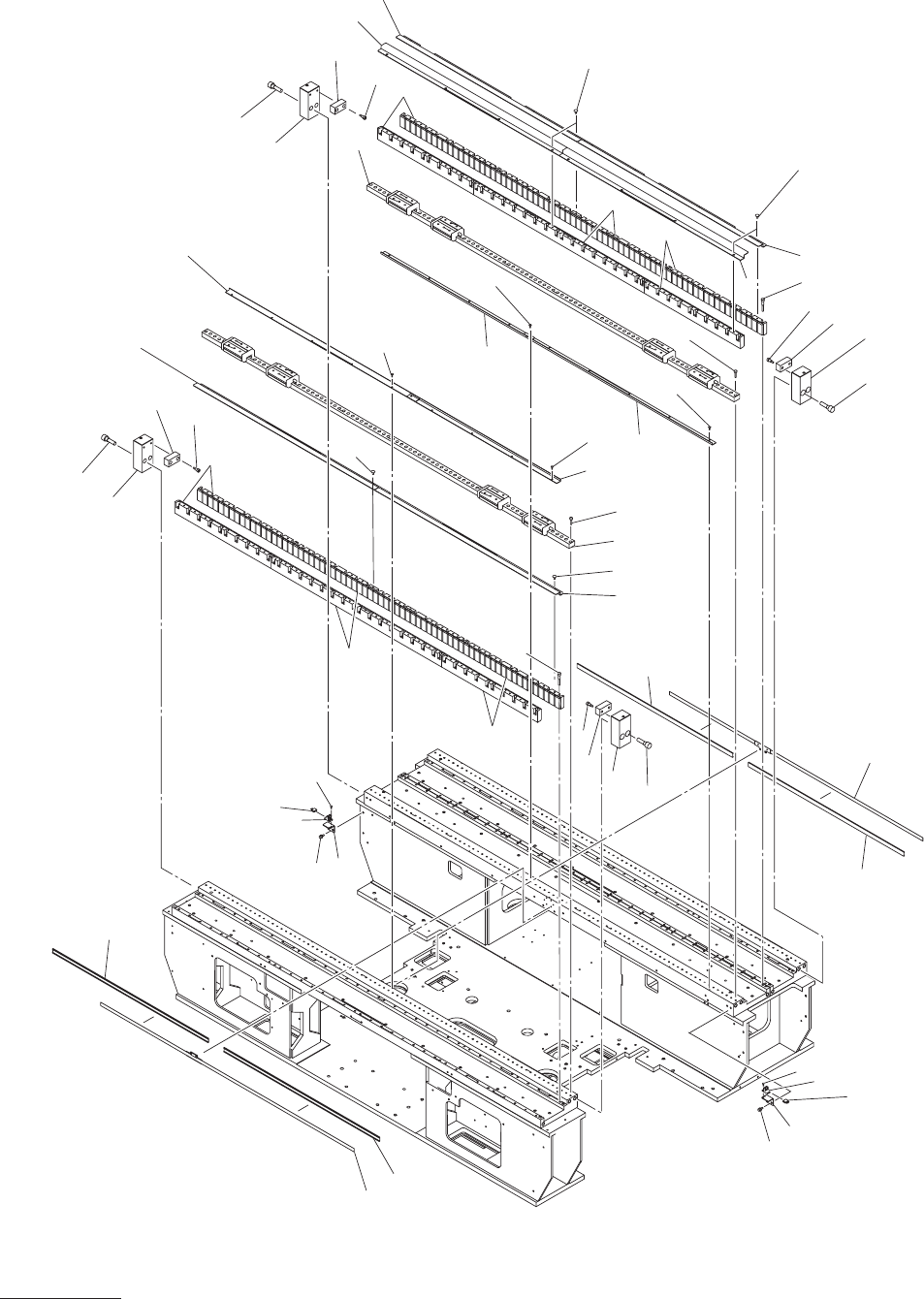

MODEL GXH-1 0503-003 20 ビーム部 BEAM SECTION Fig. C-1 Y 軸部 L Y Axis Section L 54 12 13 9 53 3 2 3 9 13 12 54 6 19 1 17 16 51 61 62 14 1 1 56 57 57 54 12 13 1 53 18 21 58 58 19 20 54 12 13 1 1 15 56 10 10 18 58 58 57 57 . . …
MODEL GXH-1
0503-003
19
Fig. C
ビーム部
BEAM SECTION
MODEL GXH-1
0503-003
20
ビーム部
BEAM SECTION
Fig. C-1 Y
軸部
L Y Axis Section L
54
12
13
9
53
3
2
3
9
13
12
54
6
19
1
17
16
51
61
62
14
1
1
56
57
57
54
12
13
1
53
18
21
58
58
19
20
54
12
13
11
15
56
10
10
18
58
58
57
57
.
.
9
52
52
9
3
2
3
51
.
61
.
62
16
17
7
7
6
7
7
MODEL GXH-1
1012-003
21
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
C-1
1 6301388106 GUIDE,LINEAR 1 803C--210-001 222L0750
2 6301274980 MOTOR,AC-SERVO 4 803C--210-002 4M150206
3
6301275000 MOTOR,AC-SERVO 8 803C--210-003 4M150207
6
6301239811 ENCODER(LIDA407 TAPESET) 2 803C--210-006 23G40020
7
6301239835 MECH PARTS(LIDA407 HOLDE) 4 803C--210-007 226J1870
9
6300722246 BOLT,HEX-SCT 8 803C--210-009 221A0213
10
6300690545 SENSOR,PHOTO 2 -B2201,-B2203
803C--210-010 23G10056
1
1 6300000269 SENSOR,PHOTO(CONNECTOR) 2 803C--210-011 23G10003
12
6301277462 BLOCK 4 803C--210-012 211G3559
13 6301233482 PLATE 4 803C--210-013 211D9266
14 6301233420 BRACKET 1 803C--210-014 211F7958
15 6301233437 BRACKET 1 803C--210-015 211F7959
16 6301233710 PLATE 2 803C--210-016 211D9269
17 6301233734 PLATE 2 803C--210-017 211D9270
18 6301234120 COVER 2 803C--210-018 211A8449
19 6301234137 COVER 2 803C--210-019 211A8450
20 6301234144 COVER 1 803C--210-020 211A8451
21 6301234151 COVER 1 803C--210-021 211A8452
51 6300007756 BOLT,HEX-SCT 4 M5X12 221A0030
52
6300007770 BOLT,HEX-SCT 166 M5X20 221A0032
53
6300007930 BOLT,HEX-SCT 152 M6X40 221A0048
54
6300008241 BOLT,HEX-SCT 8 M12X40 221A0079
56
4110420703 SCR PAN 3X8 4 M3X8 PAN 221E0499
57 4111136009 SCR TRS 3X10 20 M3X10 TRS 221E0526
58 4111139109 SCR TRS 5X10 24 M5X10 TRS 221E0534
61 4111416705 WASHER SPR 5 4 SW5 221H0287
62
4111414107 WASHER V 5X10X1 4 FW5 221H0318
