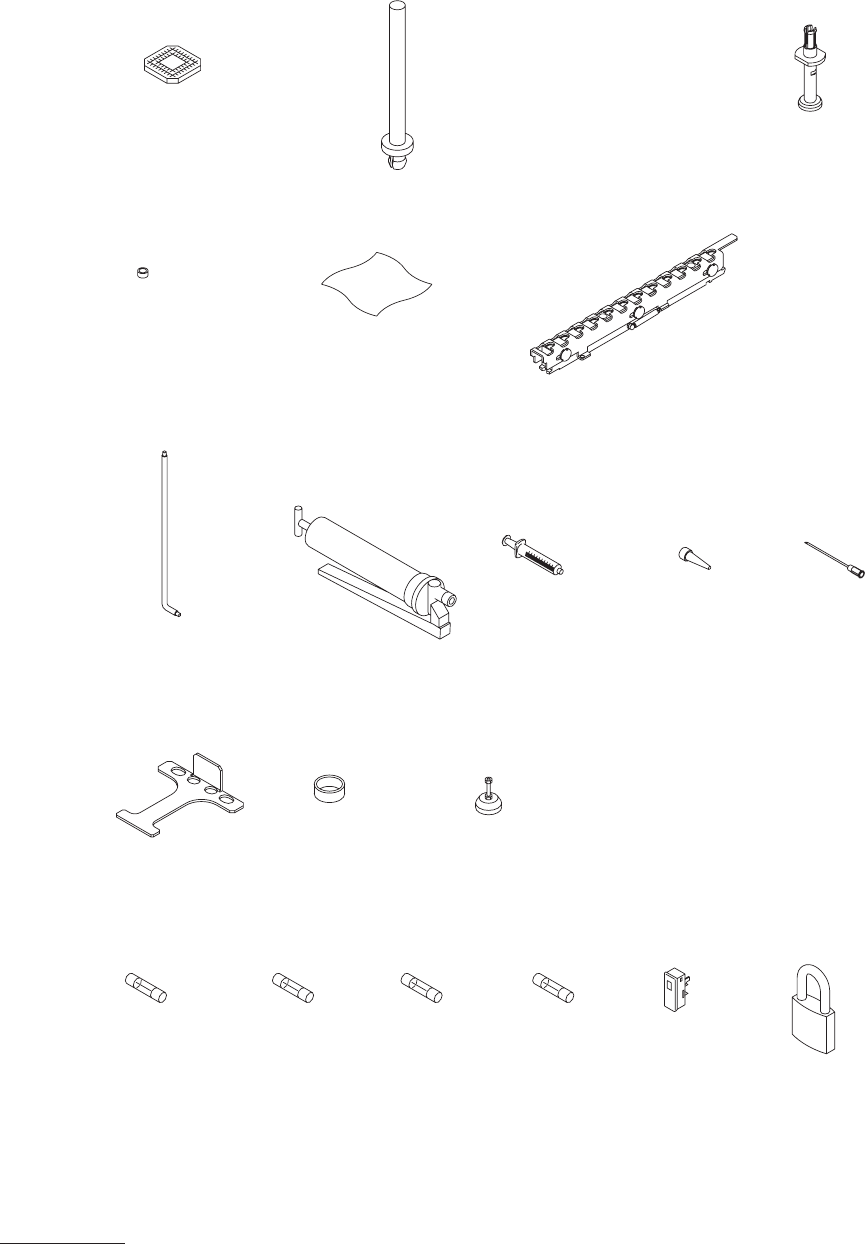

MODEL GXH-1 0503-003 244 標準付属品 ST ANDARD ACCESSORIES Fig. SA-1 治具及びスペアパーツ Jig and Spare Parts 6 7 15 52 53 54 51 56 55 5 1 2 4 16 21 22 20 17 18 19
MODEL GXH-1
1012-004
243
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FC-3
259 6301081861 CORD 1 803FC-210-159 4W202121
261 6301250458 CORD 2 803FC-210-161 4W202769
262
6301250472 CORD 2 803FC-210-162 4W202770
271
6301245713 CORD 2 803FC-210-351 4W202731
272
6301268637 CORD 2 803FC-210-352 4W202804
273
6301245737 CORD 2 803FC-210-353 4W202733
274
6301268644 CORD 2 803FC-210-354 4W202805
275
6301246420 CORD 2 803FC-210-355 4W202756
276
6301269061 CORD 1 803FC-210-356 4W202807
277
6301269078 CORD 4 803FC-210-357 4W202808
278
6301246475 CORD 2 803FC-210-358 4W202761
279
6301237510 CORD 1 803FC-210-359 4W202692
MODEL GXH-1
0503-003
244
標準付属品
STANDARD ACCESSORIES
Fig. SA-1
治具及びスペアパーツ
Jig and Spare Parts
6
7
15
52
53 54
51 5655
5
1 2 4
16
21 22
20
17 18 19
MODEL GXH-1
1012-005
245
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
SA-1
1 6301274454 PLATE 2 803SA-210-001 211D9639
2 6301266015 ROD 20 803SA-210-002 216C0722
4
6301274393 NOZZLE(HA09) 2 803SA-210-004 HA09----
5
6301269252 AIR LINE EQPT 288 803SA-210-005 225B0508
6
6301094243 MECH PARTS 5 803SA-210-006 226J1560
7
6301275246 ASSY,BLOCK 4 803SA-210-007 011G0036
15 6301332529 ROD 1 803SA-210-015 216C0787
16
6300622577 TOOL,HAND(HAND GREESEGUN) 1 803SA-210-016 228A0022
17
6301333793 TOOL,HAND(SYRINGE) 4 803SA-210-017 228A0171
18
6300622607 NOZZLE 2 803SA-210-018 216M0451
19
6300622621 NOZZLE 2 803SA-210-019 216M0453
20
6301373669 BRACKET 1 803SA-210-020 211F9768
21 6301376028 SEAL 12 803SA-210-021 226A0256
22
6301381541 ASSY,BLOCK(JIG) 1 803SA-210-022 011G0041
51 4230252109 FUSE 250V 6.3A 1 803SA-210-151 4S300023
52
4230228302 FUSE 250V 5A 1 803SA-210-152 4S300024
53
4230228005 FUSE 250V 1A 1 803SA-210-153 4V320007
54
4230228104 FUSE 250V 2A 1 803SA-210-154 4S300025
55
6301231303 FUSE,SPECIAL 1 803SA-210-155 4S300006
56
6300619737 MECH PARTS (PADLOCK) 2 803SA-210-156 226J0574
