MODEL GXH-1 0409-002 68 ヘッド部 HEAD SECTION Fig. M-2 ノズル上下部 Nozzle Leveller 103 145 135 1 18 143 154 166 161 151 166 161 151 125 127 157 . 162 . 168 153 . 161 . 167 155 . 162 . 168 156 . 162 . 168 156 . 162 . 168 155 . 162…

100%1 / 252
MODEL GXH-1
1012-005
67
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
M-1
4Unit/1Machine
4 6301273648 MOTOR,AC-SERVO 1 -M34 803M--210-004 4M150205
12 6301393834 BALL SCREW(BALL SCREW) 1 803M--210-012 223B0376
13
6301252926 GUIDE,LINEAR(GUIDE SLIDE) 1 803M--210-013 222L0687
18
6301250342 BEARING,UNIT 1 803M--210-018 222F0090
19
6301264592 BRACKET(BRACKET) 1 803M--210-119 21
1F8325
20 6301325170 BASE 1 803M--210-120 210A2288
25
6301250588 COUPLING 1 803M--210-025 223C0203
33
6301250878 SENSOR,PHOTO 2 -B3103,-B3106
803M--210-033 23G10087
34
6301250885 MECH PARTS(STOPPER) 1 803M--210-034 226J1880
35
6301250892 MECH PARTS(STOPPER) 1 803M--210-035 226J1881
38
6301308937 COVER 1 803M--210-138 211A91
16
51 6300123791 BOLT,HEX-SCT 2 M2.5X5 221A0150
52
6300007473 BOLT,HEX-SCT 2 M2.5X8 221A0002
53
6300007480 BOLT,HEX-SCT 2 M2.5X12 221A0003
54
6300007510 BOLT,HEX-SCT 8 M3X8 221A0006
55
6300007510 BOLT,HEX-SCT 20 M3X8 221A0006
56
6300007527 BOLT,HEX-SCT 6 M3X10 221A0007
57
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
58
4110505004 SCR TRS 3X6 4 M3X6 TRS 221E0529
59 6300364132 SET SCREW 1 803M--210-205 221C0049
61
4111416606 WASHER SPR 2.5 2 SW2.5 221H0279
62
4111412806 WASHER SPR 3 20 SW3 221H0281
63
4111416705 WASHER SPR 5 4 SW5 221H0287
66
4111413803 WASHER V 2.5X6.5X0.5 2 FW2.5 221H0310
67
4111413902 WASHER V 3X7X0.5 20 FW3 221H0312
68
4111414107 WASHER V 5X10X1 4 FW5 221H0318
MODEL GXH-1
0409-002
68

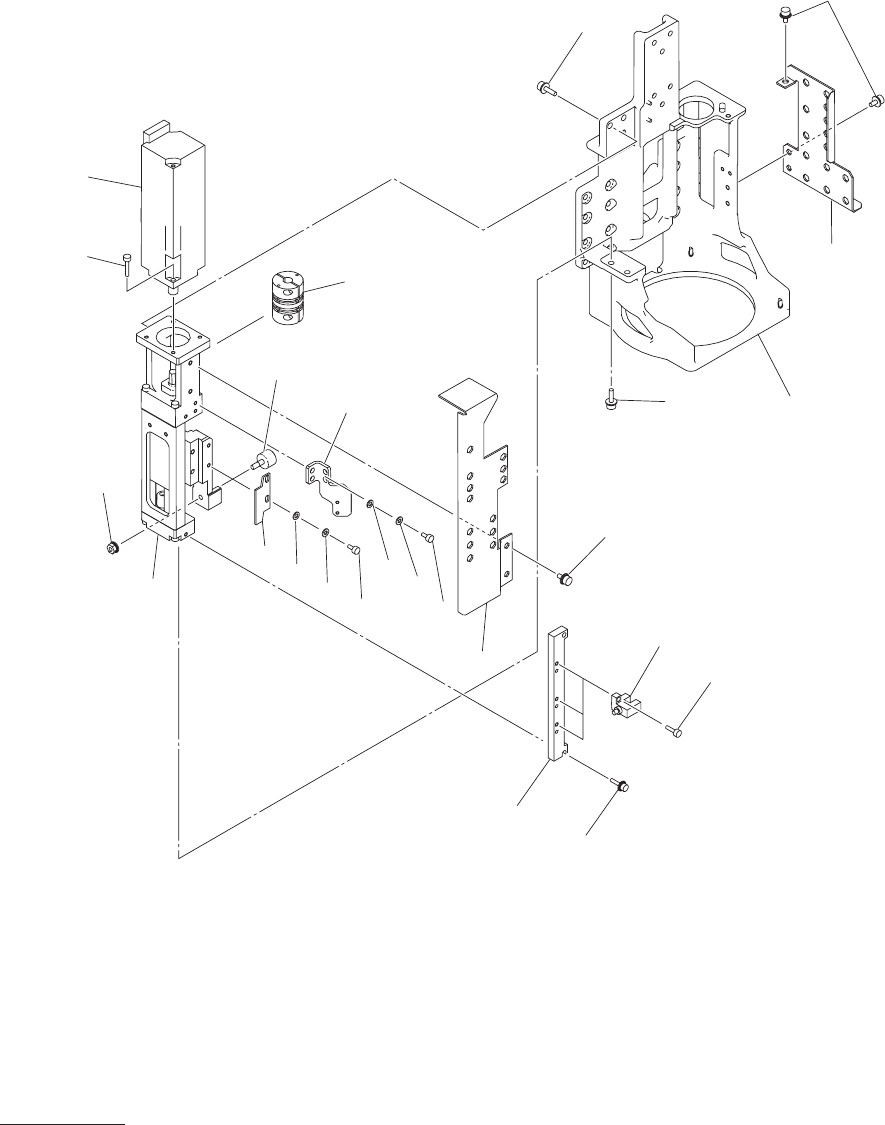

ヘッド部
HEAD SECTION
Fig. M-2
ノズル上下部
Nozzle Leveller
103
145
135
118
143
154
166
161
151
166
161
151
125
127
157
.
162
.
168
153
.
161
.
167
155
.
162
.
168
156
.
162
.
168
156
.
162
.
168
155
.
162
.
168
139
133
152
1
15
See Fig.M-4
Key No.321
MODEL GXH-1
1012-003
69
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
M-2
4Unit/1Machine
103 6301778198 MOTOR,AC-SERVO 1 -M33 803M--210-003 4M150293
115 6301264783 BLOCK(BLOCK) 1 803M--210-115 21
1G3486
118 6301273426 BRACKET 1 803M--210-118 21
1F8434
125 6301250311 CAM FOLLOWER 1 803M--210-015 222H0133
127
6301273433 GUIDE,LINEAR(KR-UNIT) 1 803M--210-017 222L0703
133
6301250878 SENSOR,PHOTO 3 -B3102,-B3104,-B3105
803M--210-033 23G10087
135
6301271682 BRACKET 1 803M--210-135 211F8403
139 6301272740 BRACKET 1 803M--210-139 211F8424
143 6301274621 BRACKET 1 803M--210-143 211F8450
145 6301250588 COUPLING 1 803M--210-025 223C0203
151
6300123791 BOLT,HEX-SCT 4 M2.5X5 221A0150
152
6300007473 BOLT,HEX-SCT 3 M2.5X8 221A0002
153
6300138924 BOLT,HEX-SCT 2 M2.5X10 221A0154
154
6300007480 BOLT,HEX-SCT 2 M2.5X12 221A0003
155
6300007503 BOLT,HEX-SCT 5 M3X6 221A0005
156
6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
157
4111409905 NUT HEX 3 1 M3 221F0079
161
4111416606 WASHER SPR 2.5 6 SW2.5 221H0279
162
4111412806 WASHER SPR 3 10 SW3 221H0281
166
4111415708 WASHER F 2.5X5X0.5 4 FWS2.5 221H0336
167
4111413803 WASHER V 2.5X6.5X0.5 2 FW2.5 221H0310
168
4111413902 WASHER V 3X7X0.5 10 FW3 221H0312
