MODEL GXH-1 1012-005 89 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE N-6 501 6301347332 FRAME 2 803N--210-001 210B3851 502 6301315973 BASE 2 803N--210-002 210A2270 503 6301233215 SHAFT 2 213A1014 507 6301275…
MODEL GXH-1
0409-002
88
コンベア部
CONVEYOR SECTION

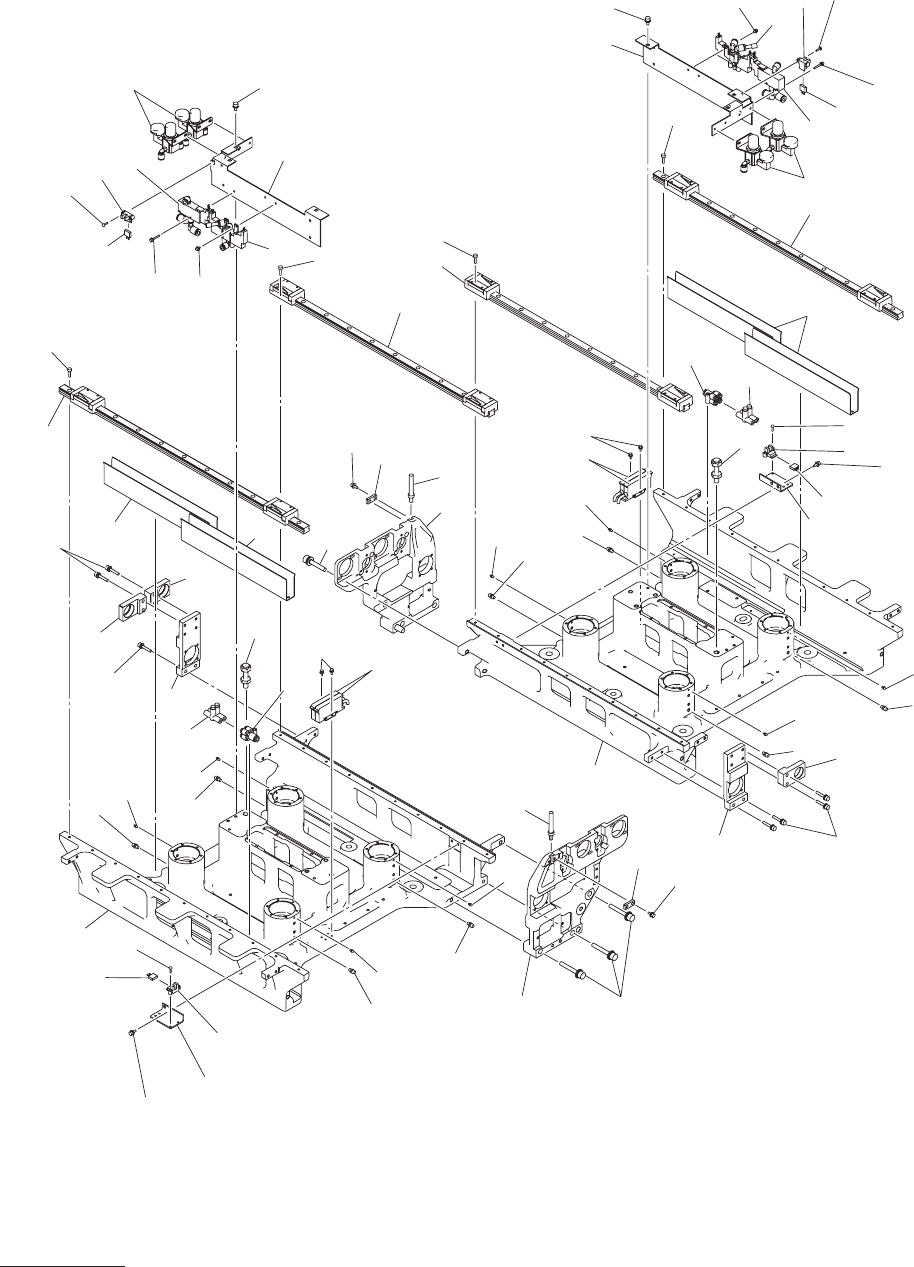

Fig. N-6
バックアップベース
Back-up Base
554
.
562
.
567
557
.
563
.
568
557
.
563
.
568
554
.
562
.
567
558
.
564
.
569
552
.
561
.
566
558
.
564
.
569
554
.
562
.
567
557
.
563
.
568
552
.
561
.
566
554
.
562
.
567
555
538
536
539
555
539
555
530
535
534
527
559
529
528
547
517
518
517
518
503
537
517
518
508
517
518
501
507
537
503
517
502
518
517
518
527
547
528
559
501
517
518
517
518
535
507
508
534
508
536
536
538
555
530
502
528
512
551
.
561
.
566
533
553
.
561
.
566
556
.
563
.
568
531
559
527
532
553
.
561
.
566
551
.
561
.
566
556
.
563
.
568
559
532
528
527
512
531
533
529
MODEL GXH-1
1012-005
89
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-6
501 6301347332 FRAME 2 803N--210-001 210B3851
502 6301315973 BASE 2 803N--210-002 210A2270
503
6301233215 SHAFT 2 213A1014
507
6301275529 PLATE 2 803N--210-207 211D9643
508 6301314730 BLOCK 3 803N--210-208 211G3751
512 6301360560 BRACKET 2 803N--210-012 211F9603
517 6300569346 GREASE NIPPLE 8 803N--210-017 226B0032
518
6300034301 GREASE NIPPLE 8 803N--210-018 226B0002
527
6300000252 SENSOR,PHOTO 4 -B5301,-B5501,-B5601
803N--210-027 23G10002
528
6300000269 SENSOR,PHOTO(CONNECTOR) 4 803N--210-028 23G10003
529
6300807752 BOLT 2 803N--210-029 221E0157
530
6301237039 SENSOR,PELEC 4 -B4201,-B4202 Amp
803N--210-030 23G00242
531
6301236643 AIR LINE EQPT 4 803N--210-031 225B0494
532
6301251844 VALVE 2 -YSV0836 803N--210-032 225C0107
533 6301237053 VALVE 2 -YSV0835,-YSV0836
803N--210-033 225C0101
534
6300482935 AIR LINE EQPT 4 803N--210-034 225B0251
535
6301246260 AIR LINE EQPT 2 803N--210-035 225B0502
536
6301273679 BRACKET 4 803N--210-236 211F8436
537 6301243832 PLATE 2 211D9362
538 6301256443 GUIDE,LINEAR 2 803N--210-038 222L0689
539
6301256450 GUIDE,LINEAR 2 803N--210-039 222L0690
547
6301232911 BRACKET 2 803N--210-217 211F7944
551 6300007503 BOLT,HEX-SCT 4 M3X6 221A0005
552
6300007510 BOLT,HEX-SCT 8 M3X8 221A0006
553
6300007565 BOLT,HEX-SCT 4 M3X20 221A0011
554 6300007626 BOLT,HEX-SCT 8 M4X10 221A0017
555
6300007640 BOLT,HEX-SCT 42 M4X14 221A0019
556
6300007749 BOLT,HEX-SCT 8 M5X10 221A0029
557
6300007787 BOLT,HEX-SCT 10 M5X25 221A0033
558
6300008074 BOLT,HEX-SCT 6 M8X50 221A0062
559
4110406202 SCR PAN 3X10 8 M3X10 PAN 221E0488
561 4111412806 WASHER SPR 3 16 SW3 221H0281
562
4111412905 WASHER SPR 4 8 SW4 221H0284
563
4111416705 WASHER SPR 5 18 SW5 221H0287
564
4111413100 WASHER SPR 8 6 SW8 221H0291
566
4111413902 WASHER V 3X7X0.5 16 FW3 221H0312
567
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
568
4111414107 WASHER V 5X10X1 18 FW5 221H0318
569
4111414503 WASHER V 8X17X1.6 6 FW8 221H0323
MODEL GXH-1
0503-003
90
コンベア部
CONVEYOR SECTION

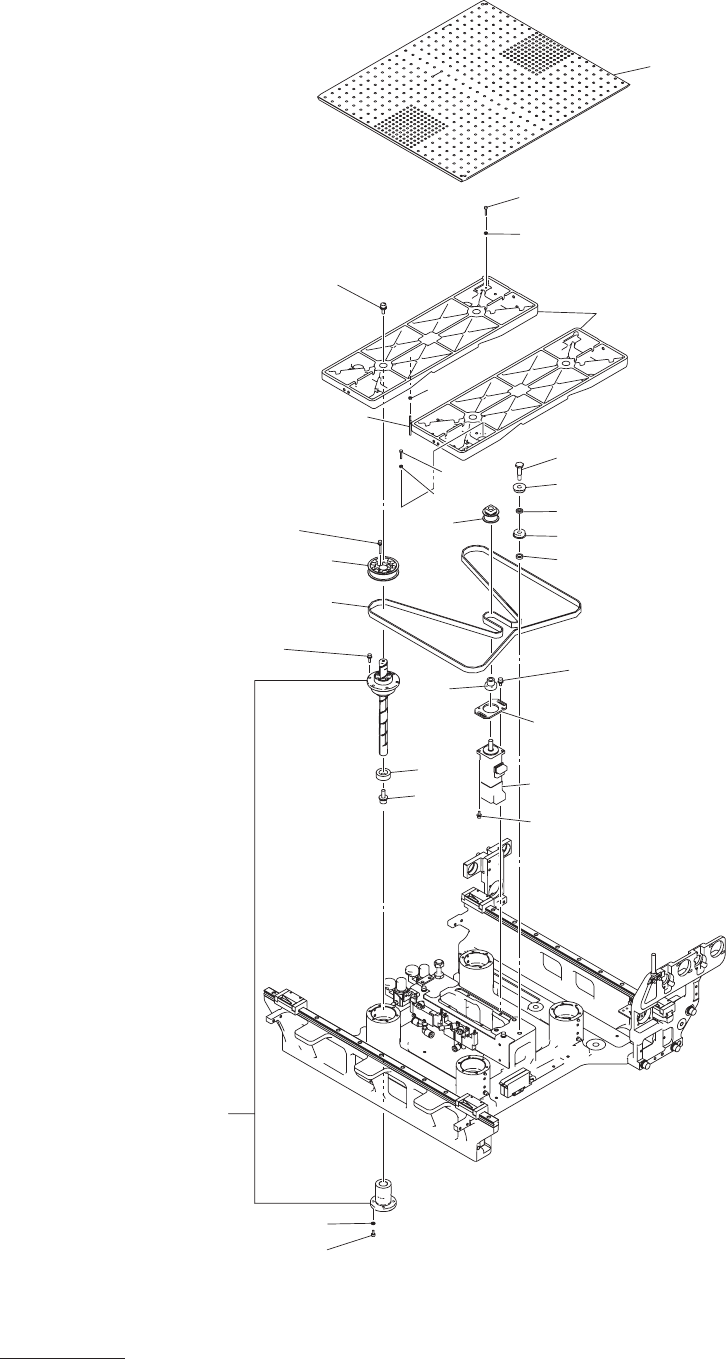

Fig. N-7
