MODEL TPM-1 10F/R-C 021 1-001 118 162 163 161 102 103 105 101 See Fig.K-1 Key No.4 104 106 メカ廻り MECHANICAL DISTRIBUTION SECTION Fig. K-2 エア配管１ Air Piping-1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0211-001
117
1 630 117 7274 CASTER 4 748K--310-001
2 630 003 0570 FEED SCREW 4 748K--310-002
3 630 029 8178 BLOCK,LOCATE 4 748K--310-003
4 630 102 9825 BASE 1 748K--310-004
61 630 000 8012 BOLT,HEX-SCT 16 748K--310-061
62 411 141 4503 WASHER V 8X17X1.6 16 748K--310-062
63 411 141 3100 WASHER SPR 8 16 748K--310-063
K-1
MODEL TPM-110F/R-C
0211-001
118
162
163
161
102
103
105
101
See Fig.K-1
Key No.4
104
106
メカ廻り
MECHANICAL DISTRIBUTION SECTION

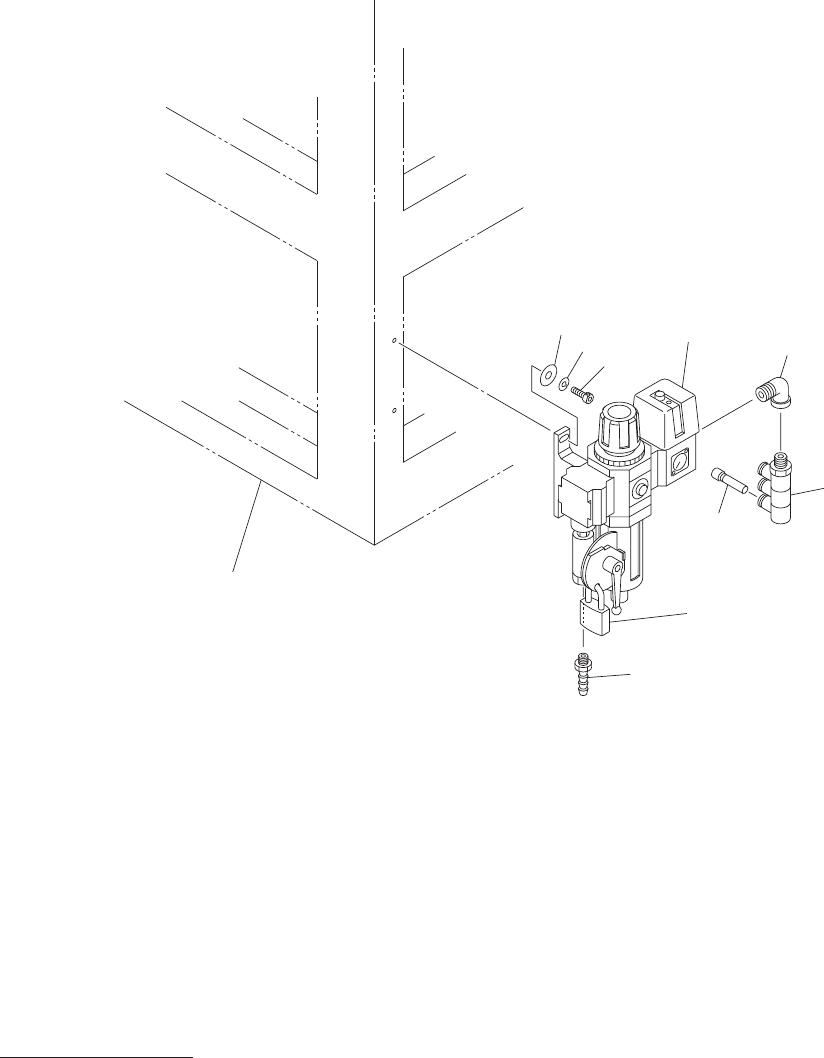

Fig. K-2
エア配管１
Air Piping-1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0211-001
119
101 630 057 9383 AIR LINE EQPT 1 #A3-211496 748K--310-101
102 630 003 7890 PIPE FITTINGS 1 748K--310-102
103 630 092 8181 PIPE FITTINGS 1 748K--310-103
104 630 096 8163 MECH PARTS 1 748K--310-104
105 630 003 7814 PIPE FITTINGS 1 748K--310-105
106 630 061 9737 MECH PARTS (PADLOCK) 1 748K--310-106
161 630 000 7893 BOLT,HEX-SCT 2 748K--310-161
162 630 001 0237 WASHER 2 748K--310-162
163 411 141 3001 WASHER SPR 6 2 748K--310-163
K-2
