Mechanical Parts List - 第29页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 3 ｶﾊﾞｰ部(共通部1) COVER SECT.(CO MMON SEC T.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610070383AA COVER UNIT ｶﾊﾞｰ ﾕﾆｯﾄ 1 005 N210071800AA DOOR(L) ﾄﾞｱ(L) 1 006 N210071802AB DOOR ﾄﾞｱ…

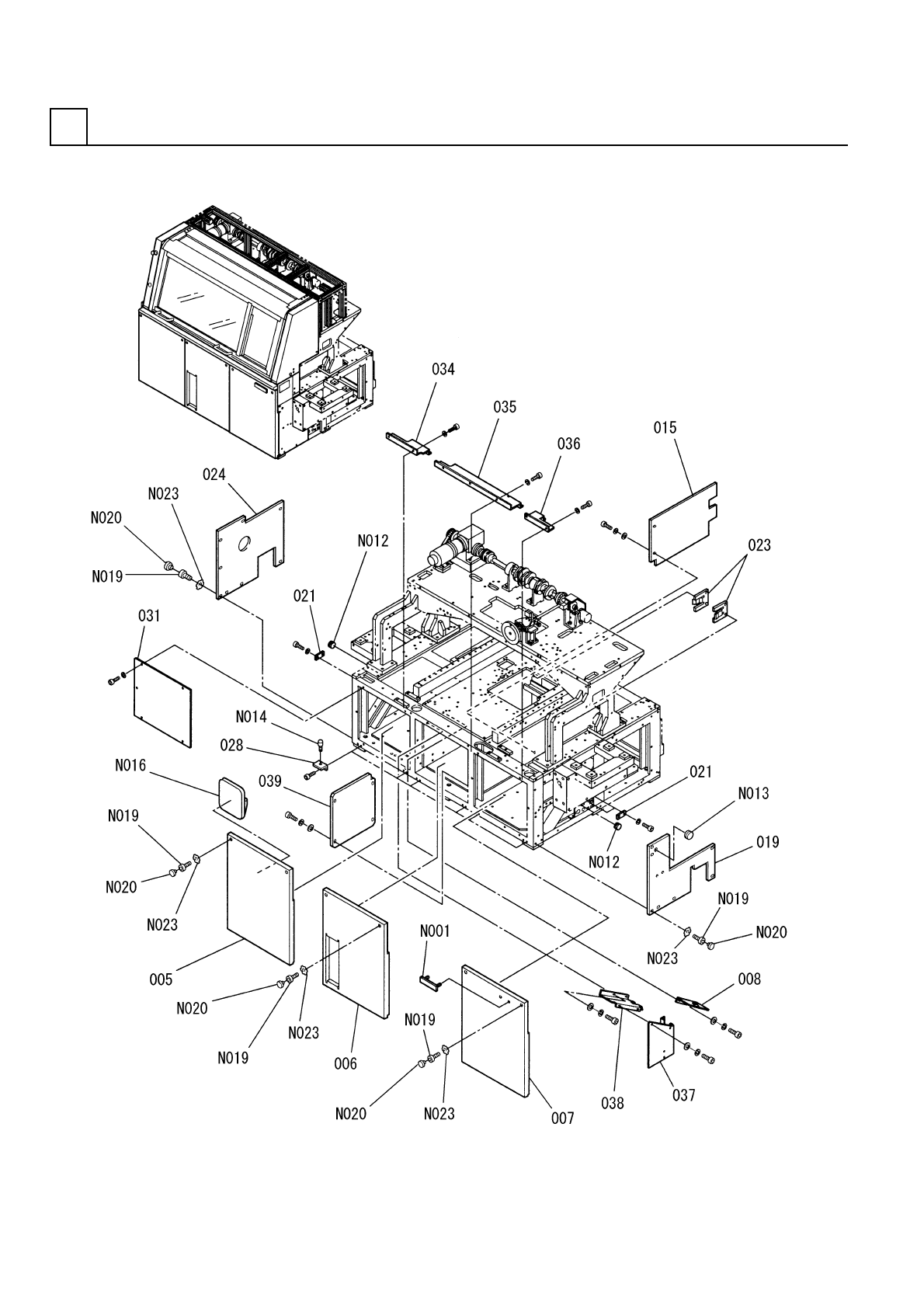

ｶﾊﾞｰ部(共通部1)
COVER SECT.(COMMON SECT.-1)
3
FN610070383AA_04-1
M11
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(共通部1)
COVER SECT.(COMMON SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610070383AA
COVER UNIT ｶﾊﾞｰ ﾕﾆｯﾄ
1
005 N210071800AA
DOOR(L) ﾄﾞｱ(L)
1
006 N210071802AB
DOOR ﾄﾞｱ
1007 N210078237AB
DOOR(R) ﾄﾞｱ(R)
1008 N210070010AB
BRACKET ﾌﾞﾗｹｯﾄ
1
015 N210071790AA
PLATE ﾌﾟﾚｰﾄ
1
019 N210072747AB
COVER ｶﾊﾞｰ
4021 1083802081
PLATE ﾌﾟﾚｰﾄ
2023 N210071791AA
BRACKET ﾌﾞﾗｹｯﾄ
1
024 N210072746AC
COVER ｶﾊﾞｰ
6028 N210071794AB
BRACKET ﾌﾞﾗｹｯﾄ
1031 N210078190AA
COVER ｶﾊﾞｰ
1
034 N210105199AA
COVER ｶﾊﾞｰ
1
035 N210105116AA
COVER ｶﾊﾞｰ
1036 N210105117AA
COVER ｶﾊﾞｰ
1037 N210094702AA
BRACKET ﾌﾞﾗｹｯﾄ
1
038 N210094703AA
BRACKET ﾌﾞﾗｹｯﾄ
1
039 N210095052AA
PLATE ﾌﾟﾚｰﾄ
P-18(screw) S
1
N001
KXF0DXPLA00
NAME PLATE ﾒｲﾊﾞﾝ
C-30-SG-24A,WHITE
2
N012
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
C-30-SG-36A,WHITE
1
N013
N980C30S-010
GROMMET ｸﾞﾛﾒｯﾄ
C-30-RK-12
6
N014
KXF01E6AA00
RUBBER LEG ｺﾞﾑｱｼ
500W
1
N016
N986YYYY-B55
POCKET ﾎﾟｹｯﾄ
JB-A M5X8 +
28
N019
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
28
N020
N986YYYY-814
CAP ｷｬｯﾌﾟ
5 External toothed Ste
25
N023
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M12
FN610070383AA_04-1
ｶﾊﾞｰ部(共通部2)
COVER SECT.(COMMON SECT.-2)
3
FN610070383AA_04-2
M13
