Mechanical Parts List - 第103页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 7 挿入ﾍｯﾄﾞ部(ﾊﾟﾚｯﾄ開閉部1) INSERTION HEAD SECT.(P ALLET OPE N & SHUT SECT.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610074668AA INSERTION HEA D UNIT ｿｳﾆｭｳﾍｯﾄﾞﾕﾆｯﾄ 1 001 X02G46001…
挿入ﾍｯﾄﾞ部(ﾊﾟﾚｯﾄ開閉部1)
INSERTION HEAD SECT.(PALLET OPEN & SHUT SECT.-1)
7
FN610074668AA_01-1
M85
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(ﾊﾟﾚｯﾄ開閉部1)
INSERTION HEAD SECT.(PALLET OPEN & SHUT SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610074668AA
INSERTION HEAD UNIT ｿｳﾆｭｳﾍｯﾄﾞﾕﾆｯﾄ
1
001 X02G46001
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210088839AC
GUIDE ｶﾞｲﾄﾞ
1005 X02G46103
BRACKET(CYLINDER) ﾌﾞﾗｹｯﾄ(ｼﾘﾝﾀﾞ)
1011 X01A46032
PIN ﾋﾟﾝ
1
012 N210087083AB
BRACKET ﾌﾞﾗｹｯﾄ
1
013 N210088835AA
BLOCK ﾌﾞﾛｯｸ
1014 X01A46014
BRACKET ﾌﾞﾗｹｯﾄ
1016 X01A46029
PIN ﾋﾟﾝ
Thick washer for M8
6
N001
N510020102AA
WASHER ｻﾞｶﾞﾈ
6667
1
N006
N9866667
SPRING ﾊﾞﾈ
CDJ2B16-15
1
N007
N401CDJ2-C51
CYLINDER ｼﾘﾝﾀﾞ
6,STEEL,P.C
1
N011
XUB6FP
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
8,STEEL,P.C
1
N012
XUB8FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
MMS6-10
2
N015
N510020617AA
PIN ﾋﾟﾝ
MMS8-15
2
N016
N510020629AA
PIN ﾋﾟﾝ
M86
FN610074668AA_01-1

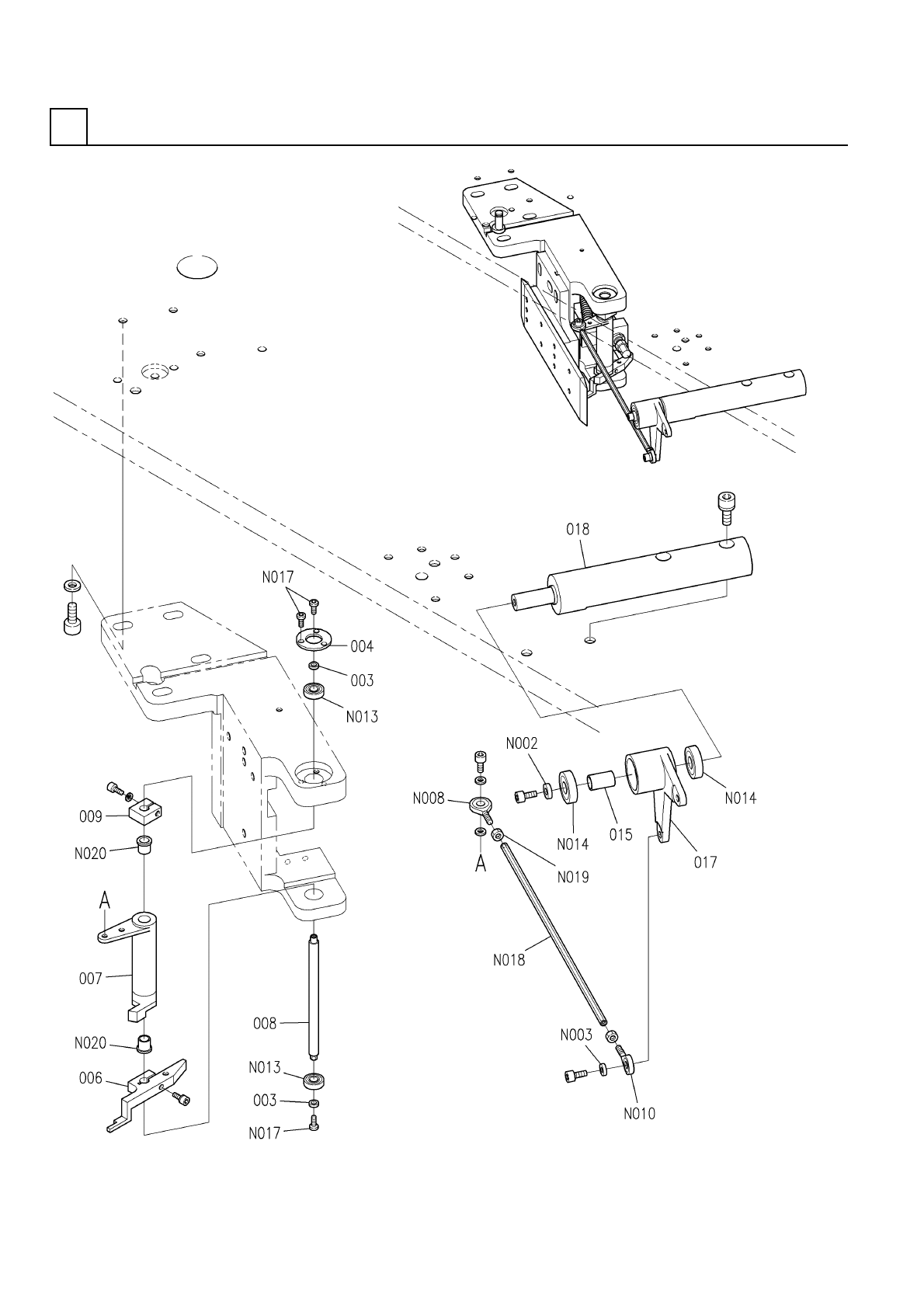

挿入ﾍｯﾄﾞ部(ﾊﾟﾚｯﾄ開閉部2)
INSERTION HEAD SECT.(PALLET OPEN & SHUT SECT.-2)
7
FN610074668AA_01-2
M87
