PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 7 挿入ﾍｯﾄﾞ部(ｶﾊﾞｰ部) INSERTION HEAD SECT.(C OVER SECT .) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610079013AA INSERTION HEA D UNIT ｿｳﾆｭｳﾍｯﾄﾞﾕﾆｯﾄ 1 001 N210093256AB PANEL ﾊﾟﾈﾙ 1 002 N2…

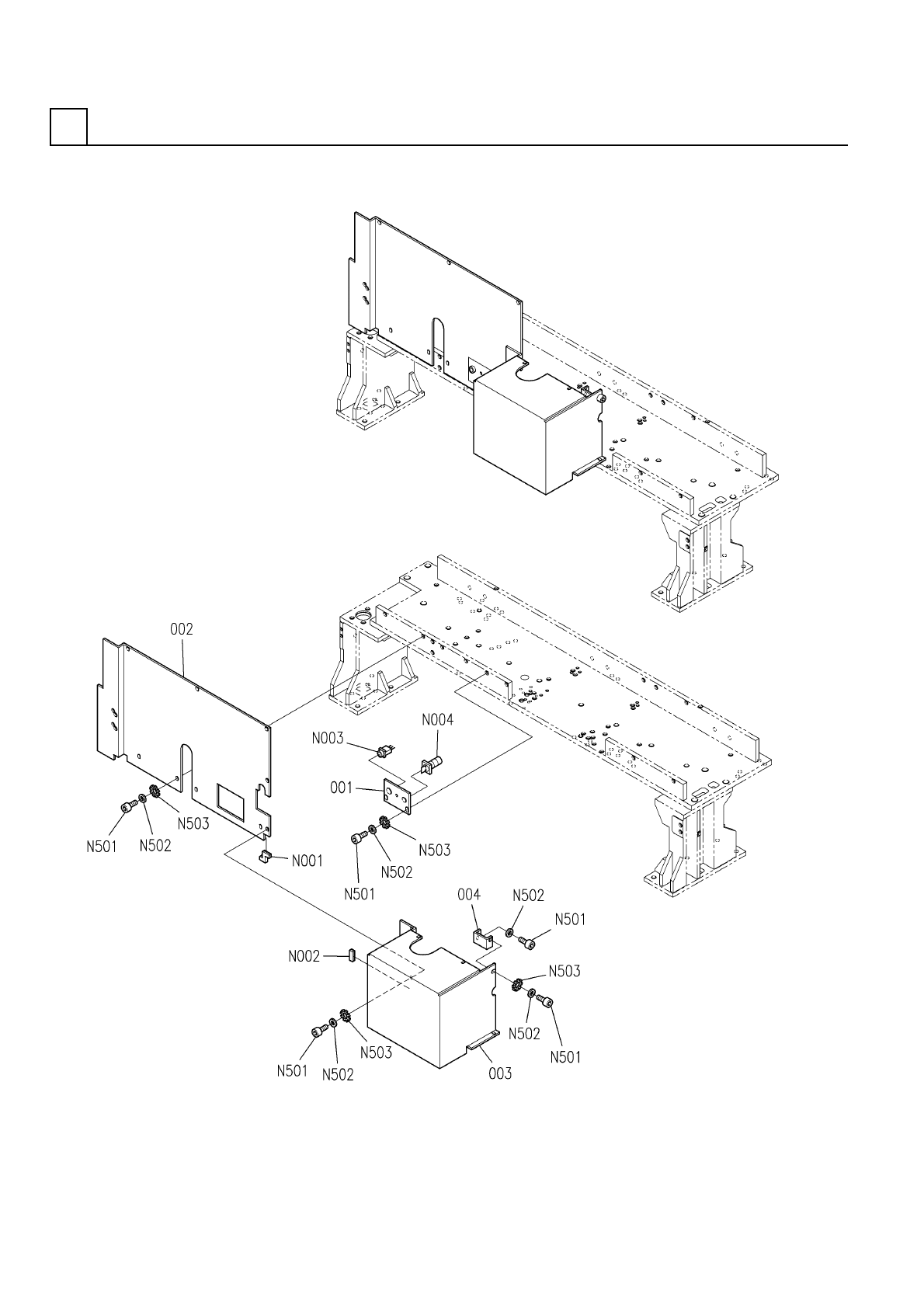

挿入ﾍｯﾄﾞ部(ｶﾊﾞｰ部)
INSERTION HEAD SECT.(COVER SECT.)
7
FN610079013AA_01
M89
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(ｶﾊﾞｰ部)
INSERTION HEAD SECT.(COVER SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610079013AA
INSERTION HEAD UNIT ｿｳﾆｭｳﾍｯﾄﾞﾕﾆｯﾄ
1
001 N210093256AB
PANEL ﾊﾟﾈﾙ
1
002 N210093259AB
COVER ｶﾊﾞｰ
1003 N210093260AB
COVER ｶﾊﾞｰ
1004 N210093261AA
BRACKET ﾌﾞﾗｹｯﾄ
EL-24
1
N001
N348EL24
BUSHING ﾌﾞｯｼｭ
EL-10
1
N002
N348EL10
BUSHING FOR WIRING ﾌﾞｯｼｭ
LW6MB-M1C2MLG S
1
N003
N510029028AA
SWITCH ｽｲｯﾁ
TM-2-8221/EZ/S-N S
1
N004
N306TM28-008
SWITCH ｽｲｯﾁ
M5X10-10.9 A2J (Trival
16
N501
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
16
N502
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 External toothed Ste
16
N503
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M90
FN610079013AA_01

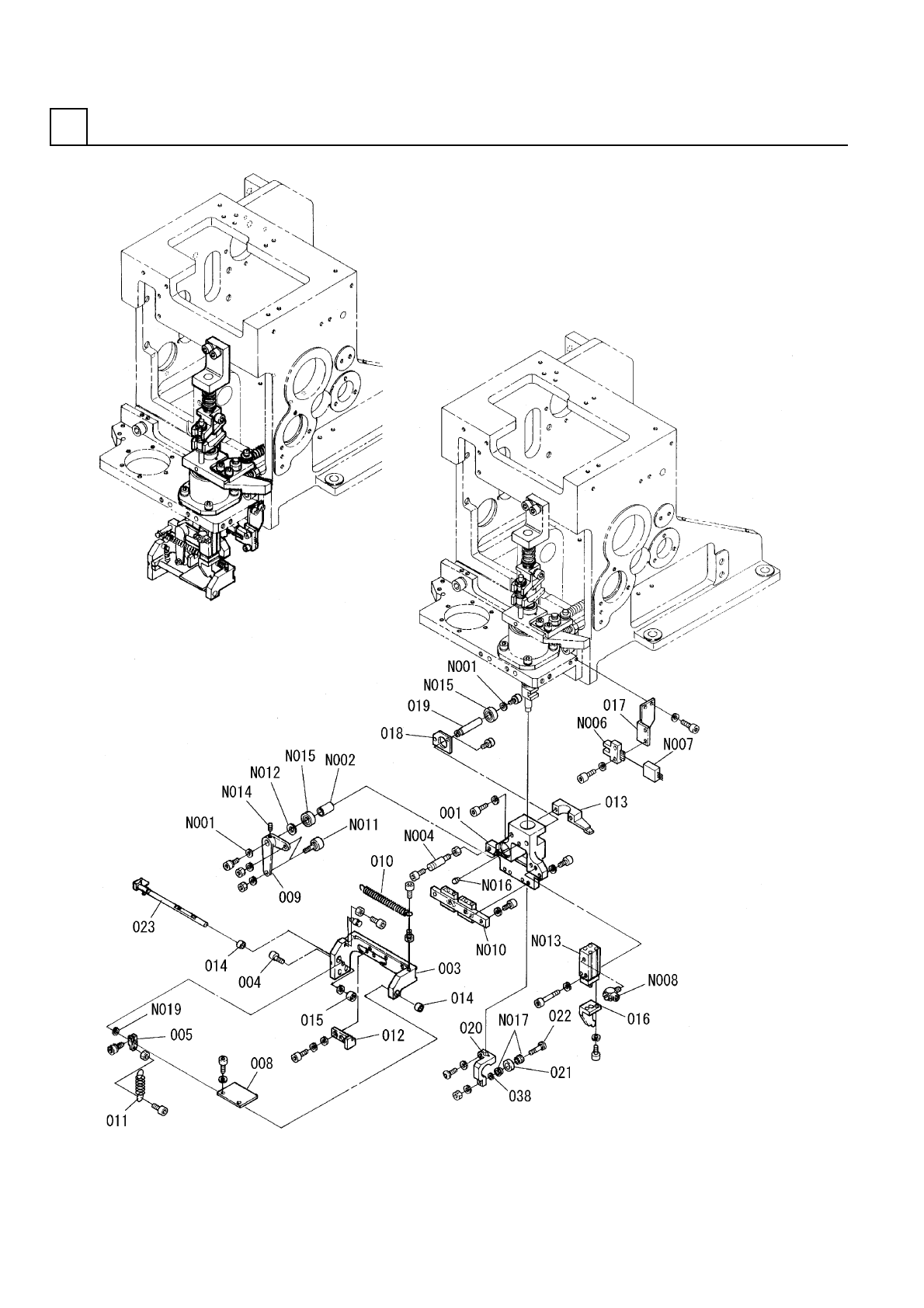

挿入部(移ｼ替ｴﾍｯﾄﾞ部1)
INSERT SECT.(TRANSFER HEAD SECT.-1)
8
FX02G44000AB_03-1
M91
