Mechanical Parts List - 第117页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 9 ｱﾝﾋﾞﾙ上部(35°) UPPER ANVIL (3 5 DEG) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610082091AA UPPER ANVIL U NIT ｱﾝﾋﾞﾙｼﾞｮｳﾌﾞﾕﾆｯﾄ 2 001 X02G51201 PIN ﾋﾟﾝ 1 002 X02G5120301 ANVIL(UPPER) …

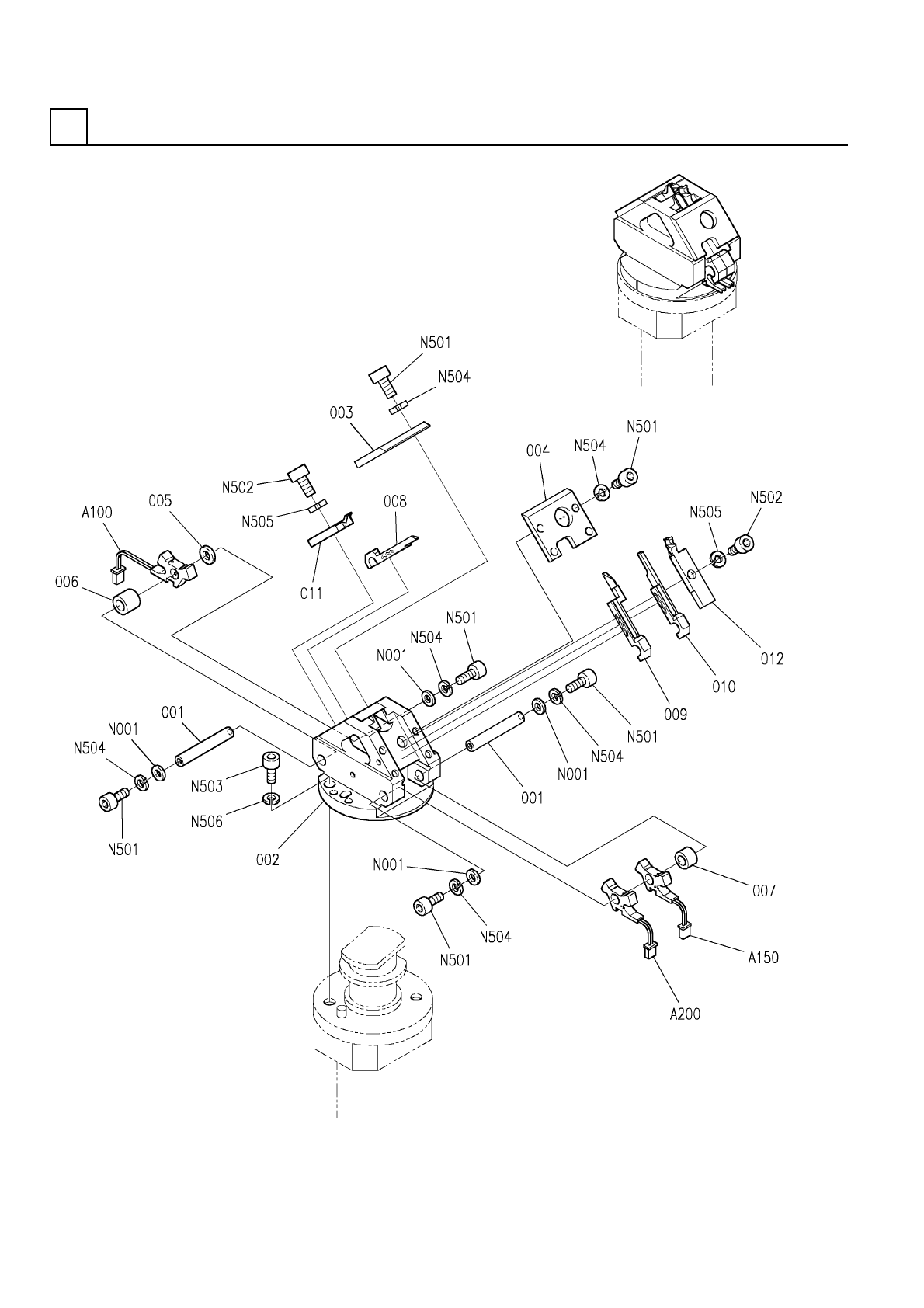

ｱﾝﾋﾞﾙ上部(35°)
UPPER ANVIL (35 DEG)
9
FN610082091AA_00
M99
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
9
ｱﾝﾋﾞﾙ上部(35°)
UPPER ANVIL (35 DEG)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610082091AA
UPPER ANVIL UNIT ｱﾝﾋﾞﾙｼﾞｮｳﾌﾞﾕﾆｯﾄ
2
001 X02G51201
PIN ﾋﾟﾝ
1
002 X02G5120301
ANVIL(UPPER) ｱﾝﾋﾞﾙ(ｱｯﾊﾟｰ)
1003 X01L51002
GUIDE PLATE ｶﾞｲﾄﾞﾌﾟﾚｰﾄ
1004 X01L51003
GUIDE PLATE ｶﾞｲﾄﾞﾌﾟﾚｰﾄ
1
005 X01L51009
COLLAR ｶﾗｰ
1
006 X01L51010
COLLAR ｶﾗｰ
1007 X01L51011
COLLAR ｶﾗｰ
1008 N210056708AA
CUTTER ｶｯﾀｰ
1
009 N210056710AA
CUTTER ｶｯﾀｰ
1010 N210056711AA
CUTTER ｶｯﾀｰ
1011 X02G51111
CUTTER ｶｯﾀｰ
1
012 X02G51112
CUTTER ｶｯﾀｰ
1
A100
N610082092AA
LEVER ﾚﾊﾞｰ
1
A150
N610082093AA
LEVER ﾚﾊﾞｰ
1
A200
N610082094AA
LEVER ﾚﾊﾞｰ
87FWSSB-D8.0-V3.0-T2.0
4
N001
N510031008AA
WASHER ｻﾞｶﾞﾈ
M3X8-10.9 A2J (Trivale
12
N501
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trivale
2
N502
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X6-10.9 A2J (Trivale
2
N503
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
No.2 3 S A2J (Trivalen
12
N504
N510018327AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
No.2 4 S A2J (Trivalen
2
N505
N510018330AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
No.2 5 S A2J (Trivalen
2
N506
N510018332AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
M100
FN610082091AA_00
下部ｱﾝﾋﾞﾙ部(本体部1)
LOWER ANVIL SECT.(MAIN BODY SECT.-1)
10
FN610074515AA_02-1
M101
