PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 10 下部ｱﾝﾋﾞﾙ部(本体部1) LOWER ANVIL SE CT.(MAIN BODY SEC T.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610074515AA UNDER ANVIL U NIT ｶﾌﾞｱﾝﾋﾞﾙﾕﾆｯﾄ 1 002 X02G52102 COLLAR ｶﾗｰ 1 003 X02G5…

100%1 / 332

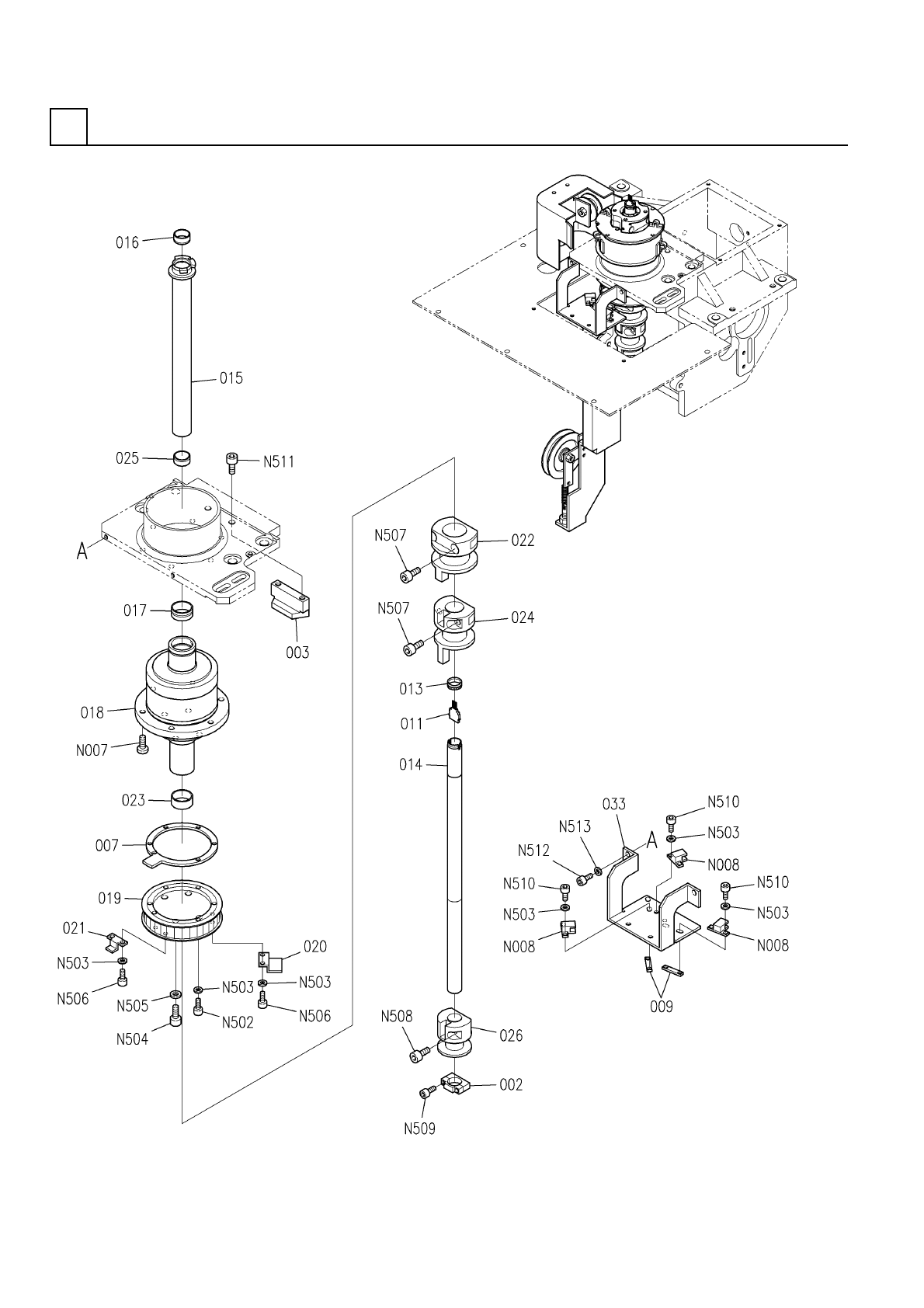

下部ｱﾝﾋﾞﾙ部(本体部1)
LOWER ANVIL SECT.(MAIN BODY SECT.-1)
10
FN610074515AA_02-1
M101
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
10
下部ｱﾝﾋﾞﾙ部(本体部1)
LOWER ANVIL SECT.(MAIN BODY SECT.-1)
部 品 名 品　 番 個数 備 考
R
1
R
2
1 N610074515AA
UNDER ANVIL UNIT ｶﾌﾞｱﾝﾋﾞﾙﾕﾆｯﾄ
1
002 X02G52102
COLLAR ｶﾗｰ
1
003 X02G52103
BLOCK(STOPPER) ﾌﾞﾛｯｸ(ｽﾄｯﾊﾟ)
1007 X02G52112
PLATE(STOPPER) ﾌﾟﾚｰﾄ(ｽﾄｯﾊﾟ)
1009 N210084456AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1
011 X02G52201
PIN(BACK UP) ﾋﾟﾝ(ﾊﾞｯｸｱｯﾌﾟ)
1
013 X01L5201201
NUT ﾅｯﾄ
1014 X01L52013
ROD ﾛｯﾄﾞ
1015 N210054932AA
SHAFT ｼｬﾌﾄ
1
016 X01L52015
BUSHING ﾌﾞｯｼｭ
1017 X01L52018
BUSHING ﾌﾞｯｼｭ
1018 X01L52019
BALL SPLINE ﾎﾞｰﾙｽﾌﾟﾗｲﾝ
1
019 X01L52022
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1
020 X01L52023
DETECTION PLATE ｹﾝｼｭﾂﾊﾞﾝ
1021 X01L52024
DETECTION PLATE ｹﾝｼｭﾂﾊﾞﾝ
1022 X01L52025
SHIFTER ｼﾌﾀｰ
1
023 X01L52026
BUSHING ﾌﾞｯｼｭ
1
024 X01L52027
SHIFTER ｼﾌﾀｰ
1025 X01L52028
BUSHING ﾌﾞｯｼｭ
1026 X01L52029
SHIFTER ｼﾌﾀｰ
1
033 X01L52058
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
M6X20-10.9 A2J (Trival
6
N007
N510017558AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ
EE-SX672A
3
N008
N310EESX672A
SENSOR ｾﾝｻ
M3X25-10.9 A2J (Trival
6
N502
N510017321AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
16
N503
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X12-10.9 A2J (Trival
4
N504
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6 10H A2J (Trivalent)
4
N505
N510018481AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X5-10.9 A2J (Trivale
4
N506
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Trival
4
N507
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Trival
2
N508
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X16-10.9 A2J (Trival
2
N509
N510017313AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X10-10.9 A2J (Trival
6
N510
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Trival
2
N511
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Trival
2
N512
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
2
N513
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M102
FN610074515AA_02-1
下部ｱﾝﾋﾞﾙ部(本体部2)

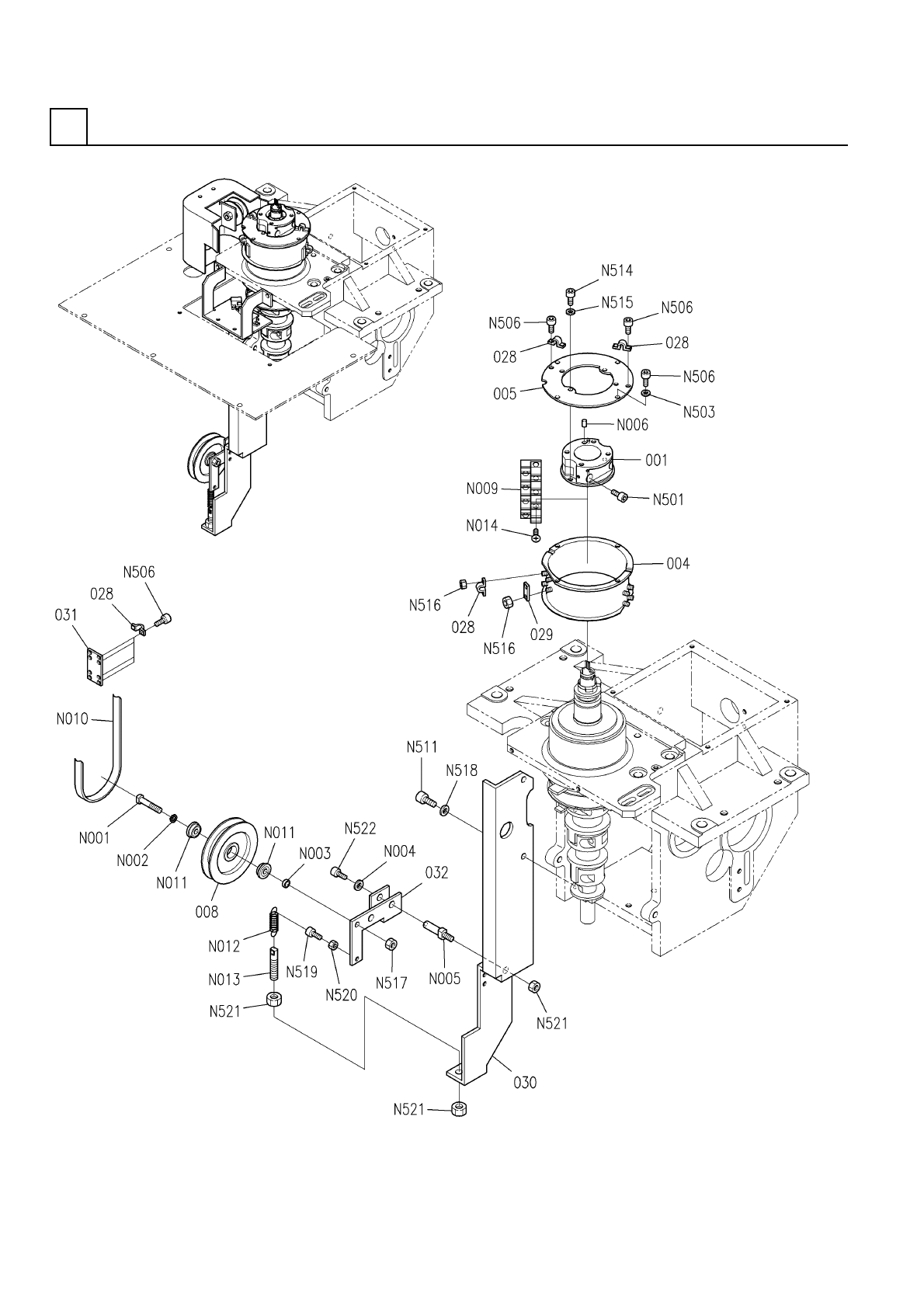

LOWER ANVIL SECT.(MAIN BODY SECT.-2)
10
FN610074515AA_02-2
