PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 10 下部ｱﾝﾋﾞﾙ部(ｱﾝﾋﾞﾙ動力部2) LOWER ANVIL SE CT.(ANVI L DRIVING SECT.-2) 部 品 名 品 番 個数 備 考 R 1 R 2 MSMD042PJA S 1 A002 N610074304AA MOTOR ﾓｰﾀ 1 013 N210092144AA COVER ｶﾊﾞｰ 1 …

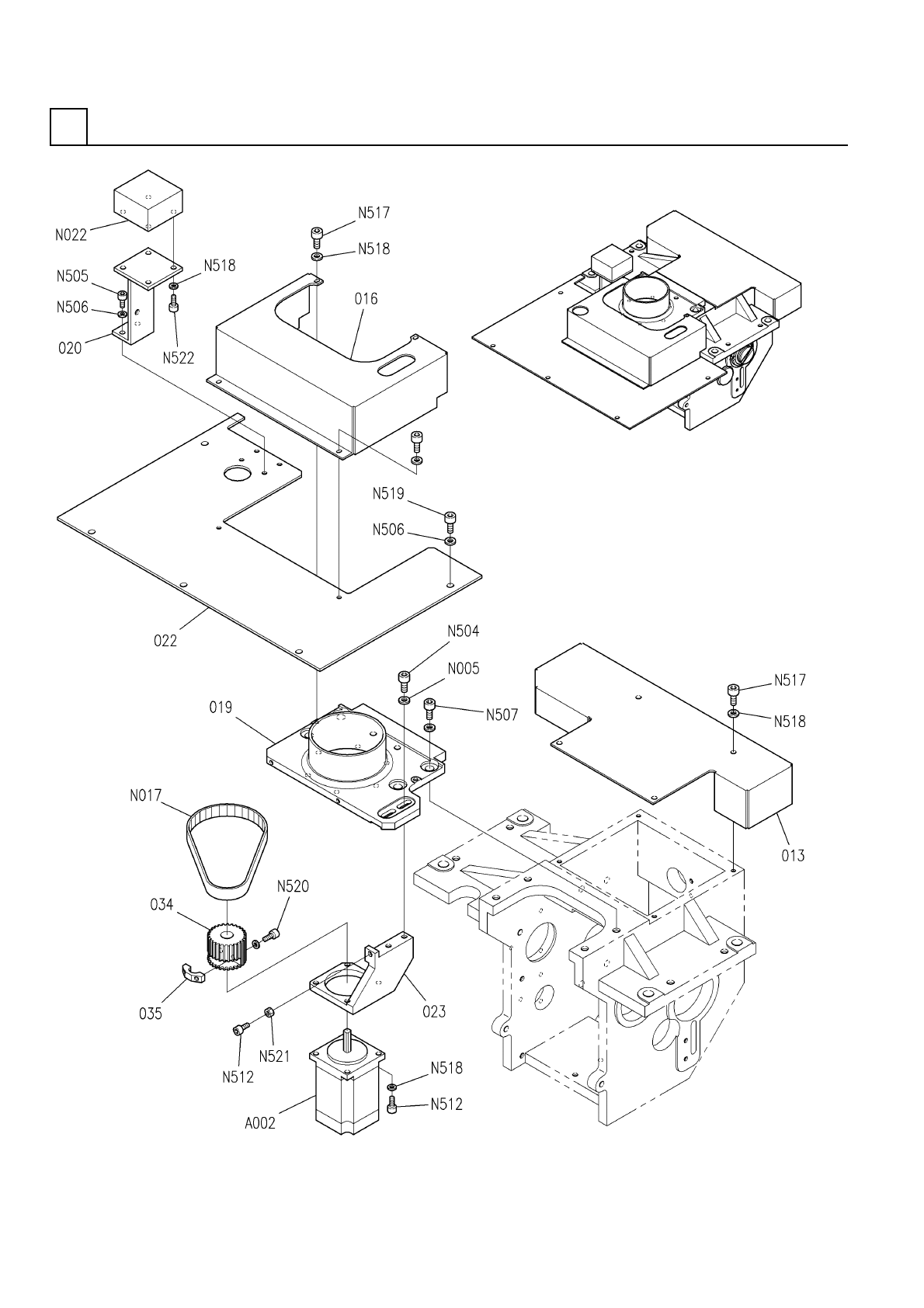

下部ｱﾝﾋﾞﾙ部(ｱﾝﾋﾞﾙ動力部2)
LOWER ANVIL SECT.(ANVIL DRIVING SECT.-2)
10
FN610074518AA_02-2
M109
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
10
下部ｱﾝﾋﾞﾙ部(ｱﾝﾋﾞﾙ動力部2)
LOWER ANVIL SECT.(ANVIL DRIVING SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
MSMD042PJA S
1
A002
N610074304AA
MOTOR ﾓｰﾀ
1
013 N210092144AA
COVER ｶﾊﾞｰ
1
016 N210092149AA
COVER ｶﾊﾞｰ
1019 X02G53116
PLATE ﾌﾟﾚｰﾄ
1020 N210101373AA
BRACKET ﾌﾞﾗｹｯﾄ
1
022 N210092155AB
COVER ｶﾊﾞｰ
1
023 N210092158AA
BRACKET ﾌﾞﾗｹｯﾄ
1034 X01L53045
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1035 X01L53046
NUT ﾅｯﾄ
M6
2
N005
N510020101AA
WASHER ｻﾞｶﾞﾈ
400-5GT-15
1
N017
N6414005GT15
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
NKDB-C49/49IR-850S S
1
N022
N510028696AA
LAMP LED ﾗﾝﾌﾟ
M6X20-10.9 A2J (Trival
2
N504
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Trival
2
N505
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
7
N506
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M8X16-10.9 A2J (Trival
4
N507
N510017470AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Trival
5
N512
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trivale
8
N517
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
16
N518
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5X8-10.9 A2J (Trivale
5
N519
N510017419AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Trival
2
N520
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4-6H-4T A2J (Trivalen
1
N521
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X10-10.9 A2J (Trival
4
N522
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M110
FN610074518AA_02-2

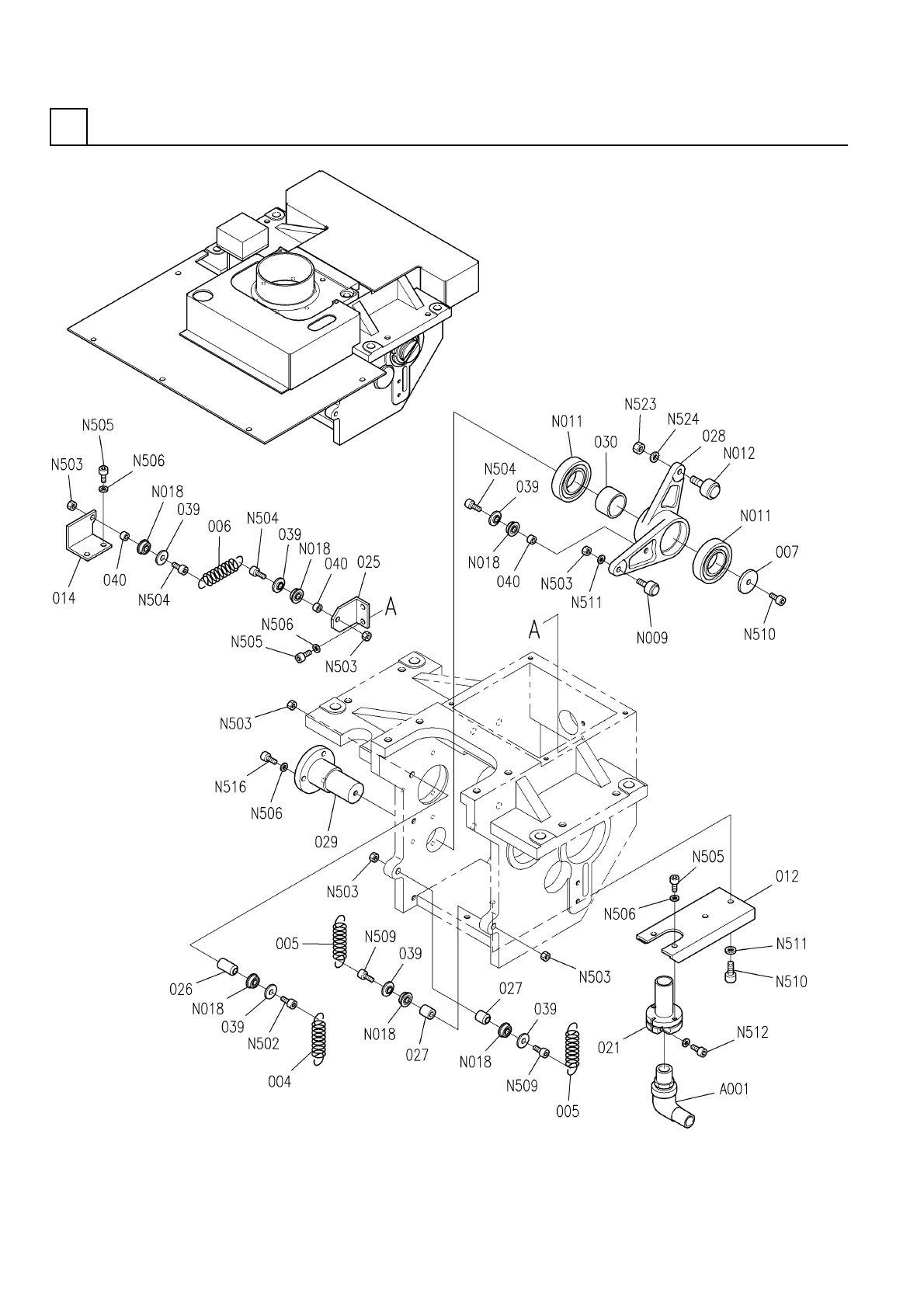

下部ｱﾝﾋﾞﾙ部(ｱﾝﾋﾞﾙ動力部3)
LOWER ANVIL SECT.(ANVIL DRIVING SECT.-3)
10
FN610074518AA_02-3
