PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 11 ｼｬｯﾀｶﾊﾞｰ部 SHUTTER COVER SECT. 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610074898AA SHUTTER UNIT ｼｬｯﾀﾕﾆｯﾄ 1 A001 N610075531AA FRAME ﾌﾚｰﾑ 1 001 N210093388AA BRACKET ﾌﾞﾗｹｯﾄ 1 002 …
ｼｬｯﾀｶﾊﾞｰ部
SHUTTER COVER SECT.
11
FN610074898AA_01
M115
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
11
ｼｬｯﾀｶﾊﾞｰ部
SHUTTER COVER SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610074898AA
SHUTTER UNIT ｼｬｯﾀﾕﾆｯﾄ
1
A001
N610075531AA
FRAME ﾌﾚｰﾑ
1
001 N210093388AA
BRACKET ﾌﾞﾗｹｯﾄ
1002 N210093389AA
BRACKET ﾌﾞﾗｹｯﾄ
1003 N210093390AB
SHUTTER ｼｬｯﾀ
1
004 N210093391AA
COVER ｶﾊﾞｰ
2
005 N210093392AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
2006 N210093393AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
2007 N210093394AA
GUIDE ｶﾞｲﾄﾞ
2
009 N210093396AA
PIPE ﾊﾟｲﾌﾟ
2010 N210093397AA
BRACKET ﾌﾞﾗｹｯﾄ
2011 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
2
012 N210093698AA
SPRING ｽﾌﾟﾘﾝｸﾞ
CDQSB16-35DC-A96VS
2
N001
N510038381AA
CYLINDER ｼﾘﾝﾀﾞ
KJL06-M5
4
N002
KXF029LAA00
FITTING ﾂｷﾞﾃ
AS1001F-06
2
N003
KXF00YCAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
KJT06-00
2
N004
KXF07SGAA00
JOINT ｼﾞｮｲﾝﾄ
D4NS-1BF S
2
N005
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
2
N006
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
87WASMH15-5
2
N008
N510035906AA
WASHER ﾜｯｼｬ
DDL-940ZZR P0P25LY121
4
N009
N510040884AA
BEARING ﾍﾞｱﾘﾝｸﾞ
CF-403ZE
4
N010
N510023836AA
SPACER ｽﾍﾟｰｻ
M5X12-10.9 A2J (Trival
4
N501
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X6-10.9 A2J (Trivale
4
N502
N510017414AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X75-10.9 A2J (Trival
2
N503
N510017417AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Trival
10
N504
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Trival
4
N505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6-10.9 A2J (Trivale
4
N506
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Trival
4
N507
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X30-10.9 A2J (Trival
4
N508
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
10
N509
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
12
N510
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4
8
N511
N510020099AA
WASHER ﾜｯｼｬ
D-A96V
2V 1 N510043058AA
SENSOR ｾﾝｻ
M116
FN610074898AA_01

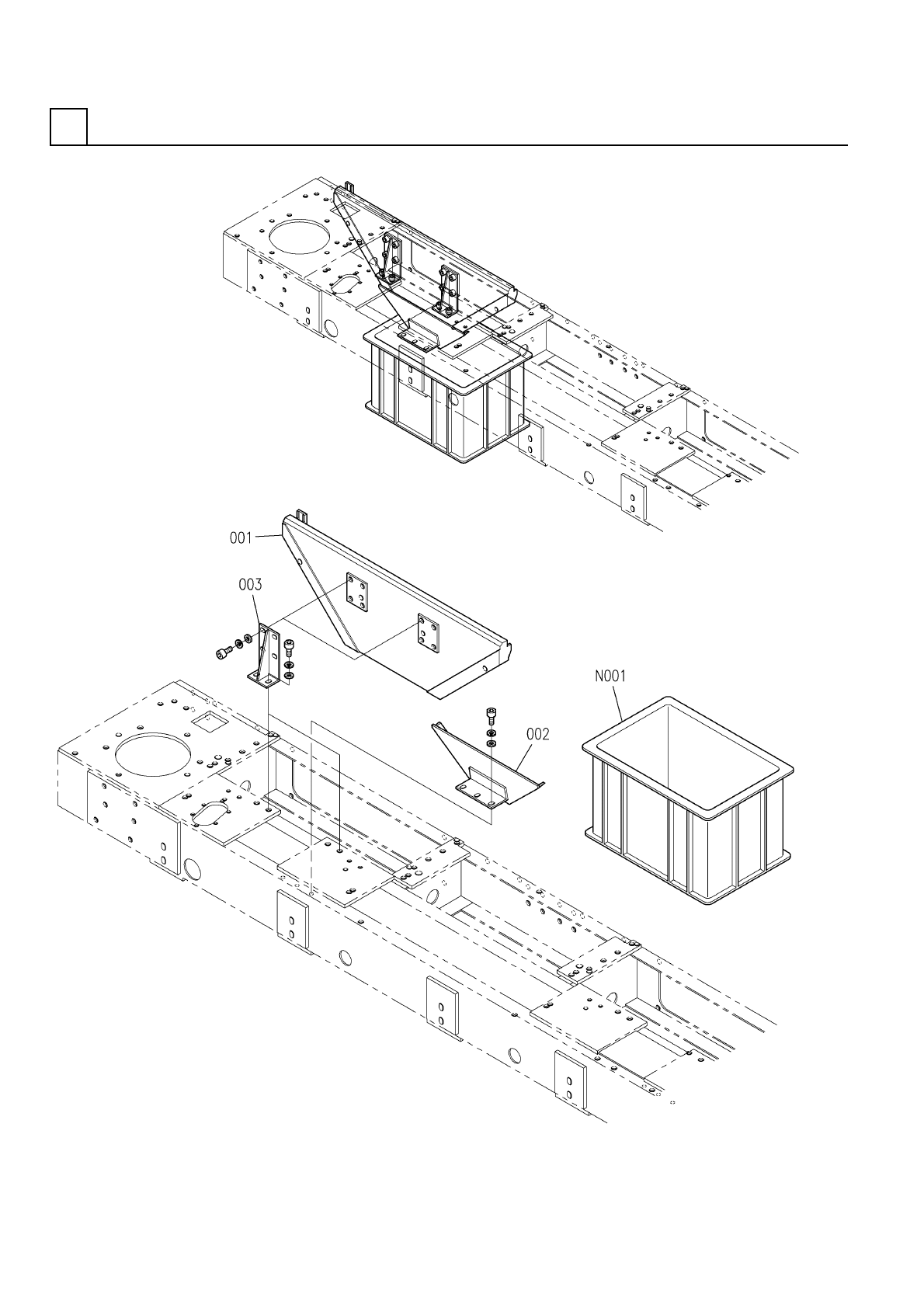

ｶｯﾄ屑集塵部
DUST BOX SECT.
12
FN610077282AA_02
M117
