Mechanical Parts List - 第155页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 17 部品供給 部(ﾃｰﾌﾟﾌｨ ｰﾀﾞ駆動部2) FEEDER CARRIAG E SECT.( TAPE FEED ER DRIVIN G SECT.-2) 部 品 名 品 番 個数 備 考 R 1 R 2 1 004 N210106774AA PLATE ﾌﾟﾚｰﾄ 1 013 X02P07013 PLATE ﾌﾟﾚｰﾄ 1…

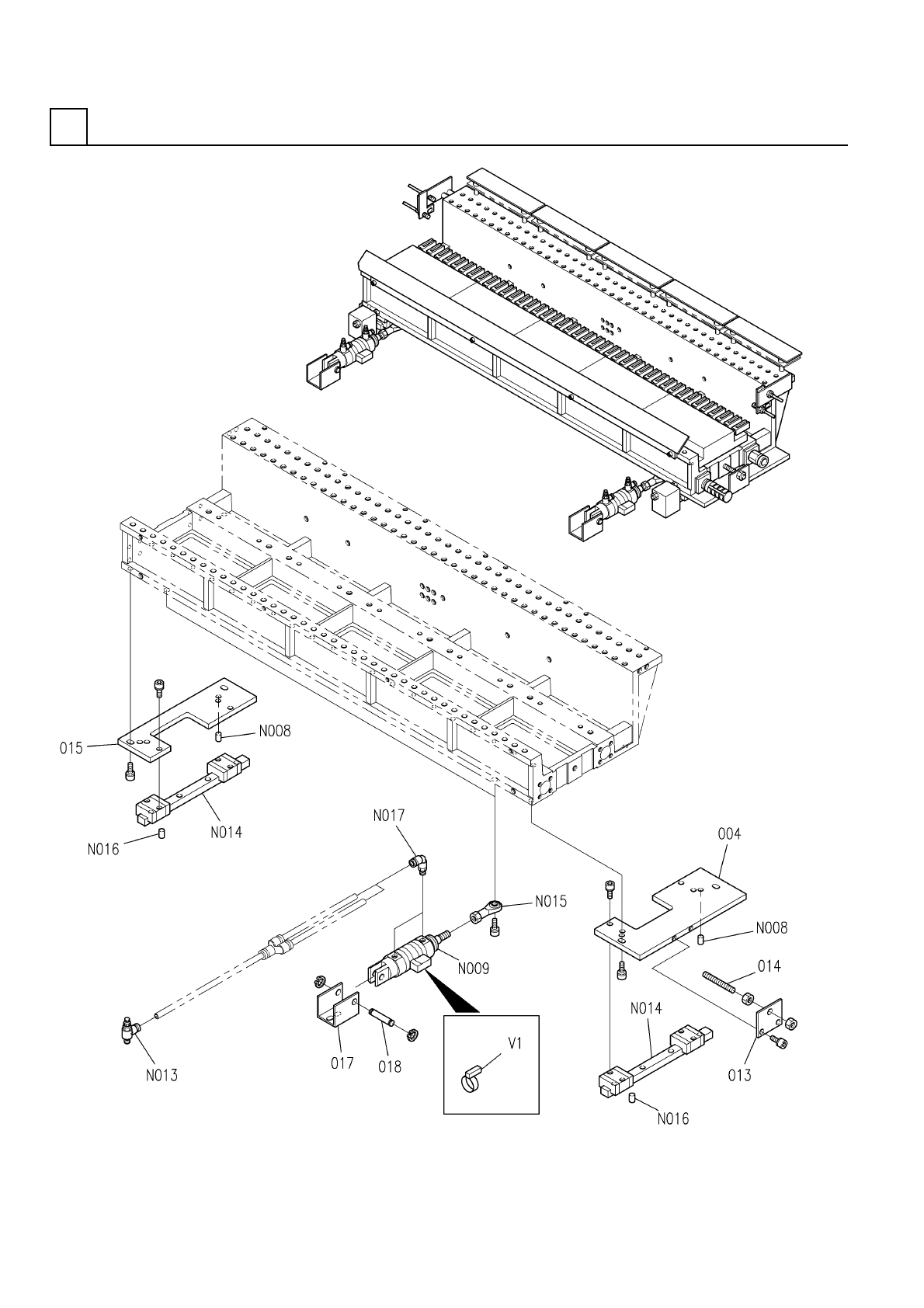

部品供給部(ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部2)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-2)
17
FN610074185AA_03-2
M137
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
17
部品供給部(ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部2)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1004 N210106774AA
PLATE ﾌﾟﾚｰﾄ
1
013 X02P07013
PLATE ﾌﾟﾚｰﾄ
1
014 X01A31029
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
1015 N210106775AA
GUIDE ｶﾞｲﾄﾞ
2017 N210091896AA
BRACKET ﾌﾞﾗｹｯﾄ
2
018 N210091897AA
PIN ﾋﾟﾝ
87MS6-15
4
N008
N510022040AA
PIN ﾋﾟﾝ
CDM2D32-10-H7A1S
2
N009
N401CDM2-J75
CYLINDER ｼﾘﾝﾀﾞ
AS2001F-06
2
N013
KXF068FAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
SR15V2UU+220L-2
2
N014
N513SR15-171
GUIDE ｶﾞｲﾄﾞ
PHS10 P1.25
2
N015
N533PHS1-026
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
87MS6-10
4
N016
N510028981AA
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
KJL06-01S
4
N017
KXF029KAA00
FITTING ﾂｷﾞﾃ
D-H7A1
2
V 1 N401DH7A1
SWITCH ｽｲｯﾁ
M138
FN610074185AA_03-2

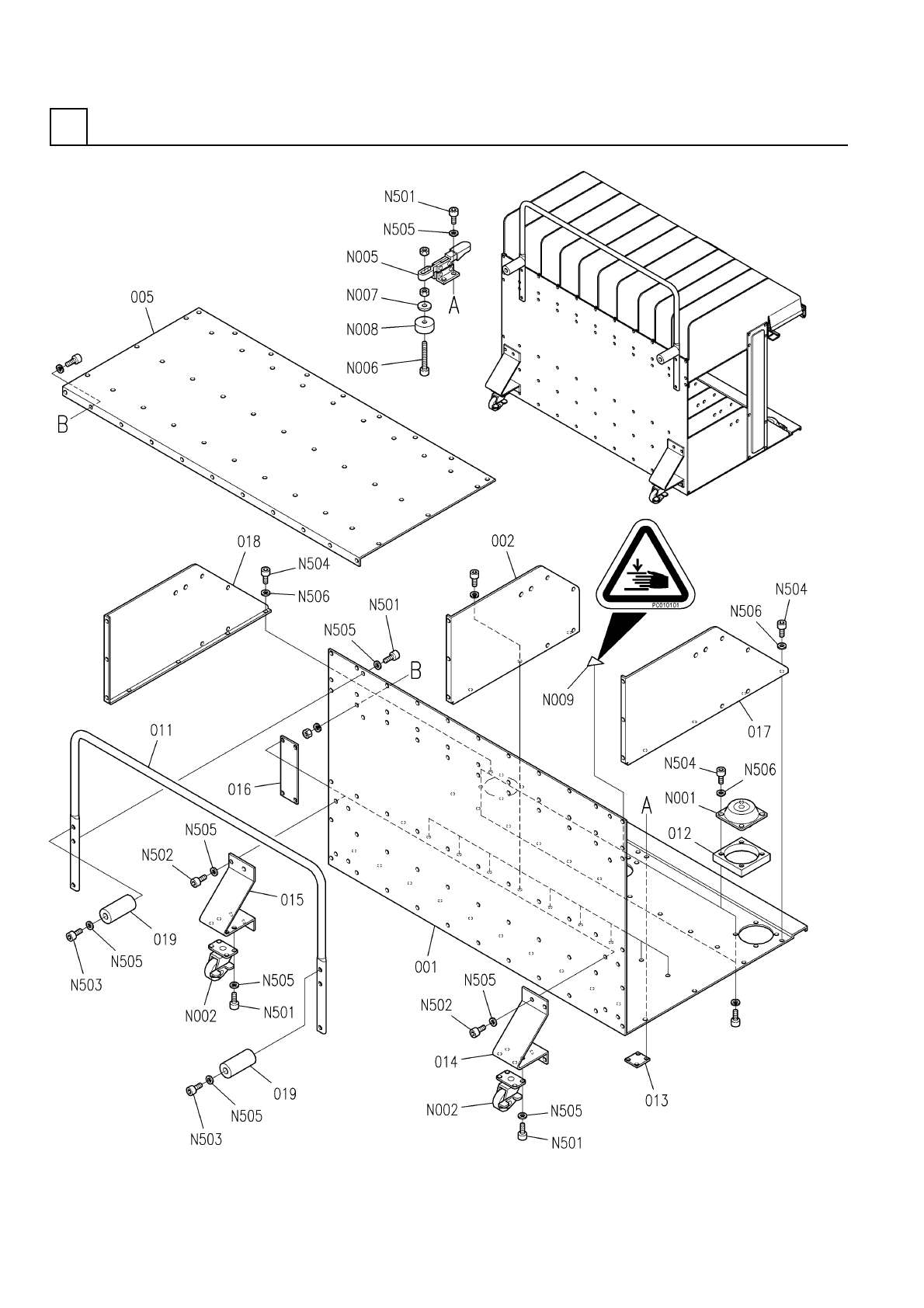

部品ﾎﾞｯｸｽ部(ｷｬｽﾀｰ付き<左>1)
PARTS BOX SECT.(CASTER TYPE<LEFT>-1)
18
FN610080235AA_01-1
M139
